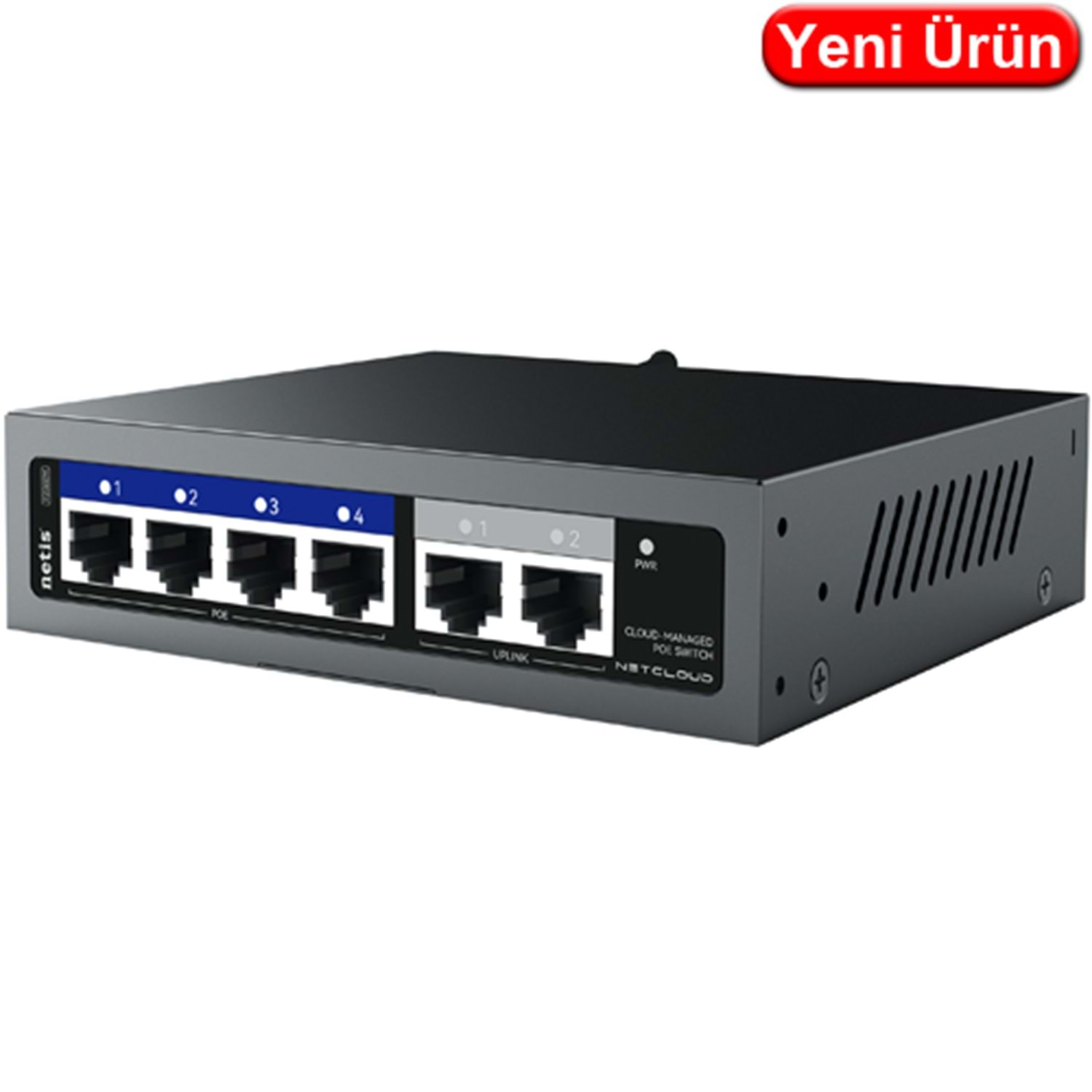

STONET (P206EM) 4 PORT POE 10/100 2 PORT UPLINK 10/100 60W CLOUD YÖNETİLEBİLİR POE SWITCH

Interface

4*10/100Mbps POE Ports(Data/Power)

2*10/100Mbps RJ45 Ports(Data)

Backplane Bandwidth

1.2G

MAC Address Table Size

2K

Power Supply

AC input 100-240V, standard 52W power supply

Cabling Type

100Base-TX: 2 pairs of class 5 (Cat5) or more UTP/STP(≤100m)

10Base-TX: 2 pairs of class 5 (Cat6) or above UTP/STP(≤250m)

Basic Functions

Follow IEEE 802.3 Ethernet IEEE802.3u Fast Ethernet Protocol standards

Support POE IEEE 802. 3af/at compliant Powered Device (PD)

Store-and-forward switching scheme

Compatible with certified non-standard electrified equipment (PD)

Support IEEE802.3X full duplex and Backpressure half duplex flow control

MAC address auto-learning & auto-aging

Standards

IEEE 802.3 10BASE-T Ethernet

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3af/at, Power over Ethernet

IEEE 802.3x Flow Control

Transfer Rate

Ethernet 10Mbps half duplex, 20Mbps full duplex

Fast Ethernet 100Mbps half duplex, 200Mbps full duplex

Gigabit Ethernet 2000Mbs full duplex

Cloud Managed Information

Switch SN information, device model, firmware version, real-time IP, real-time port power, port LINK status, link duplex, uplink and downlink rates

Temperature

Operating temperature:0?~40?

Storage temperature:-20?~70?

Humidity

Operating humidity:10%~90% RH Non-condensing

Storage humidity:5%~90% RH Non-condensing

Dimensional

125mm*115mm*34mm (L*W*H)
