16 GE POE+2GE Uplink POE Switch

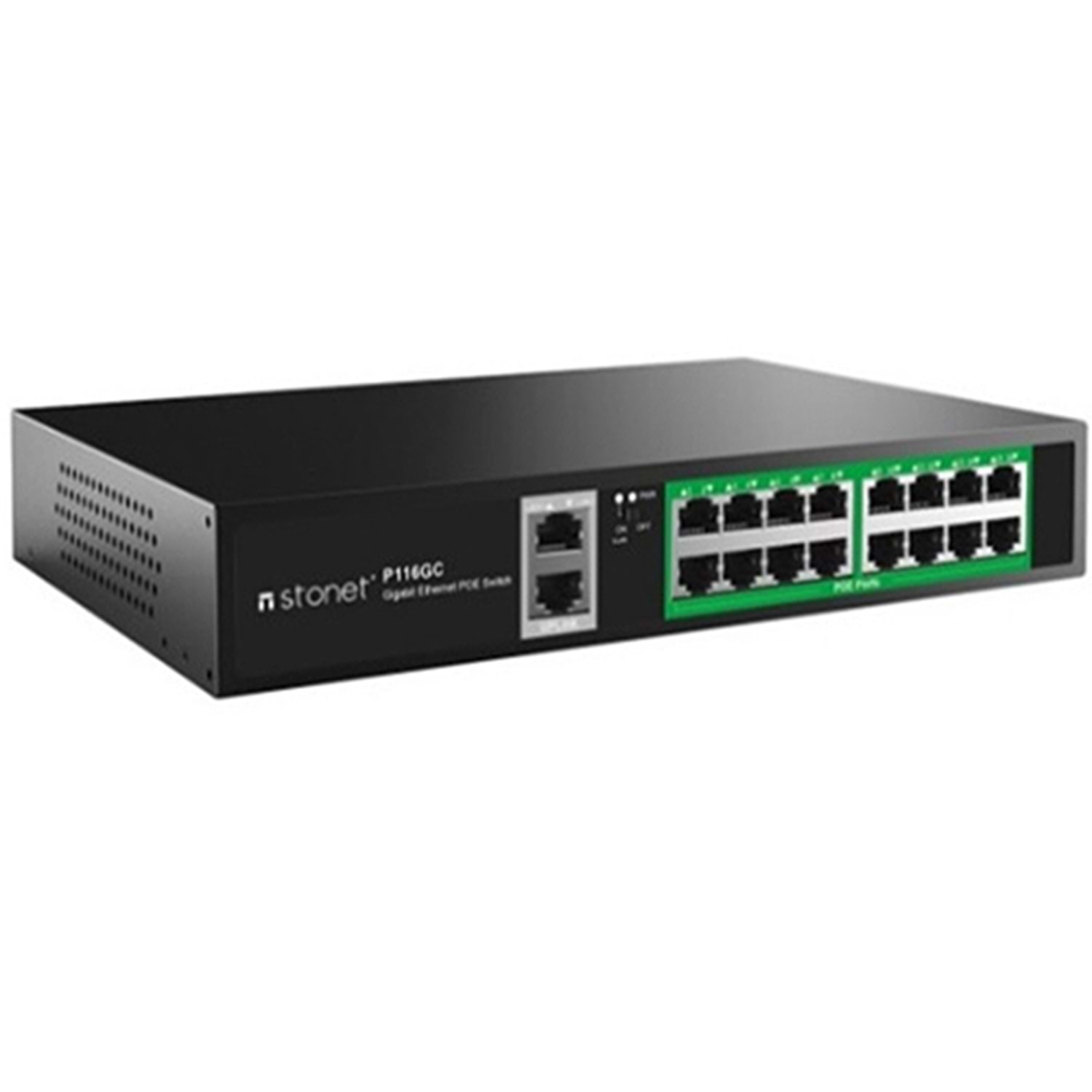

Stonet P116GC is a 18 Ports standard POE switch that provides 16 GE POE ports , 2 Gigabit Up-link ports. Ports 1~16 features POE power supply capability and can be used as Power over Ethernet devices. The power supply port can automatically detect and recognize the powered device that complies with the IEEE 802.3af/at standard and supply power through the network cable. 2 Gigabit uplink ports ensure a smooth transmission for NVR or up-link routers. P116GC is designed for HD CCTV network or high speed wireless network systems.
Supporting 802.3, 802.u Faster Ethernet, IEEE 802.3ab 1000BASE-T;
• Supports POE IEEE 802.3af/at compliant Powered Device (PD)
• Modes: Normal switch mode/Watch dog model(automatically manage CCTV cameras power supply)/VLAN model
• Ports 1~16 features gigabit POE power supply capability and can be used as Power over Ethernet devices;2*10/100/1000Base-T Uplink and 1*1000Base-X SFP.
• Support full duplex based on IEEE802.3x and half duplex based on Backpressure
• Auto MDI/MDIX crossover for all ports
• Support non-blocking wire speed forwarding
• MAC address auto-learning & auto-aging
• Steel case, the total POE power budget of 240W
• Just Plug and Play
| Hardware |
| Interface | 16*10/100M/1000M POE ports (Data /Power) 2*10/100/1000M Uplink RJ45 ports (Data) |
| Basic function | Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Supports POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging |
| Standards | IEEE 802.3 10BASE-T Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
| Mode | Normal switch mode/VLAN&watch dog model |
| Data Transfer Rate | Ethernet : 10Mbps(Half-duplex);20Mbps(Full-duplex) Fast Ethernet :100Mbps(Half-duplex);200Mbps(Full-duplex) Gigabit Ethernet:2000Mbps(Full-duplex) |
| Store & Forwarding | Yes |
| Switching Capacity | 36G |
| MAC Address Table Size | 2K |
| Jumbo Frame | 2048 byte |
| Environment | Operation Temperature:0?~40?
Storage Temperature:-40?~70?
Operation Humidity:10%~90% RH Non-condensing
Storage Humidity:5%~90% RH Non-condensing |
| Power Input POE Standards | Single port maximum power 30W, Whole switch maximum power 240W
Supporting over-current, over-voltage and short-circuit protection
Supporting Soft Start of High Power PD
Support sequential boot-up
Power Supply Pin:12+/36-
AC 110~240V 50/60HZ |
| Cabling type | 1000BASE-T : Cat5e or better UTP(≤100m) 100Base-TX: Cat 5e or better UTP/STP(≤100m) 10Base-TX: Cat 5e or better UTP/STP(≤250m) |
| Dimensions | 280mm*180mm*43mm(L x W x H ) |
