Supports 2K MAC address table, MAC address auto-learning & auto-aging
Green Ethernet technology for effective power saving
LED indicators for simple diagnostics and management
Plug and play, no configuration required
Steel case, with external power supply
Hardware

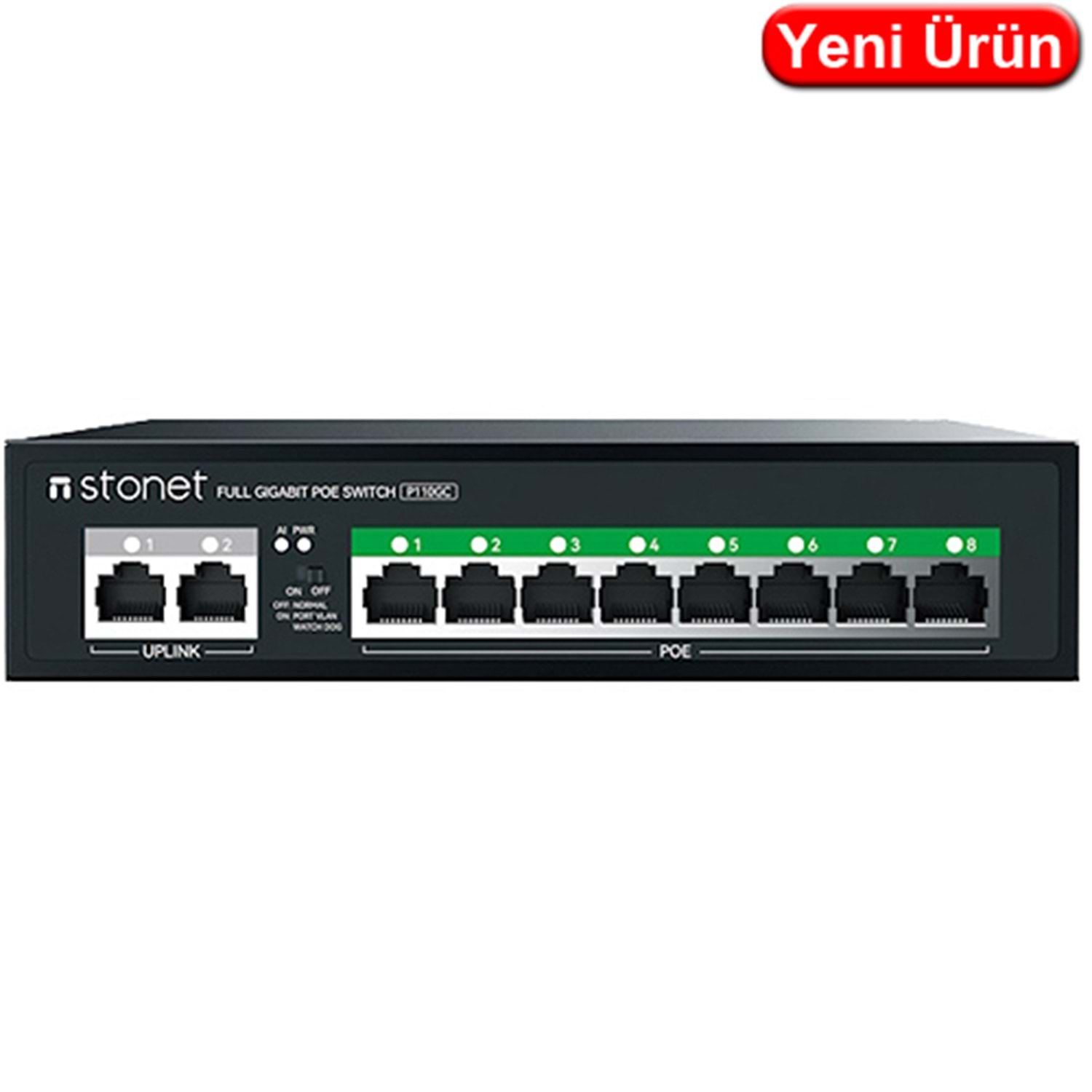

Interface
8 10/100/1000M POE ports (Data /Power)
2 10/100/1000M RJ45 ports (Data)
LED
PWR: Lighting - The device is powered on normally
AI: Lighting - The intelligent mode is enabled
Port: Lighting - Port link is normal
Blinking - Data in transit
Mode
Normal Mode
Port VLAN + Watch Dog Mode
Store & Forwarding
Yes
Switching Capacity
20G
MAC Address Table Size
4K
Jumbo Frame
2048 byte
Power Input POE Standards
Single port maximum power 30W, whole switch maximum power 120W
Support over-current, over-voltage and short-circuit protection
Support Soft Start of High Power PD
Support sequential boot-up
Power Supply Pin:12+/36-
AC 100~240V 50-60HZ
Software
Data Transfer Rate
10Mbps(Half-duplex and Full-duplex)
100Mbps(Half-duplex and Full-duplex)
1000Mbps(Full-duplex)
Basic function
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
Support POE IEEE 802. 3af/at compliant Powered Device (PD)
Store-and-forward switching scheme
Support IEEE802.3X full duplex and Backpressure half duplex
MAC address auto-learning & auto-aging
VLAN port isolation
Watch Dog The AI automatically detects and restarts abnormal devices
Standards
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3af/at, Power over Ethernet
IEEE 802.3x Flow Control
Cabling type
1000Base-TX: Cat 5e or better UTP/STP(≤100m)
100Base-TX: Cat 5e or better UTP/STP(≤100m)
10Base-TX: Cat 5e or better UTP/STP(≤100m)
Others
Environment
Operation Temperature:0?~40?
Storage Temperature:-40?~70?
Operation Humidity:10%~90% RH Non-condensing
Storage Humidity:5%~90% RH Non-condensing
Dimensions
190*140*43mm(L * W * H )
