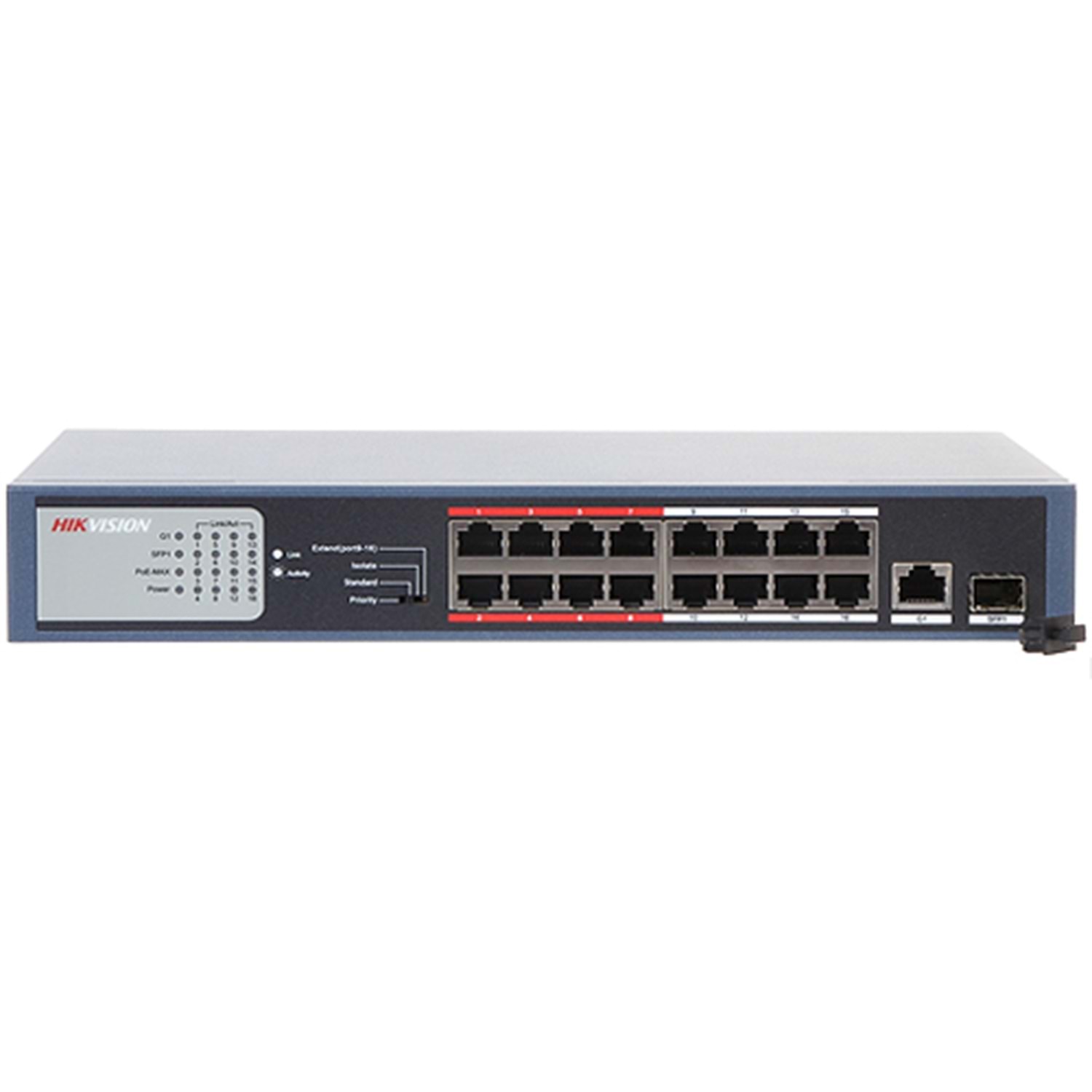

HIKVISION (DS-3E0318P-E/M) 16 PORT 10/100 POE 1xUPLINK +1xSFP 130W L2 POE SWİTCH

16 Port Fast Ethernet Unmanaged POE Switch

• 16 x 10/100 Mbps PoE ports, 1 x 10/100/1000 Mbps uplink ethernet port and 1 x 10/100/1000 Mbps uplink SFP port
• IEEE 802.3 af & at high POE power supply
• Maximum 250 m long distance PoE transmission
• VIP port transmission priority
• Safe and reliable using 6 KV high surge protection
• Supports store-and-forward
• Supports MAC address auto learning and auto aging
• Supports smart cache optimization
• Supports desktop / wall mounting.

General

• Storage Temperature : Storage Temperature: -40 °C ~ 70 °C
• Working Temperature : Operating Temperature: 0 °C ~ 40 °C
• Working Humidity : Operating Humidity: 10% - 90% RH non-condensing
• Storage Humidity : Storage Humidity: 5% - 90% RH non-condensing
• Power Input : 100~240 V AC,50/60 Hz
• Power Consumption : ?150w

Performance

• Switching Capacity : 7.2 Gbps
• Store-and-forward : Supported
• MAC Address Table : 4 k
• MAC Address Learning : Auto-learning/ Auto-aging

PoE

• Working Mode : Priority, Standard, Isolate, Extend
• PoE Standard : IEEE 802.3af, IEEE802.3at
• PoE Powering Mode : Supports 8-pin power supply
• PoE Port : 1-16
• Maximum Total Output : 135 W
• Maximum Port Output : 30 W

Port

• High-priority Port : Port 1 - 8
• 1000 Mbps SFP : 1 independent
• 10/100/1000 Mbps RJ45 : 1
• 10/100 Mbps RJ45 : 16
•

Standard

• Network Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z
•

Network

• Transmission Speed : Ethernet: 10 Mbps (Half Duplex) / 20 Mbps (Full Duplex),Fast Ethernet: 100 Mbps (Half Duplex) / 200 Mbps (Full Duplex),Gigabit Ethernet: 2000 Mbps (Full Duplex)
• Transmission Medium : Ethernet: Cat 3 or better UTP/STP,Fast Ethernet: Cat 5 or better UTP/STP,Gigabit Ethernet: Cat 5 or better UTP/STP,1000 Base-SX: MMF (Multimode optical fiber),1000 Base-LX: MMF (Multimode optical fiber) or SMF (Single Mode Fiber)
• Lightning-proof Ranking : 4 kV

POE

• PoE Powering Mode : Supports 8-pin power supply
• PoE Port : 1-16
