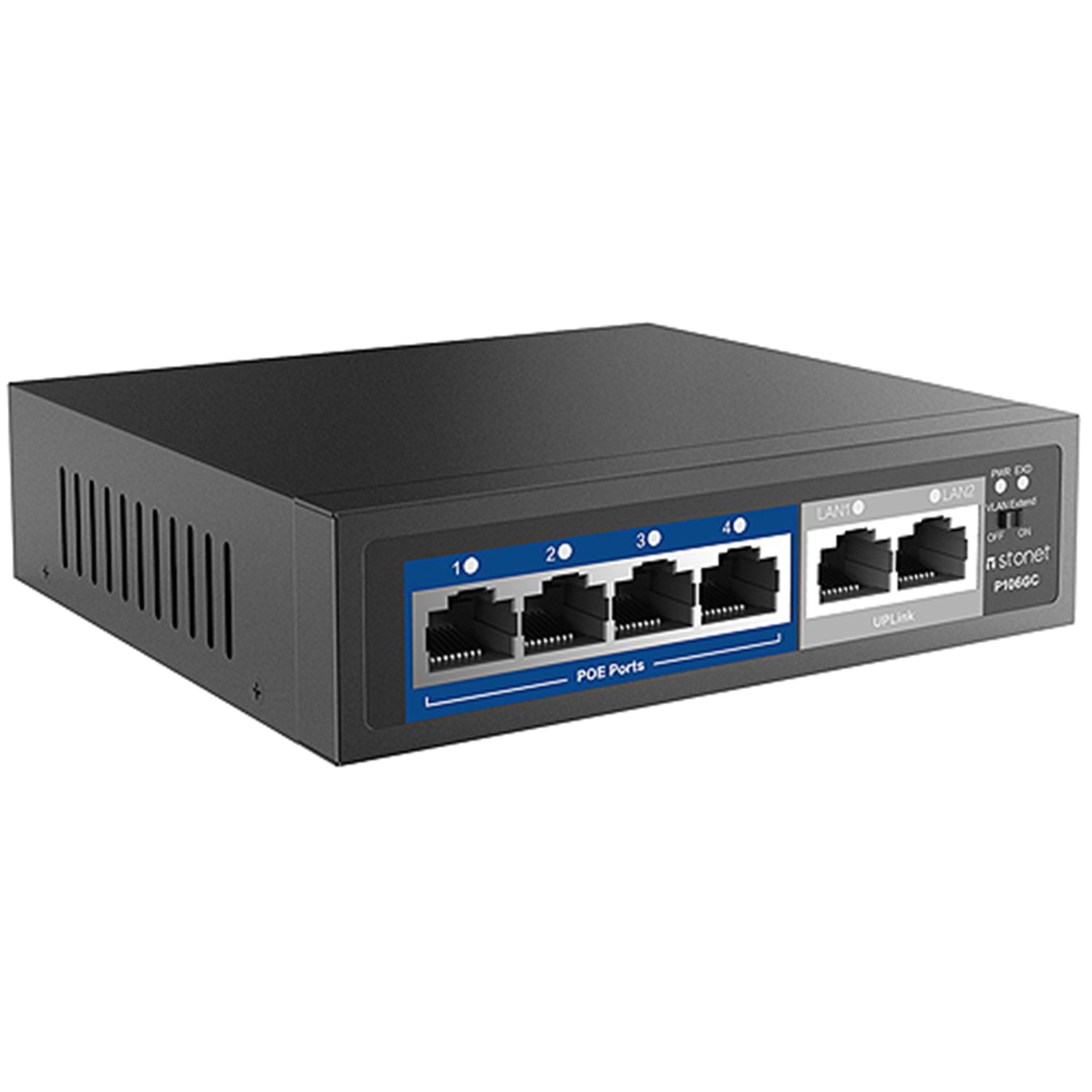

4POE+2RJ45 100M Standard POE Switch
Stonet P106C is a 100M standard POE switch that provides 6*10/100M adaptive RJ45 ports. Ports 1~4 features POE power supply capability and can be used as Power over Ethernet devices. The power supply port can automatically detect and recognize the powered device that complies with the IEEE 802.3af/at standard and supply power through the network cable.Supports two modes: normal switch mode/250M ultra-long transmission. P106C makes it easier for you to deploy wireless access point (AP) and IP terminal network devices using POE technology.
• Supporting 802.3 Ethernet, 802.u Faster Ethernet
• Supports POE IEEE 802.3af/at compliant Powered Device (PD)
• Modes: Normal switch mode/Extended mode(Port1-4:250Metres ultra-longtransmission)
• Ports 1~4 features POE power supply capability and can be used as Power overEthernet devices
• Auto MDI/MDIX crossover for all ports
• Support full duplex based on IEEE802.3x and half duplex based on Backpressure
• Support non-blocking wire speed forwarding
• MAC address auto-learning & auto-aging
• Steel case,the total POE power budget of 65W
• Plug and play
| Hardware |
| Interface | 4*10/100Mbps POE ports(Data/Power) 2*10/100M uplink RJ45 ports (Data) |
| Basic function | Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Supports POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme
Support IEEE802.3X full duplex and Backpressure half duplex
MAC address auto-learning & auto-aging |
| Standards | IEEE 802.3 10BASE-T Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3af/at, Power over Ethernet
IEEE 802.3x Flow Control |
| Mode | Normal switch mode/Extend mode |
| Data Transfer Rate | Etherent:10Mbps(Half-duplex);20Mbps(Full-duplex) Fast Entherent:100Mbps(Half-duplex);200Mbps(Full-duplex) |
| Store & Forwarding | Yes |
| Switching Capacity | 1.2G |
| MAC Address Table Size | 2K |
| Jumbo Frame | 2048 byte |
| Environment | Operation Temperature:0?~40? Storage Temperature:-40?~70? Operation Humidity:10%~90% RH Non-condensing Storage Humidity:5%~90% RH Non-condensing |
| Power Input POE Standards | Single port maximum power 30W, Whole switch maximum power 65W Support over-current,over-voltage and short-circuit protection Support Soft Start of High Power PD Support sequential boot-up Power Supply Pin:12+/36- AC 110~240V 50/60HZ |
| Cabling type | 100Base-TX: Cat 5e or better UTP/STP(≤100m) 10Base-TX: Cat 5e or better UTP/STP(≤250m) |
| Dimensions (L x W x H ) | 124mm*115mm*33mm |
