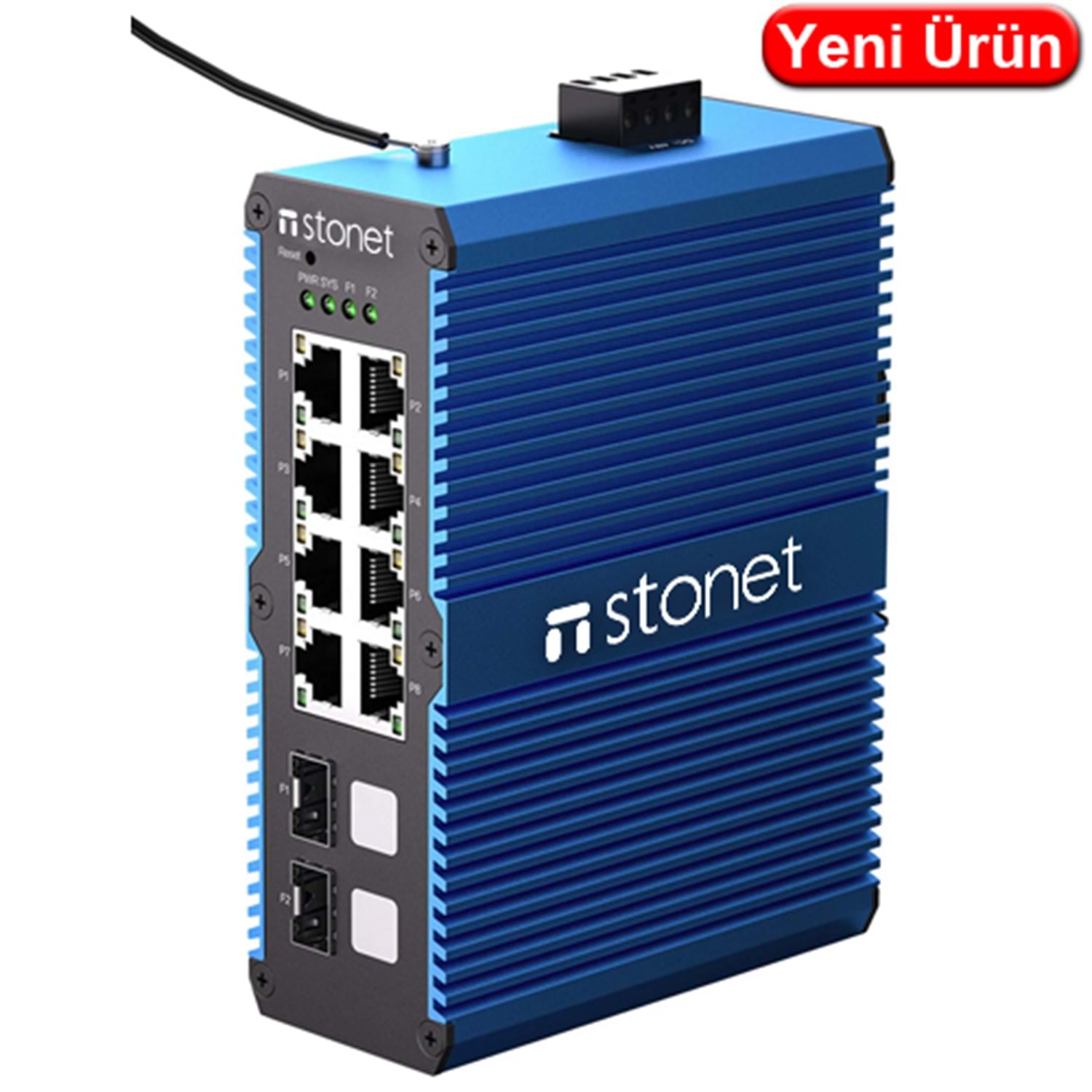

STONET (NIS3008 PRO) 8 PORT 10/100/1000 ENDÜSTRİEL IP40 SWITCH (-40 İLE +85)

Interface

Electrical Ports: 8 10/100/1000Base-Tx (RJ45)

Power

Power Terminal: 5-pin 3.81mm-spacing plug-in terminal block

Input Voltage: 12-36V

Full load power consumption: < 4W

Overload Protection: Support

Reverse Connection Protection: Support

Redundancy Protection: Support

LED

Power LED: PWR

Interface LED: RJ45 (Link&ACT)

Switch Properties

MAC Table: 4K

Switch Capacity: 16Gbps

Packet Forwarding Rate: 11.904Mpps

Switching Delay: <10us

Physical

Housing: Metal, Fanless

Protection Class: IP40

Dimensions: 140mm x 90mm x 40mm(W×D×H)

Weight: 0.5kg

Mounting: DIN-Rail

EMI

FCC CFR47 Part 15, EN55022/CISPR22, Class A

EMS

IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air)

IEC61000-4-3 (RS): 10V/m (80MHz-2GHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Machinery

IEC60068-2-6 (Vibration)

IEC60068-2-27 (Shock)

IEC60068-2-32 (Free Fall)

Standards

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-Tx

IEEE 802.3z 1000Base-T

Environment

Operating Temperature: -40 to 85°C

Storage Temperature: -45 to 85°C

Ambient Relative Humidity: 5 to 95% (non-condensing)

Approvals

CE, FCC, RoHS

MTBF

360,000 hrs
