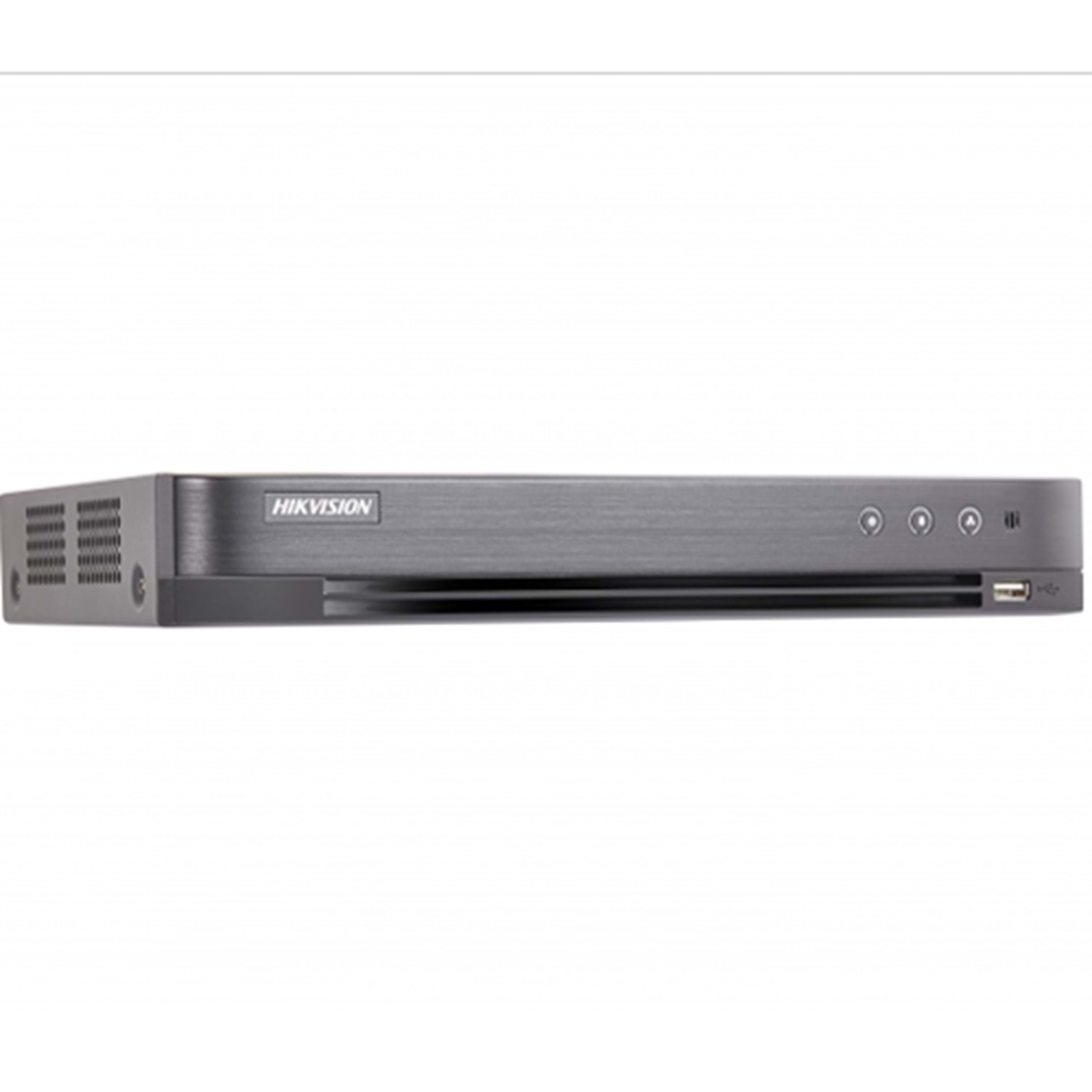

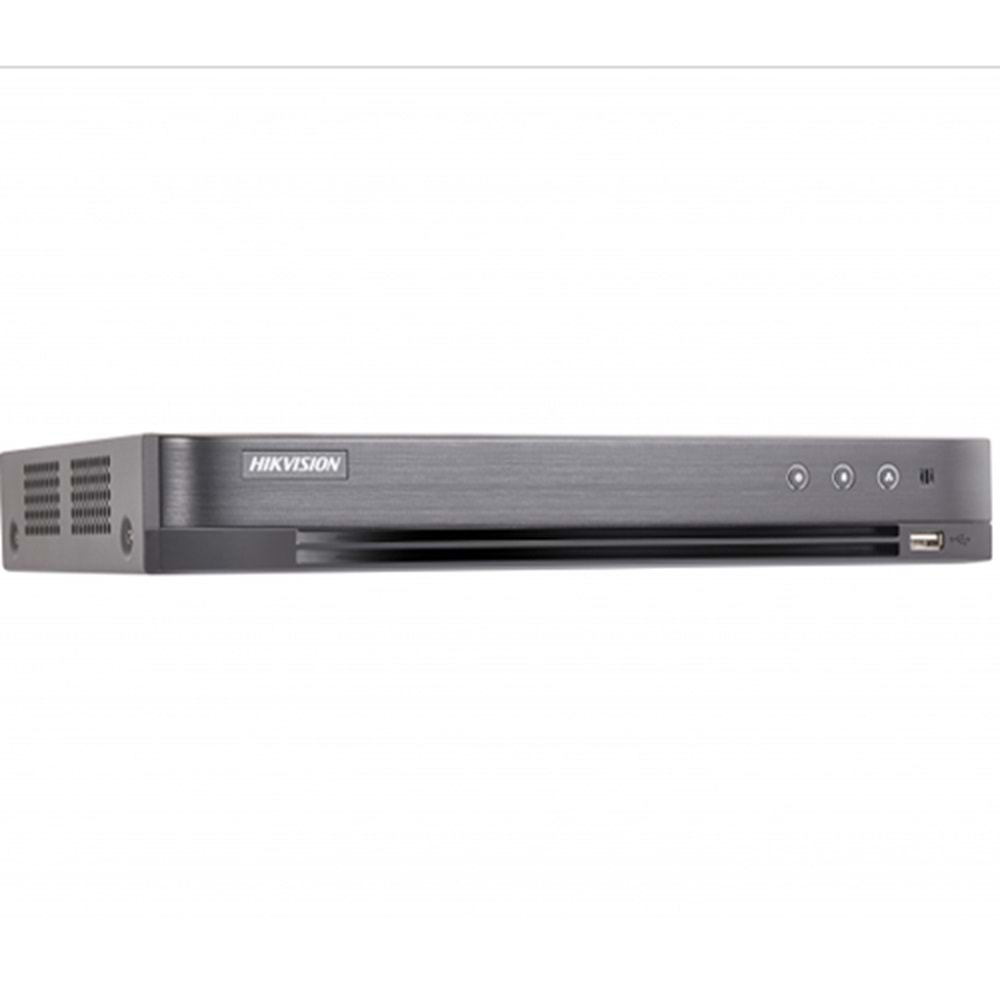

HIKVISION (iDS-7216HUHI-M2/S) 16 KANAL 1xSES 1xHDMI 1xVGA 2x10TB HD-TVI HIBRIT KAYIT CİHAZI H265+

Henüz Değerlendirilmemiş

Stok Kodu

: Y5311212

Stok Miktarı

: 1 ADET

Whatsapp ile Sipariş

16-ch 5 MP 1U H.265 AcuSense DVR

Deep learning-based motion detection 2.0 for all analog channels
Deep learning-based perimeter protection
Efficient H.265 pro+ compression technology
Up to 8 MP@8 fps/5 MP@12 fps encoding capability
HDTVI/AHD/CVI/CVBS/IP video inputs
Up to 32-ch IP camera inputs (up to 8 MP)

Motion Detection : 2.0
Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

it can classify human and vehicle, and extremely reduce false alarms caused by objects

like leaves and lights;

Quick search by object or event type is supported;

Perimeter Protection
Human/Vehicle Analysis : Up to 4-ch

Facial Detection
Facial Detection and Capture : Face picture detection, face picture search

Recording
Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution : 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate :
Main stream:

8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate : 32 Kbps to 10 Mbps
Dual-stream : Support
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bitrate : 64 Kbps

Video and Audio
IP Video Input :
8-ch (up to 24-ch)

Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input : 16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output :
1-ch, 4K (3840 × 2160)/30Hz,

2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz

HDMI/VGA simultaneous output
VGA Output :
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDMI/VGA simultaneous output
CVBS Input : PAL/NTSC
CVBS Output :
1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback : 16-ch
HDTVI Input : 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input : 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input : 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Audio Input :
1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ)

16-ch via coaxial cable
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Network
Total Bandwidth : 128Mbps
Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection : 128
Network Interface :
1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Wi-Fi : Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface
SATA : 2 SATA interfaces
Capacity : Up to 10 TB capacity for each disk
Serial Interface : RS-485 (half-duplex)
USB Interface :
Front panel: 1 × USB 2.0

Rear panel: 1 × USB 3.0
Alarm In/Out : N/A (optional to support)

General
Power Supply : 12 VDC, 5 A
Consumption : ≤ 19 W
Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity : 10% to 90%
Dimension (W × D × H) : 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight : ≤ 2.1 kg (4.6 lb)
