DAHUA (XVR1B16-I) 16 KANAL 1080N 1x6TB HDD VE SSD DESTEKLER 1XHDMI 1XVGA 2XUSB 1XRJ45 XVR KAYIT

Henüz Değerlendirilmemiş

Stok Kodu

: Y7207024

Stok Miktarı

: 20+ ADET

Whatsapp ile Sipariş

16 Kanal H.265+ AI XVR (1x6TB SATA)Maks. 2 MP'ye kadar HDCVI kamera desteklerTek/Çoklu Kanal Canlı İzleme Performansı: 1080N/720P gerçek-zamanlı canlı izlemeKayıt Performansı: İlk kanalda 1080N @25/30fps+Diğer Kanallarda 1080N @15fpsHDCVI/AHD/TVI/CVBS/IP video girişlerini desteklerAkıllı Hareket Algılama 8 kanalda(İnsan ve Araç sınıflandırması)IP Kamera Girişi: 16+2, 6MP'ye kadar, 64Mbps Bant GenişliğiSes Giriş/Çıkış: 1/1 ayrıca Dahili Mikrofonlu HDCVI Kamera ile 16 Kanalda Ses1 HDMI, 1 VGA, 2 USB, 1 RJ45 port(10/100Mbps), P2P(Buluttan İzleme)

XVR1B16-I

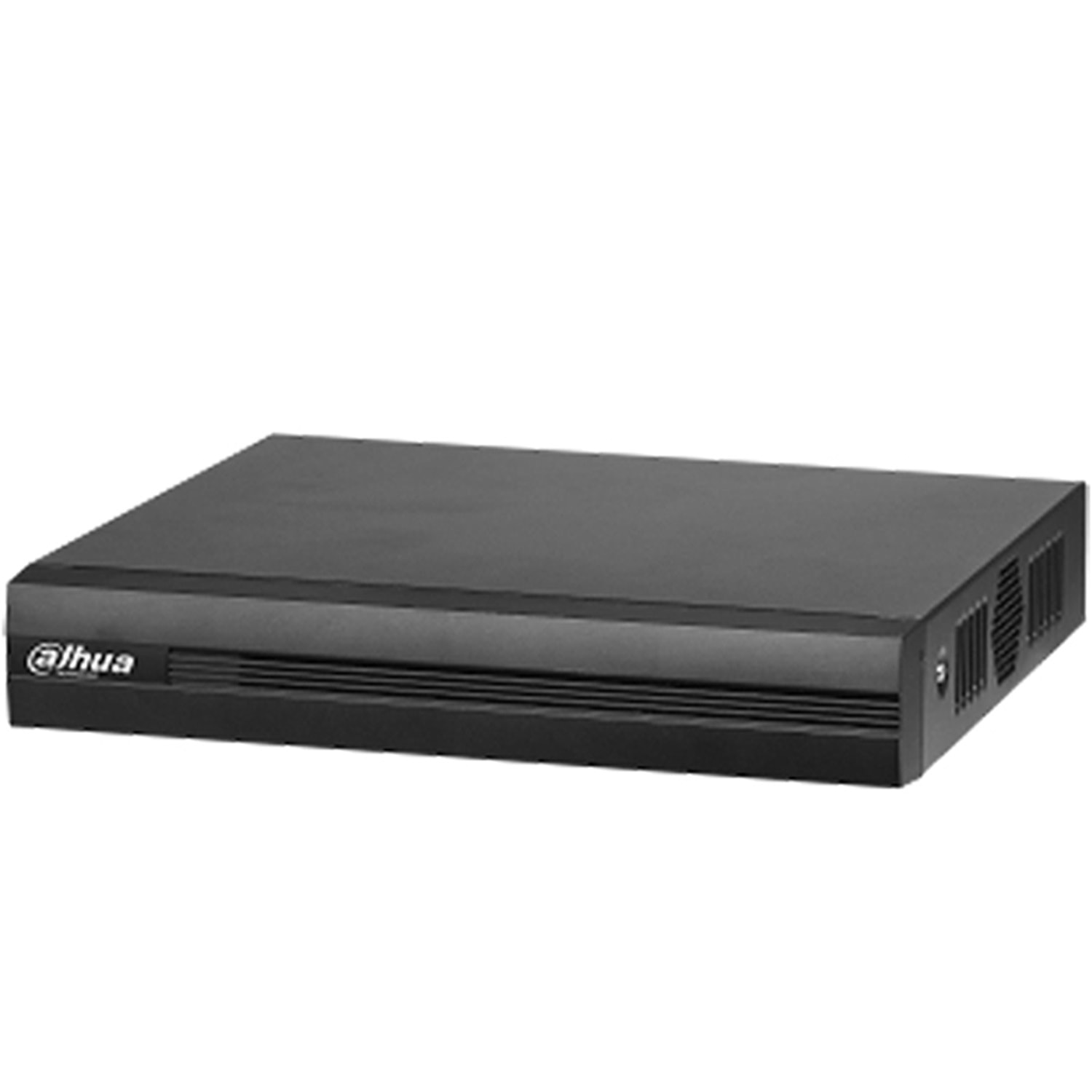

16 Channel Penta-brid 1080N/720p Compact 1U 1HDD WizSense Digital Video Recorder

> H.265+/H.265 dual-stream video compression
> Supports Full-channel AI-Coding
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 18 channels IP camera inputs, each channel up to 6MP; Max 64 Mbps Incoming Bandwidth
> Long transmission distance over coax cable
> Up to 8 channels video stream ( analog channel ) SMD Plus

System

Main Processor

Embedded processor

Operating System

Embedded linux

SMD Plus

Performance

8 channels

AI Search

Search by target classification (Human, Vehicle)

Video and Audio

Analog Camera Input

16 channels, BNC

HDCVI Camera

1080p@ 25/30 fps, 720p@ 25/30 fps

AHD Camera

1080p@ 25/30 fps, 720p@ 25/30 fps

TVI Camera

1080p@ 25/30 fps, 720p@ 25/30 fps

CVBS Camera

PAL/NTSC

IP Camera Input

16+2 channels, each channel up to 6MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Video Compression

AI Coding/H.265+/H.265/H.264+/H.264

Resolution

1080N; 720p; 960H; D1; HD1; BCIF; CIF; QCIF

Record Rate

Main Stream:

the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/HD1/BCIF/CIF/QCIF (1 fps–25/30 fps)

Sub stream:

CIF/QCIF (1 fps–7 fps)

Video Bit Rate

32 kbps–4096 kbps per channel

Record Mode

Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop

Record Interval

1 min–60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec

Audio Compression

G.711A; G.711U; PCM

Audio Sample Rate

8 KHz, 16 bit per channel

Audio Bit Rate

64 kbps per channel

Display

Interface

1 HDMI; 1 VGA

Resolution

1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9/16

When IP extension mode enabled: 1/4/8/9/16

OSD

Camera title; Time; Video loss; Camera lock; Motion detection; Recording

Network

Interface

1 RJ-45 Port (100 MB)

Network Function

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone; iPad; Android

Interoperability

ONVIF 16.12, CGI Conformant

Video Detection and Alarm

Trigger Events

Recording; PTZ; Tour; Video Push; Email; FTP; Snapshot; Buzzer and Screen Tips

Video Detection

Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis

Alarm input

N/A

Relay Output

N/A

Playback and Backup

Playback

1/4/9/16

Search Mode

Time/Date, Alarm, MD and Exact Search (accurate to second)

Playback Function

Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File; Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom

Backup Mode

USB Device/Network

Storage

Internal HDD

1 SATA port, up to 6 TB capacity

eSATA

N/A

Auxiliary Interface

USB

2 USB ports (USB 2.0)

RS232

N/A

RS485

N/A

Electrical

Power Supply

DC 12V/2A

Power Consumption

(Without HDD)

< 10W

Construction

Dimensions

Compact 1U, 260.0 mm × 231.4 mm × 47.6 mm

(10.24'' × 9.11'' × 1.87'')

Net Weight

(without HDD)

0.89 kg (1.96 lb)

Gross Weight

1.42 kg (3.13 lb)

Installation

Desktop installation

Environmental

Operating Conditions

-10°C to +45°C (+14°F to +113°F), 10%–90% (RH)

Storage Conditions

-20°C to +70°C (-4°F to +158°F), 0%–90% (RH)

Third-party Support

Dahua, Arecont Vision, AXIS; Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1

CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024

UL: UL 60950-1
