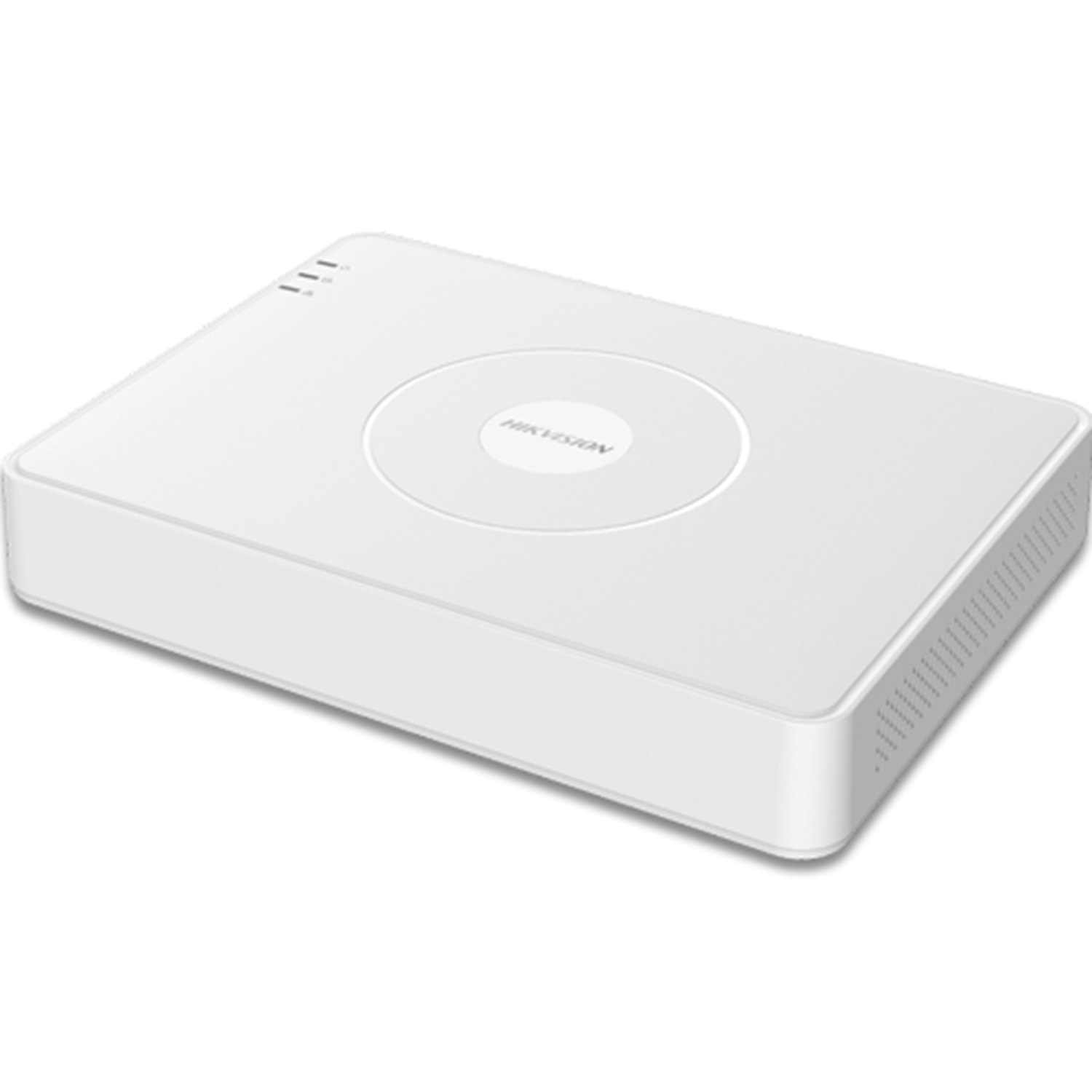

HIKVISION (DS-7116HQHI-K1) 16 KANAL 1xSES 1xHDMI 1xSATA 6TB 1080P HD-TVI KAYIT CİHAZI 3MP Lite H265+

Henüz Değerlendirilmemiş

Stok Kodu

: Y5311178

Stok Miktarı

: 2 ADET

Whatsapp ile Sipariş

16-ch 1080p Mini 1U H.265 DVR

8 channels and 1 HDD mini size DVR
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 24 network cameras can be connected

Recording
Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution :
When 1080p Lite mode is not enabled: 4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled: 4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Frame Rate :
Main stream: When 1080p Lite mode is not enabled:

For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode is enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate : 32 Kbps to 6 Mbps
Dual-stream : Support
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bitrate : 64 Kbps

Video and Audio
IP Video Input : 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps
Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input :
16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Incoming Bandwidth : 96 Mbps
HDTVI Input :
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

*: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
AHD Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input : 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS Input : Support
HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input :
1-ch, RCA (2.0 Vp-p, 1 KΩ)

16-ch via coaxial cable
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback : 16-ch

Network
Remote Connection : 128
Total Bandwidth : 128 Mbps
Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface : 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface
SATA : 1 SATA interface
Capacity : Up to 6 TB capacity for each disk
USB Interface : Real panel: 2 × USB 2.0
Alarm In/Out : N/A

General
Power Supply : 12 VDC, 1.9 A
Consumption : ≤ 15 W
Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity : 10% to 90%
Dimension : (W × D × H)285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) ≤ 1 kg (2.2 lb)
