HIKVISION (İDS-7216HQHI-M1/S) 16 KANAL 2xSES 1xHDMI 1xVGA 1x10TB 8xIP HD-TVI HIBRIT AKILLI KAYIT H26

Henüz Değerlendirilmemiş

Stok Kodu

: Y5311208

Stok Miktarı

: 4 ADET

Whatsapp ile Sipariş

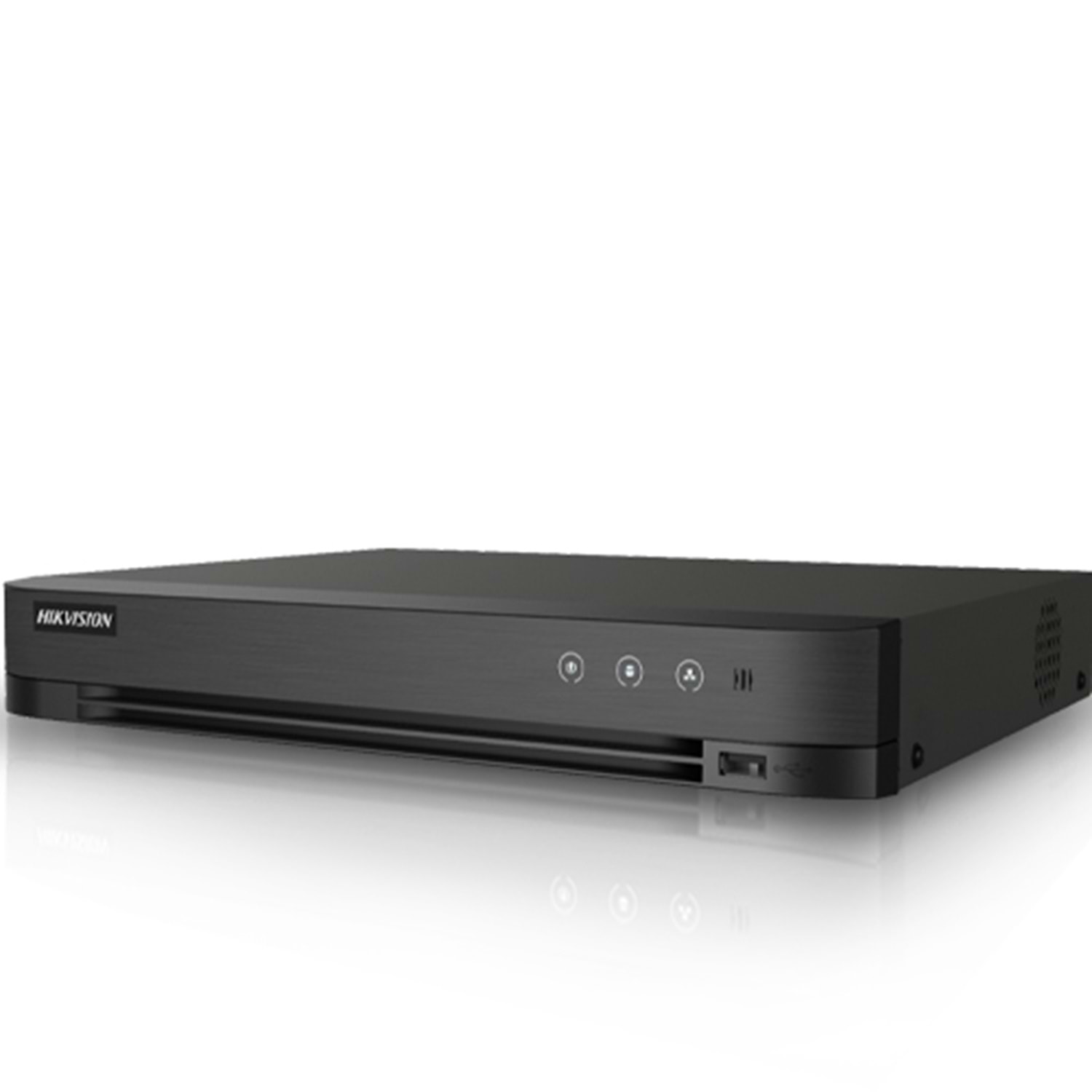

16-ch 1080p 1U H.265 AcuSense DVR

16 channels and 1 HDD 1U AcuSense DVR
Provides detailed information with face detection
False alarm reduction through human and vehicle target classification based on deep learning
Efficient H.265 pro+ compression technology
Encoding ability up to 1080p @ 15 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 24 network cameras can be connected.

Recording
Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution : 4MP
Video Bitrate : 32 Kbps to 6 Mbps
Dual-stream : Support
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bitrate : 64 Kbps

Video and Audio
IP Video Input : 8-ch (up to 24-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input : 16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output : Yes
CVBS Input : PAL/NTSC
CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback : 16-ch
AHD Input : 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
HDCVI Input : 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Audio Input : 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Decoding
Recording Resolution
Main stream:

When 1080p lite mode not enabled:

For 4 MP stream access:

4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

For 1080p stream access:

1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

When 1080p Lite mode enabled:

4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

Network
Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection : 128
Network Interface : 1×Gigabit

Auxiliary Interface
SATA : 1 SATA interface
Capacity : Up to 10 TB capacity for each disk
Serial Interface : RS-485 (half-duplex)
USB Interface
1 × USB 2.0;

1 × USB 3.0
Alarm In/Out : No

General
Power Supply : 12 VDC
Consumption : ≤ 24 W
Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity : ≤ 24 W
Chassis : 1U(315mm)
Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
≤ 2 kg (4.4 lb)
