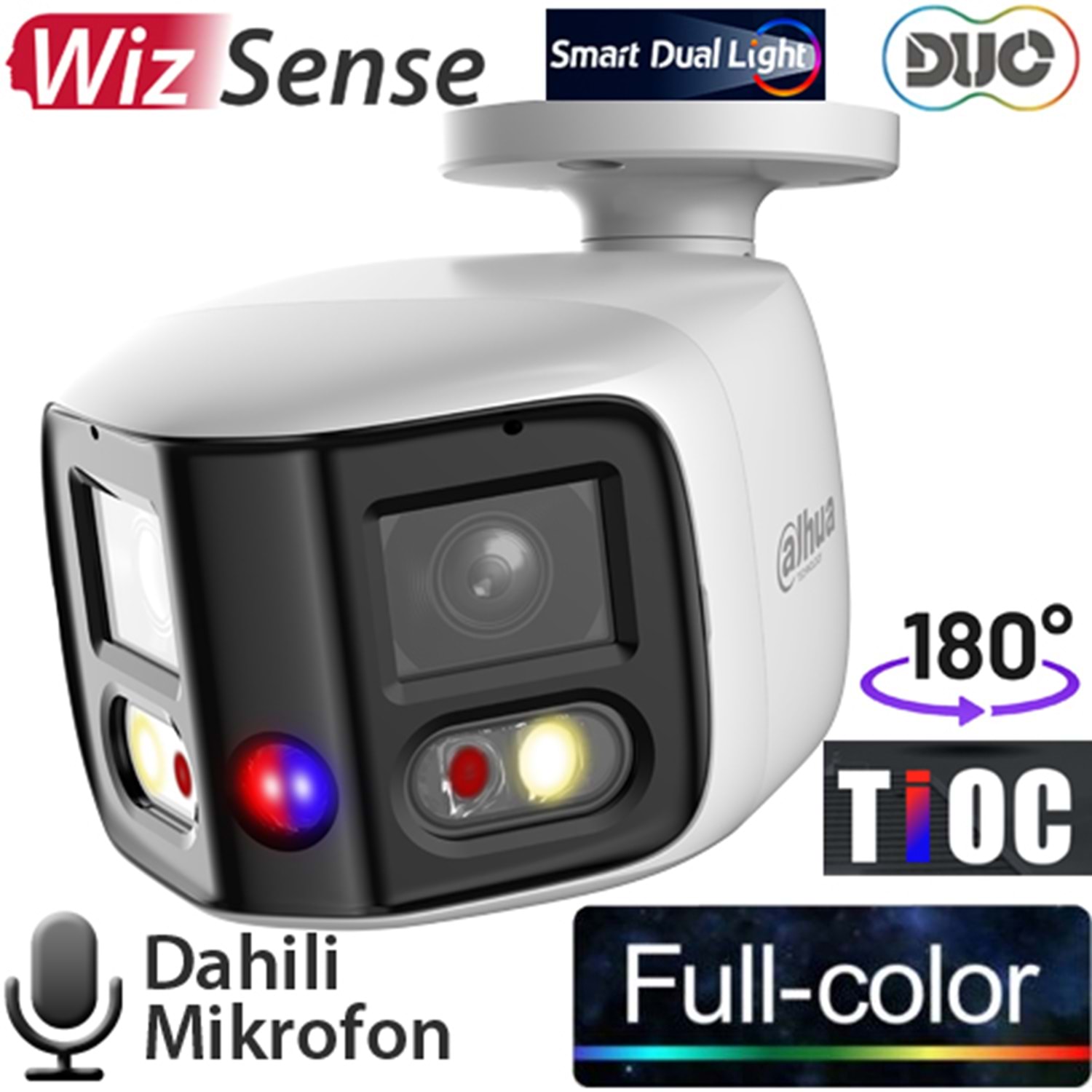

DAHUA (IPC-PFW3849S-A180-AS-PV) 2x4MP DAH.MİK. TİOC DUO SMART DUAL LED FULL COLOR BULLET KAMERA 25MT

Camera

Image Sensor

Dual 1/2.7" CMOS

Max. Resolution

4096 (H) × 1860 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.4 (Color, 30 IRE)

0.0005 lux@F1.4 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 25 m (82.02 ft) (IR LED)

Up to 20 m (65.62 ft) (Warm light)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (IR LED); 2 (Warm light)

Angle Adjustment

Pan: 0°–360°

Tilt: 0°–77°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Field of View

Horizontal: 180°; Vertical: 86°

Max. Aperture

F1.4

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

50.6 m (166.01 ft)

20.2 m

(66.27 ft)

10.1 m

(33.14 ft)

5.1 m

(16.73 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD 4.0

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

EPTZ

Enlarge and track the targets of intelligent alarms

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+;

Smart H.264+

AI Coding

AI H.265;

AI H.264

Video Frame Rate

Main stream: 4096 × 1860@(1–20 fps )

Sub stream: 1200 × 530@(1–20 fps)

Third stream: 1920 × 860@(1–20 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530; 1920 × 860; 960 × 432

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 6 kbps –16384 kbps

H.265: 6 kbps –16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Privacy Masking

4 areas

Defog

Yes

Audio

Built-in MIC

Yes, built-in dual Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene chaging; audio detection; voltage detection; external alrm; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE: IE 8 and later
Chrome
Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3 V–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC (±30%); PoE (802.3af)

Power Consumption

Basic: 3.4 W (12 VDC); 3.8 W (PoE)

Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 9 W (12 VDC); 10.3 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing

Metal

Product Dimensions

183.1 mm × 99.0 mm × 78.0 mm (7.20" × 3.90" × 3.07") (L × W × H)

Net Weight

695 g (1.53 lb)

Gross Weight

870 g (1.92 lb)
