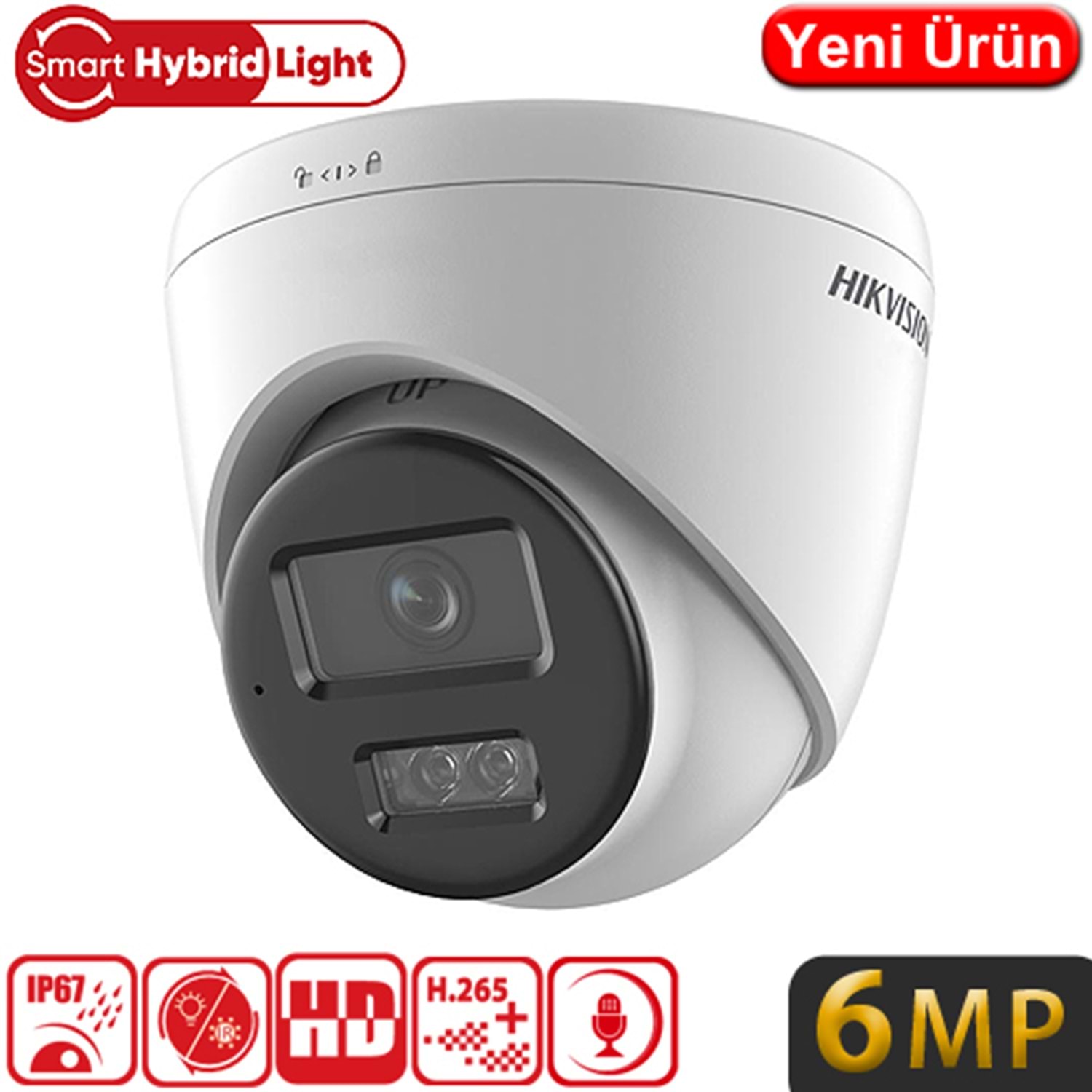

HIKVISION (DS-2CD1363G2-LIUF) 6MP 2,8MM SESLİ SMART HYBRID LIGHT IP POE DOME KAM IP67 30MT

Henüz Değerlendirilmemiş

Stok Kodu

: E34809

Stok Miktarı

: 19 ADET

Markası

: HIKVISION

Whatsapp ile Sipariş

6 MP Smart Hybrid Light Fixed Turret Network Camera

High quality imaging with 6 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Water and dust resistant (IP67)
Efficient H.265+ compression technology
Support on-board storage up to 256 GB (SD card slot) (Optional)

Camera
Image Sensor : 1/2.4" Progressive Scan CMOS
Max. Resolution : 3200 × 1800
Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time : 1/3 s to 1/100,000 s
Day & Night : IR cut filter
Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens
Lens Type : Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV :
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
Lens Mount : M12
Iris Type : Fixed
Aperture : F1.6

DORI
DORI :
2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m

4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m

Illuminator
Supplement Light Type : IR,White Light
Supplement Light Range : Up to 30 m
Smart Supplement Light : Yes
IR Wavelength : 850 nm

Video
Main Stream :
50 Hz:

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz:

20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream :
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression :
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate : 32 Kbps to 16 Mbps
H.264 Type : Baseline Profile,Main Profile,High Profile
H.265 Type : Main Profile
Bit Rate Control : CBR,VBR
Region of Interest (ROI) : 1 fixed region for main stream

Audio
Audio Type : Mono sound
Environment Noise Filtering : Yes
Audio Sampling Rate : 8 kHz/16 kHz
Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate : 64 Kbps (G.711ulaw)/64 Kbps (G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Security : Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View : Up to 6 channels
API : Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host :
Up to 32 users

3 user levels: administrator, operator, and user
Client : iVMS-4200,Hik-Connect
Web Browser :
Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR) : 120 dB
SNR : ≥ 52 dB
Day/Night Switch : Day,Night,Auto,Schedule
Image Enhancement : BLC,HLC,3D DNR
Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask : 4 programmable polygon privacy masks

Interface
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage : -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-in Microphone : Yes
Reset Key : -F: Yes

Event
Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage : Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General
Power :
12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material : Metal & Plastic
Dimension : Ø110 mm × 93 mm (Ø4.33" × 3.66")
Package Dimension : 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Weight : Approx. 340 g (0.7 lb.)
With Package Weight : Approx. 560 g (1.2 lb.)
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language : English, Ukrainian
General Function : Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval
EMC :

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7
Safety :
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment :
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
Protection : IP67: IEC 60529-2013
