UBNT (ES-8-150W) 8 PORT GIGABIT POE 24V-48V 2 PORT SFP SWITCH -YÖNETİLEBİLİR

EdgeSwitch 8 150W

ES-8-150W

The EdgeSwitch ES-8-150W is a fully managed, high performance PoE+ Gigabit switch with two SFP ports, and 10 Gbps total, non-blocking line rate. In addition to the internal 150W AC/DC PSU, the ES-8-150W features a DC input for optional stand-alone DC powering or redundant power backup. Power and connect your PoE devices with the flexibility of both auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE.

Managed PoE+ Gigabit Switch with SFP

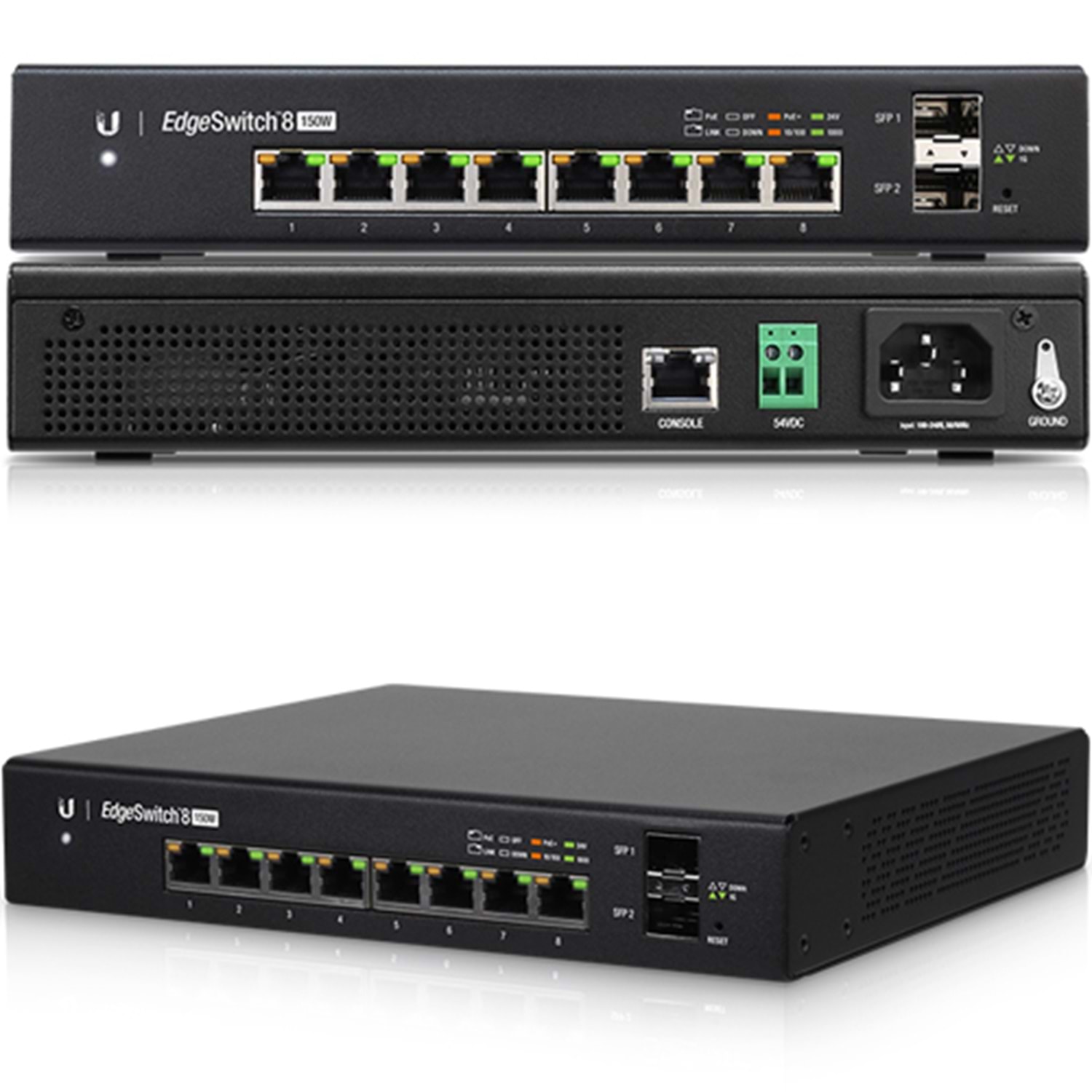

The fanless EdgeSwitch^® 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.

Model: ES-8-150W

Gigabit Connectivity

The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.

Convenient PoE+ Support

Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.

Optical Fiber Backhaul

The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.

Powerful Performance

The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.

Switching Capacity

The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Advanced UI

The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.

All Models Comparison

Model Comparison

	ES-8-150W	ES-16-150W
Total Non-Blocking Throughput	10 Gbps	18 Gbps
Gigabit RJ45 Ports	8	16
SFP+ Ports	N/A	N/A
SFP Ports	2	2
Max. Power Consumption	150W	150W
PoE	PoE+ and 24V Passive PoE	PoE+ and 24V Passive PoE
