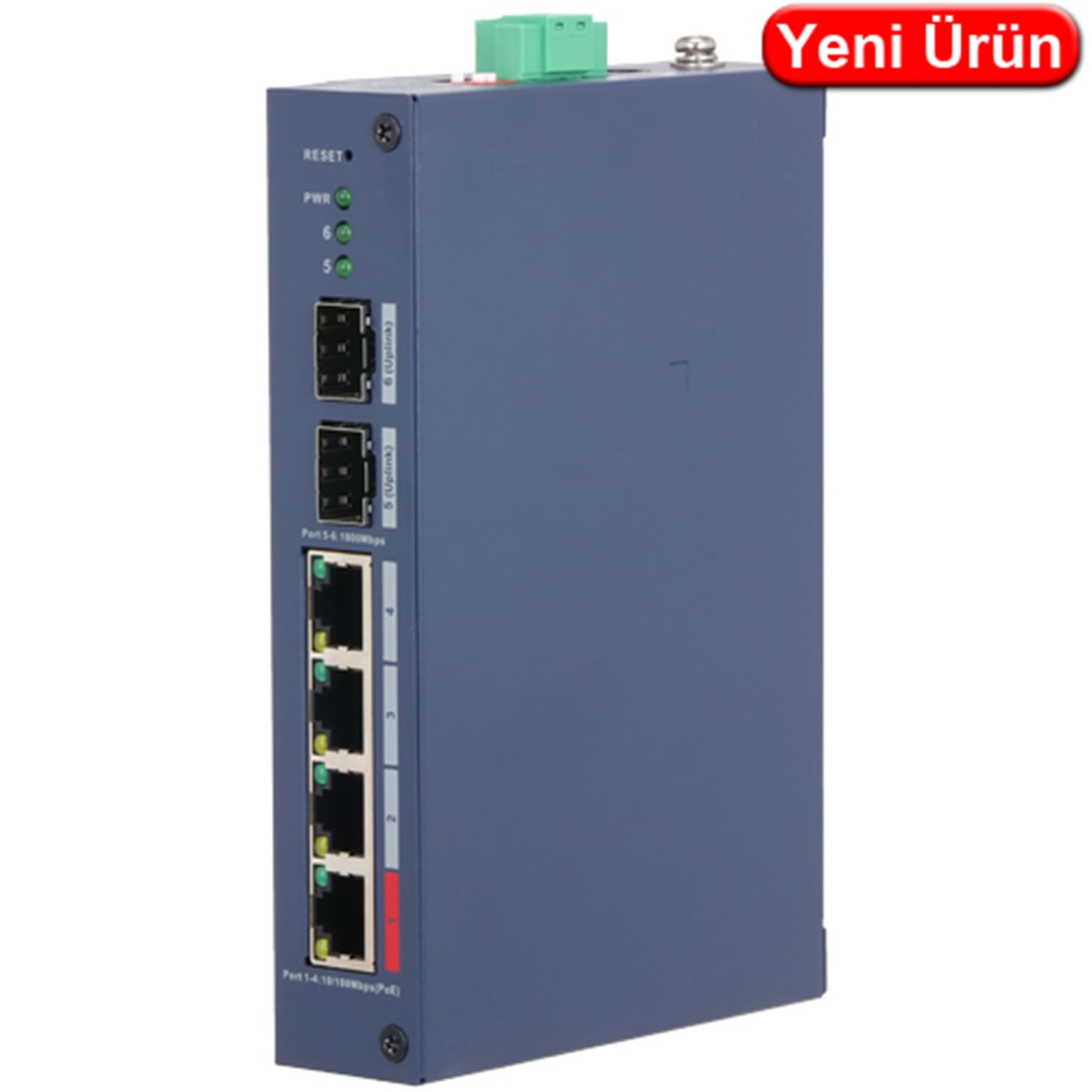

DAHUA (CHS4206-4ET-90) 6 PORT 10/100 + 2xSFP 60W POE CLOUD YÖNETİLEBİLİR SWITCH

Layer 2

4.8 Gbps

3.57 Mpps

Port 1-4: 4 × RJ-45 10/100 Mbps (PoE)
Port 5-6: 2 × SFP 1000 Mbps (uplink)

–30 °C to +65 °C (–22 °F to +149 °F)

10%–90% (RH), non-condensing

IP30; IK06

-40 °C to +85 °C (-40 °F to +185 °F)

5%–95% (RH), non-condensing

External dual power supply (terminal block and DC): 48–57 VDC, 2–1.69A

Idling: 1.3 W
Full load: 92.7 W

Air discharge: 8 kV
Contact discharge: 6 kV

Common mode: 4 kV
Differential mode: 2 kV

0.32 kg (0.71 lb)

0.87 kg (1.92 lb)

154.3 mm × 110.4 mm × 30 mm (6.07" × 4.35" × 1.18") (L × W × H)

266 mm × 239 mm × 77 mm (10.47" × 9.41" × 3.03") (L × W × H)

Iron

DIN rail mount; desktop mount

CE

Yes

Port 2-4≤30 W, port 1≤90 W, total≤90 W

IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

PoE power consumption management; PoE power on/off; turns off PoE if overload is detected; Green PoE

1,2,4,5 (V+),3,6,7,8 (V-)

Yes

Managed mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default.
Extend mode: The transmission distance of ports 1–4 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.
PoE Watchdog: Monitors the flow of data traffic for ports 1–4. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted.

1

1,852,444.63 hours

4 Mbit

9216 Byte

8K

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z

32

Port-based VLAN

IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
Port Self-loop Detection

Local Port Mirroring
N:1 Mirroring

LLDP

DHCP Client

Port Isolation

Web Management
Cloud Management
Logs
Fault Alarm

1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
1 × Terminal Block
