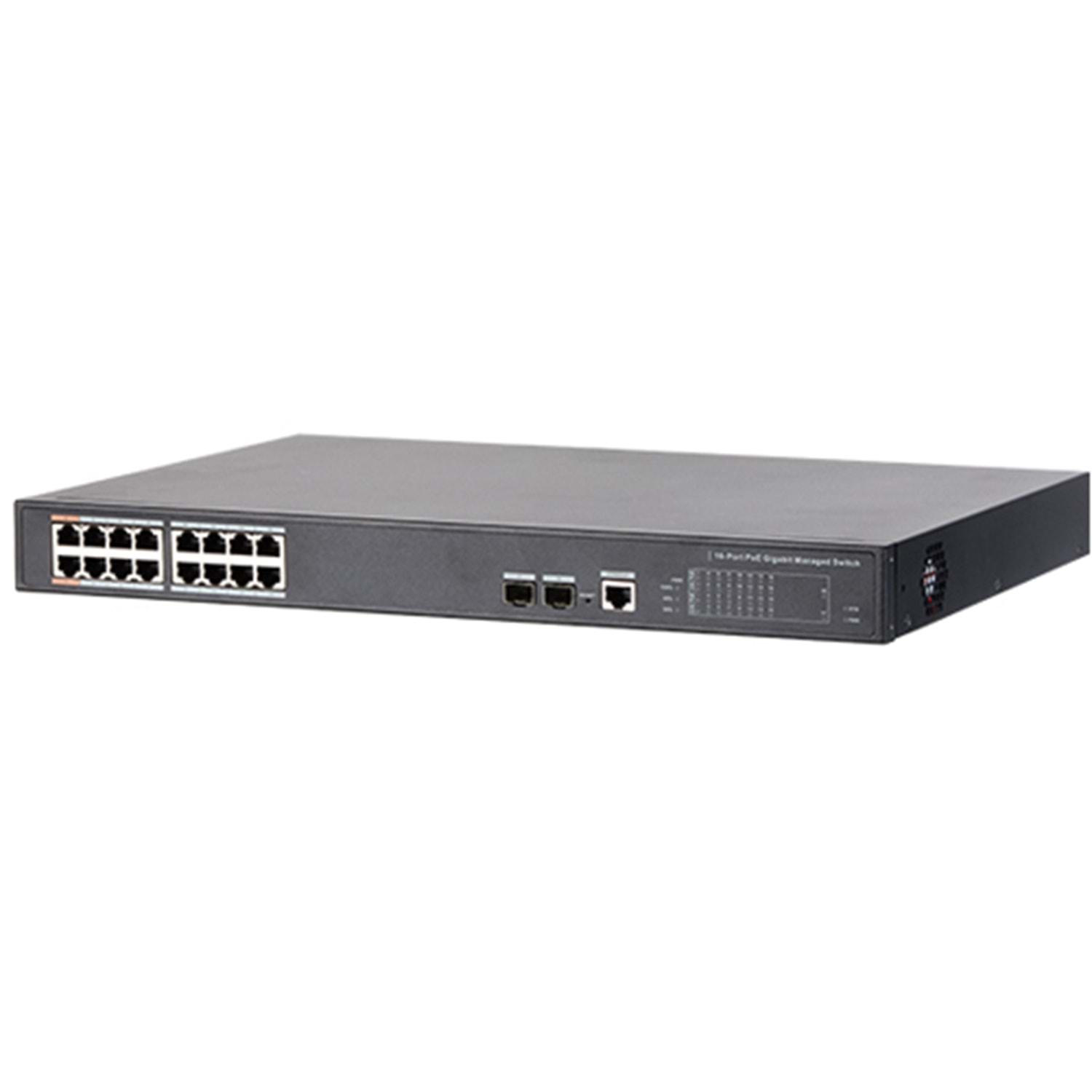

PFS4218-16GT-240
16-Port PoE Gigabit Managed Switch
16 Port PoE Switch (16GE PoE + 2GE SFP + 1 Konsol, Toplam 240W PoE )
2*1000 Base-X, 16*10/100/1000 Base-T (PoE güç kaynağı)
Anahtarlama Kapasitesi: 52Gbps, Paket İletme Hızı: 23.81Mbps, Paket Buffer: 4Mb, Mac Tablosu Boyutu: 8K, VLAN, Spanning Tree, LLDP, Port Aggregiation, Mirroring, Flow Control, Multicast, QoS
Çalışma Sıcaklığı: -10°C~55°C, Nem Aralığı: 5%~95%
Yıldırım Koruması: Common Mode: 2KV, Differential Mod 1KV
> Layer 2 network management PoE switch
> Support IEEE802.3af, IEEE802.3at standard
> Support Hi-PoE 60W
> Network Redundancy: STP/RSTP/MSTP
> Support IPv4/IPv6, and DHCP
> Network management based on SNMP
> Configuration: Web, Telnet, CLI Command
> QoS (IEEE802.1p/1Q), CoS/ToS to Increase Determinism
> Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL
> Large data cache(4M), real-time transmission
> MAC auto study and aging, MAC address list capacity is 8K
> EMC high protection design
| Technical Speci?cation |
| Model | DH-PFS4218-16GT-240 |
| Ethernet Port | 16*10/100/1000 Base-T (PoE power supply) 2*100/1000 Base-X |
| RS232 Serial Console | 1*RS232 in RJ45 connector with console cable, 115.2Kbps, 8,N,1 |
| PoE Power Consumption | Port1 and port 2 support Hi-PoE 60W Each power ≤30W, Total≤240W |
| PoE Protocol | IEEE802.3af, IEEE802.3at, Hi-PoE |
| Switching Capacity | 52Gbps |
| Packet Forwarding Rate | 23.81Mpps |
| Packet Buffer Memory | 4Mb |
| Application Humidity | 5%~95% |
| Power | AC100-240V, 50/60Hz |
| Lightning Protection | Common Mode 2KV Differential Mode 1KV |
| Working Temperature | -10°C~55°C |
| Dimension(W×D×H) | 440mm x300mm x44mm |
| Accessories |
| Model | |
| PFT3950 | 1.25G 850nm,500m,LC, Multi-mode |
| PFT3960 | 1.25G 1310/1550nm,20km,LC, Single-mode |
| PFT3970 | 1.25G 1550/1310nm,20km,LC, Single-mode |
| Service Characteristics |
| System | Username / password: admin/admin |
| IP Address :192.168.1.110/24 |
| PoE Budget | Total≤240W |
| MAC Table | 8K |
| NTP | Support |
| DHCP | Support DHCP client/server |
| Support DHCP snooping |
| VLAN | 802.1Q Standard VLAN |
| Port Aggregation | Manual aggregation/LACP |
| Mirroring | Many-to-one port mirroring |
| Flow Control | Half-duplex based on back pressure type control; Full duplex based on PAUSE frame |
| Multicast | IGMP Snooping v1/v2/v3 |
| Security Features | Users management, SSH, HTTPS, SNMP v1/v2/v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection |
| Spanning tree | Support STP/RSTP/MSTP |
| LLDP | Support |
| MAC Table | Support MAC address table configuration |
| QoS | Support QoS base on CoS/DPL/PCP/DEI Each port support 8 output queue Support port shaping Support port tag remarking Support QoS base on DSCP |
| System Maintenance | Support the configuration file upload/download Support the updated packet upload System log |
| Network Management | WEB(http protocol), serial, SNMP |
