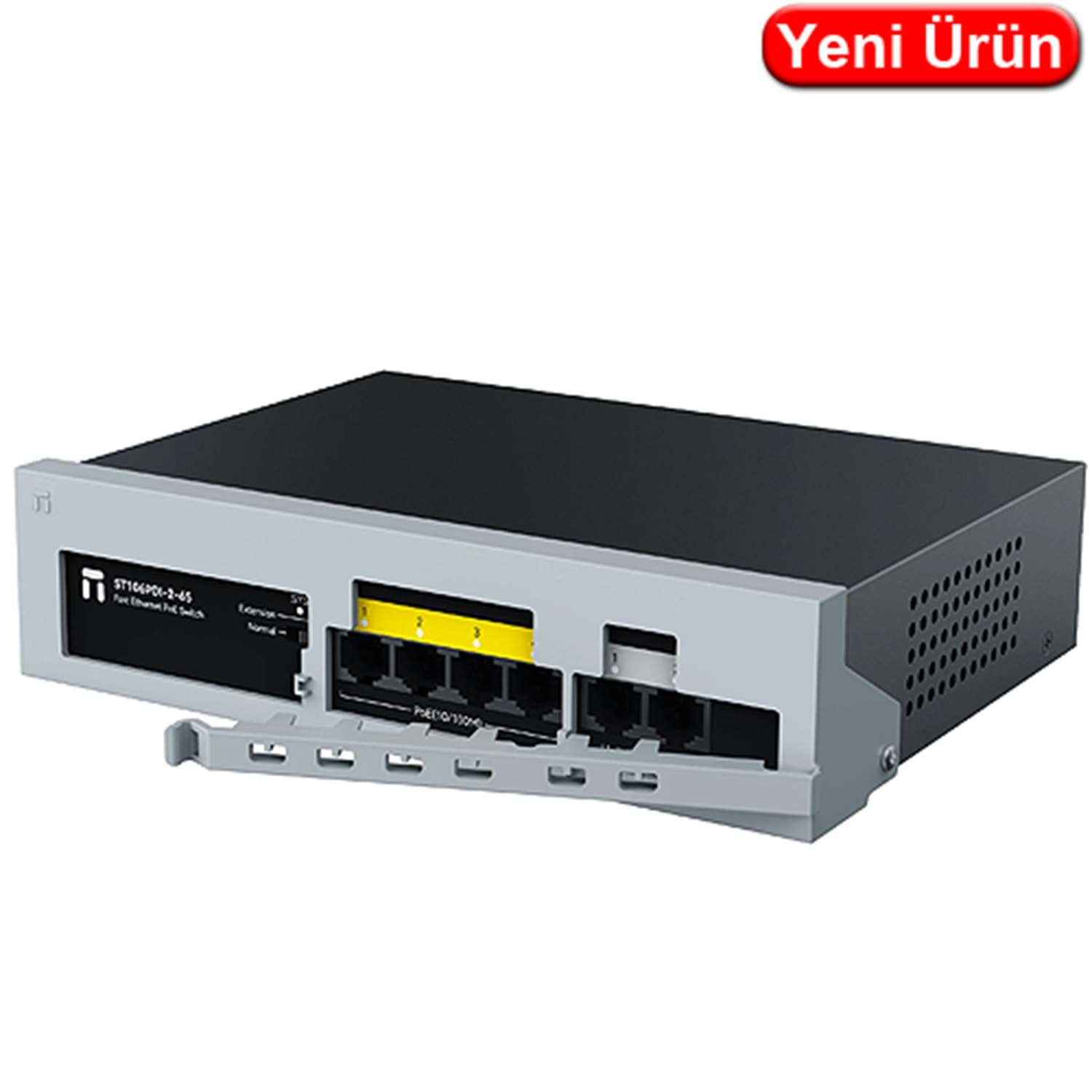

STONET (ST106PDI) 4 PORT POE 10/100 + 2 PORT UPLINK 10/100 65W EMNİYET KİLİTLİ POE SWITCH

Henüz Değerlendirilmemiş

Stok Kodu

: E34801

Stok Miktarı

: 50+ ADET

Markası

: STONET

Whatsapp ile Sipariş

ST106PDI-2-65

Fast Ethernet PoE Switch with Attached Safety Lock

Attached safety lock, more stable connection.
6*10/100M ports: 4 PoE ports+2 uplink ports.
Built-in 65W power supply with up to 30W PoE output per port.
Durable steel shell for better heat dissipation.
Support IEEE 802.3af/at standards, compatible with powered devices (PD) that meet IEEE 802.3af/at.
All ports support auto MDI/MDI-X function.
Equipped with a convenient DIP switch that can be easily switched between normal mode and extend mode.

Specification

LED Indicators

Power Indicator	Lights up when the device is powered on.
Function Indicator	Lights up when the extended transmission function is enabled.

Hardware

Switch Ports	Normal mode/Cable Extension mode
Ports	4x100Mbps POE ports + 2x100Mbps uplink ports
Backplane Bandwidth	1.2Gbps
MAC Address Table	2K
Input Power	100-240V~ 50/60Hz
Power Supply	65W 54V/1.2A
Maximum POE Output Power	55W
Network Media & Transmission Distance	100Base-TX: 2 pairs of Category 5 (Cat5) or higher UTP/STP cables (≤100m) 10Base-TX: 2 pairs of Category 6 (Cat6) or higher UTP/STP cables (≤250m)

Software

Basic Functions	Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet protocol standards Compatible with IEEE 802.3af/at compliant powered devices (PD) Compatible with certified non-standard powered devices (PD) Supports store-and-forward switching Supports automatic MAC address learning and aging Extended cable transmission,supports long-distance monitoring power supply Supports IEEE 802.3X full-duplex flow control and Backpressure half-duplex flow control
Ethernet Protocols and Standards	IEEE 802.3 Ethernet Media Access Control (MAC) protocol IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af Power over Ethernet (POE) IEEE 802.3at High Power over Ethernet (POE) IEEE 802.3x Flow Control
Data Transfer Rates	10/100Mbps support for both full-duplex and half-duplex modes

Environmental Requirements

Temperature	Operating Temperature:0? ~ 40? Storage Temperature:-40? ~ 70?
Humidity	Operating Humidity:10% ~ 90% RH(non-condensing) Storage Humidity:5% ~ 90% RH(non-condensing)
Altitude	Operating: Max 6500 feet (2000 meters) Storage: Max 6500 feet (2000 meters)

Lightning Surge Protection

Differential Mode	4KV
Common Mode	4KV

Physical Dimensions

Dimensions

(W x D x H)

190mmx140mmx43mm

Packaging and Transportation

Protective Packing

EPE protection

Others

Stacking Limit	Maximum of 4 layers when fully packaged
Humidity	5%~90% RH(non-condensing)
Storage Temperature	-40? ~ 70?,with the most suitable storage condition being room temperature considering humidity
Storage Precautions	Store in a clean,ventilated environment free from corrosive gases,flammable,explosive,and other hazardous chemicals.Keep away from heat sources and sources of strong mechanical vibration
Storage Period	Under the above conditions,the product can be stored for one year.It is recommended to re-inspect and test the product after two years before use
