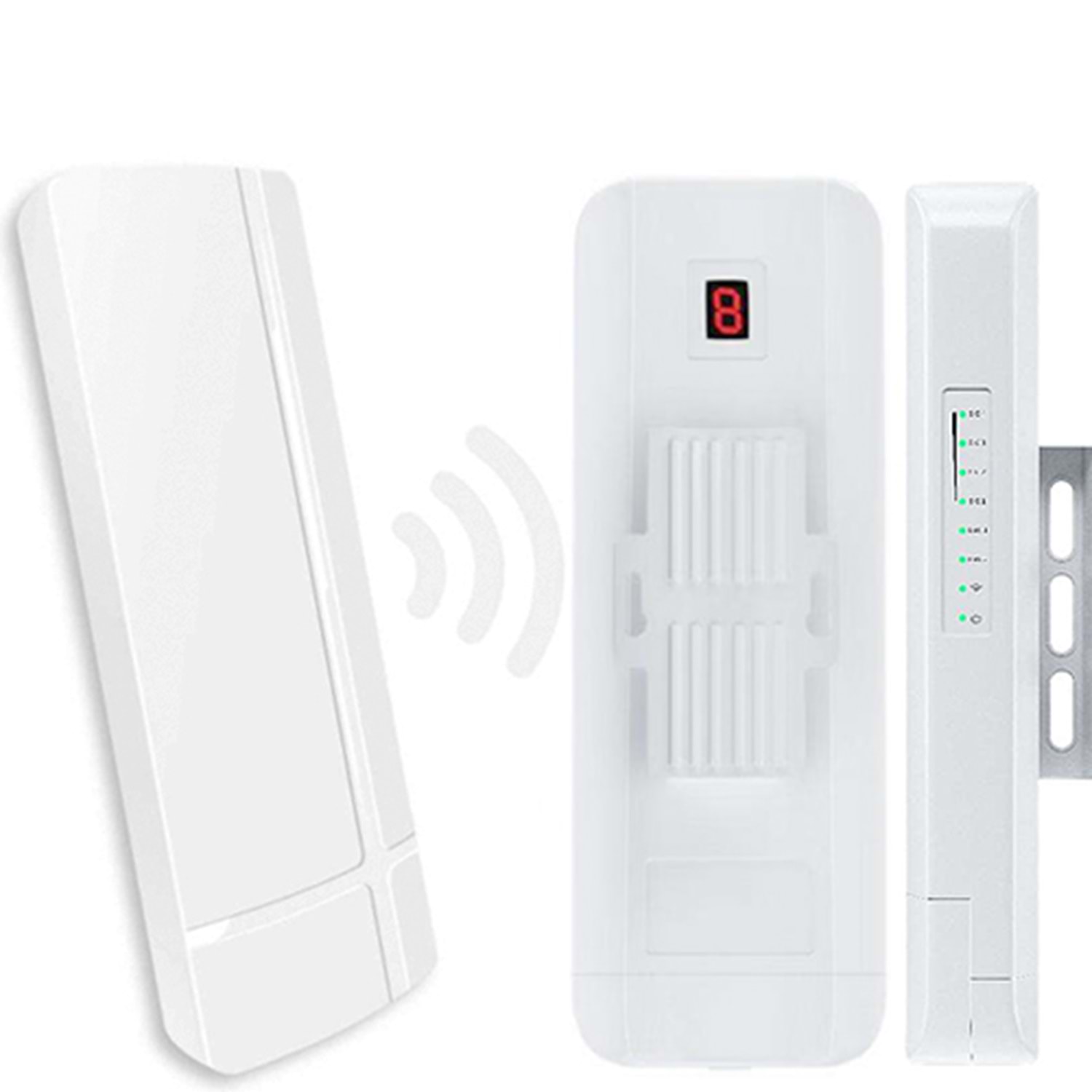

STONET (NB50) 5GHZ 450MBPS OUTDOOR WIRELESS ACCESS POINT

Point to Point için : RJ45 girişi yanında switchten M yada S'i seçin. Main AP mode yada Slave AP Mode seçenekleriyle Point To Point özelliğini aktif edebilirsiniz...

(ADAPTÖR DAHİL)
OVERVIEW:
The NB50 is a high-performance enterprise-class outdoor digital bridge that supports 802.11AC technology. It
operates in the 5.8G wireless band. It has unique digital tube pairing technology, no computer configuration,
easy to finish point to point, point to point (less than 8 points) equipment matching. With 100M network
interface, it can support up to 450Mbps wireless access speed in 5G 802.11AC mode. The power supply mode
is flexible, supporting 24V POE network cable power supply and 12V 1A DC local power supply, and the
distance of the network wireless supply can reach 50-70 meters (Related to the material of the netting
twine).The outdoor IP65 is designed for windbreak, rain protection, dust-proof and sun protection, and it is
easy to adapt to all kinds of harsh outdoor environments. The device is equipped with 14dBi dual intensifying
plate antenna, and its installation is simple and fast. It has high performance, high gain, high receiving
sensitivity, high bandwidth and so on. It greatly enhances the performance and stability of wireless
transmission, and is widely used in medium and short range video transmission and data transmission.

HARDWARE FEATURES:
• Cost-effective hardware solution
Mediatek master chip, industrial-grade circuit design, support IEEE802.11AC protocol, can provide
450Mbps wireless access speed and 100Mbps Ethernet exchange processing speed. Excellent anti
high and low temperature design, fully protect user network data in the extreme environment,
real-time, long-term, stable and efficient transmission, enhance user experience.
• Powerful wireless transmission capability
The circuit design with high power and high reception sensitivity greatly enhances the distance of
wireless transmission up to 3KM and improves the performance and stability of wireless
transmission.
• Pairing simple and efficient
Without the need of network professional knowledge, without computer operation, easy to dial
code and adjust the main and slave devices digital tube to the same value to complete point to
point, point to multi point (within 8 points) matching work.
• Power supply is optional
The NB50 not only supports POE remote network cable power supply, but also supports 12V 1A DC
local power connection to meet the needs of various scenarios, reduce construction costs, and
flexibility select the power supply method.
• Small fashion, easy to install
Small appearance vogue, installation is simple, flexible wall hanging, a variety of installations, such
as suction a top without affecting the original design, on the basis of greatly reduce the
construction difficulty of construction personnel, and improve the construction efficiency.

SOFTWARE FEATURES:
• Simple Overview of the equipment
Login the device in the WEB browser and you can check the information of the receiver, emitter,
system, port, and real time flow in real time. A simple and clear graphical interface allows the user to
know the working state of the device in real time.
• Humanized unified management & setting
The equipment has the function of AC controller. The cable connection equipment can access the
169.254.254.254 through the WEB browser. It can manage all the LAN equipment, unified
configuration and wireless optimization. To solve the problem that LAN Wireless Bridge is difficult
to manage, it greatly simplifies the work of network administrators.
• Fast setting & powerful wireless optimization
The user does not need to know too much wireless knowledge, without too much professional
knowledge, and can realize the pairing of point to point, point to point (within 8 points) in a few
steps. Simple settings can achieve wireless optimization, and improve the quality and effectiveness
of link transmission.
• Ensure the user's network security at all times
The VAP signal of the device are all advanced WPA-PSK&WPA2-PSK encryption strategy, and the
bridge signal wireless terminal cannot search. VAP signals support SSID hiding, protect users'
network from hackers' attacks, and ensure users' data security.
• Easy adaptation to a variety of network environments
The device support gateway mode and bridge transmission mode. Gateway mode supports
automatic acquisition, PPPoE and static IP, which is easy to adapt to all kinds of networkenvironment needs.
• Unique mobile terminal management mode
The device supports 5G VAP signal emission and mobile terminal HTML5, and mobile phone and
flat connection signal can easily log on to 169.254.254.254 to configure the device.
• Cloud Management
The unique cloud management only needs the network where the device is connected to the
Internet, and it can be easily configured to access the configuration devices everywhere.
• Simple and efficient system configuration
Network time, access password modification, local backup/restore settings, restore factory settings,
local/online upgrade, immediate/timed restart, simple and clear features allow you to easily
complete the system settings of the device and enhance the robustness of the device.

SPECIFICATION:
