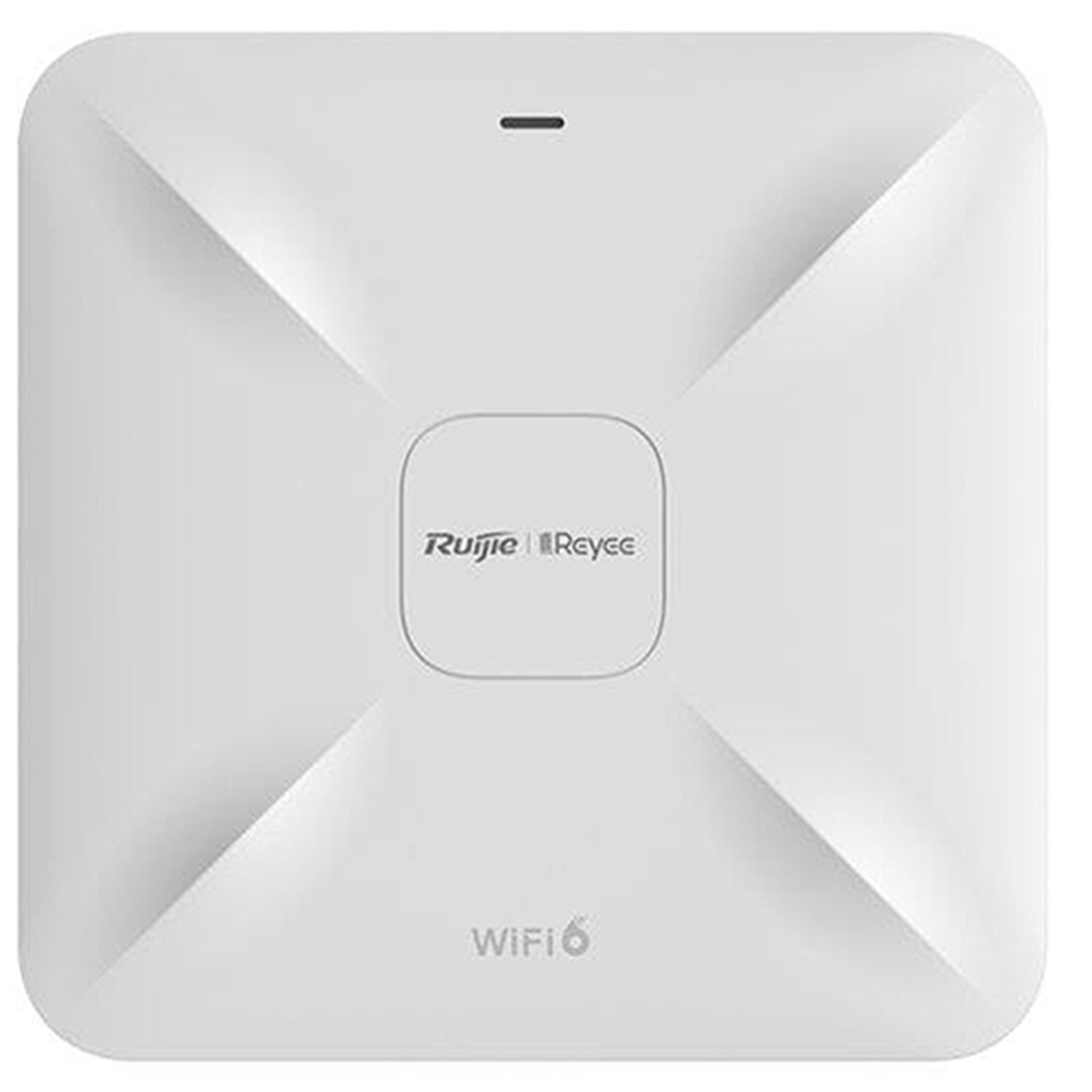

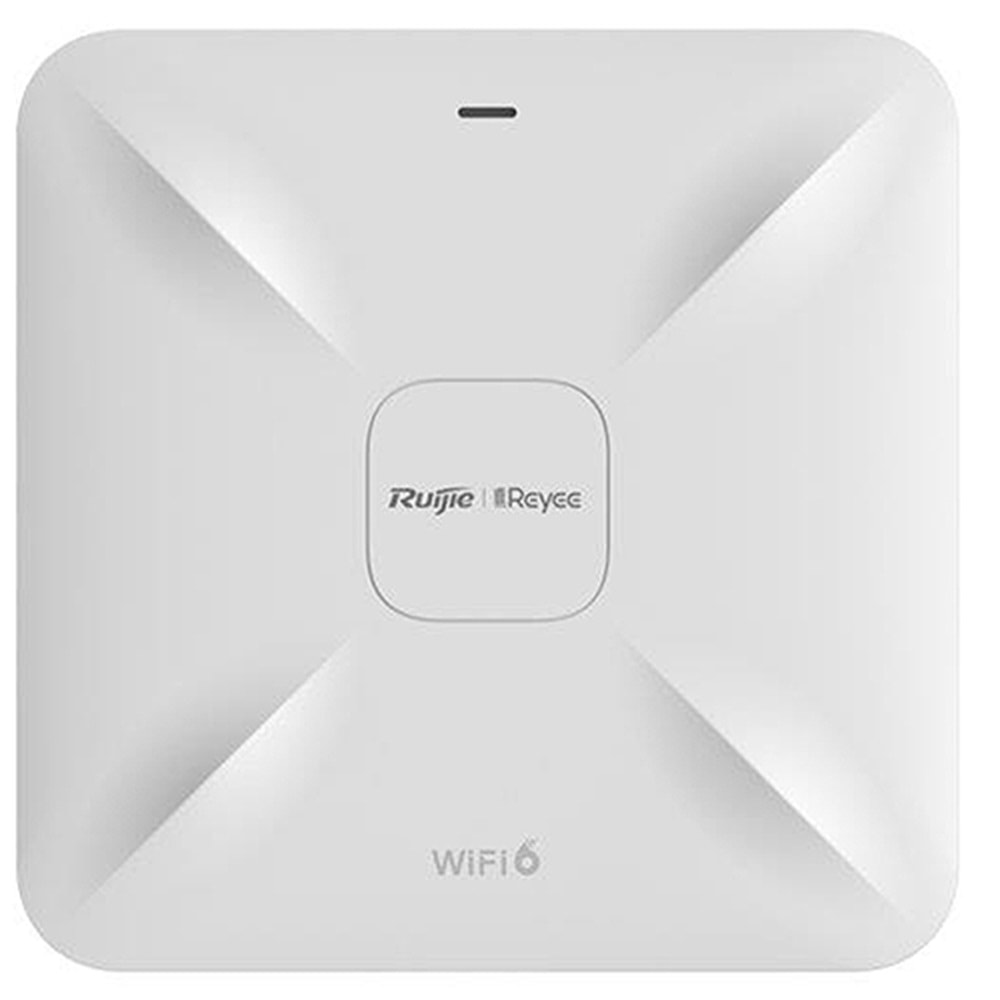

| Model | RG-RAP2260(G) |
| Hardware Specifications |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/n |
| Operating Bands | 802.11b/g/n/ax :2.4G ~ 2.4835GHz |
| 802.11a/n/ac/ax : 5G:5.150~5.350GHz,5.725~5.850GHz (country specific) |
| Antenna | Internal antennas(2.4G: 3dBi,5G: 3dBi) |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput | Up to 574Mbps at 2.4G |
| Up to 1201Mbps at 5G |
| 1.775Gbp per AP |
| Modulation | OFDM: |
| BPSK@6/9Mbps,QPSK@12/18Mbps,16QAM@24Mbps,64QAM@48/54Mbps |
| DSSS: |
| DBPSK@1Mbps,DQPSK@2Mbps, |
| and CCK@5.5/11Mbps |
| MIMO-OFDM: |
| BPSK,QPSK,16QAM ,64QAM,256QAM and1024QAM |
| OFDMA |
| Receive Sensitivity | 11b: |
| -96dBm(1Mbps), |
| -93dBm(5Mbps), |
| -89dBm(11Mbps) |
| 11a/g: |
| -91dBm(6Mbps), |
| -85dBm(24Mbps), |
| -80dBm(36Mbps), |
| -74dBm(54Mbps) |
| 11n: |
| -90dBm(MCS0), |
| -70dBm(MCS7), |
| -89dBm(MCS8), |
| -68dBm(MCS15) |
| 11ac: |
| 20MHz:-88dBm(MCS0), -63dBm(MCS9) |
| 40MHz:-85dBm(MCS0), -60dBm(MCS9) |
| 80MHz:-85dBm(MCS0), -60dBm(MCS9) |
| Wi-Fi 6: |
| 80MHz:-82dBm(MCS0), -57dBm(MCS9),-52dBm(MCS11) |
| Maximum output power of the transmitter(single stream) | 2.4GHz(2.4~2.4835GHz):23dBm |
| 5GHz(5.150~5.250GHz,5.725~5.850GHz):23dBm |
| (country-specific,comply with local laws) |
| Adjustable Power | 1dBm |
| Dimensions | 194mm×194mm×35mm (excluding mounting kits) |
| Weight | 0.56kg (excluding mounting kits) |
| Service Ports | 2 10/100/1000M Base-T Ethernet ports, PoE/LAN1 port supports PoE |
| Management Port | NA |
| LED Indicator | Single indicator (green light) |
| Power Supply | Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory), 802.3at PoE (Warning:802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier) |
| Power Consumption | ≤ 15.3W |
| Environment | Operating temperature: 0°C~40°C |
| Storage temperature: -40°C~70°C |
| Operating humidity: 5%~95% |
| (non-condensing) |
| Storage humidity: 5%~95% |
| (non-condensing) |
| Installation | Ceiling/wall-mountable |
| Safety Standard | GB4943, IEC 62368-1 |
| EMC Standard | GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035 |
| Vibration Standard | IEC61373 |
| Radio Standard | EN300 328, EN301 893 |
| MTBF | >400000H |
| Software Features |
| Operating Mode | AP mode and routing mode |
| WLAN | Maximum number of clients: 512 |
| Recommended number of clients: 100 |
| Up to 8 SSIDs |
| Support SSID hiding |
| Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID |
| SSID-based and radio-based STA limit |
| Support Layer 2 user isolation |
| Roaming | Support Layer 2 and Layer 3 roaming |
| Security | Support PSK authentication |
| Support static blacklist and whitelist |
| Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption |
| Support Black List / White List: |
| Maximum 256 rules per SSID |
| Maximum 1024 rules per AP |
| Routing | Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance | Support unified networking of all network equipment |
| Support local or remote management with Ruijie Cloud app |
| Support local management with web |
| Support remote management with Ruijie Cloud platform |
| Platform management features | Automatic RF adjustment via the platform |
| Unified configuration via the platform |
| Unified monitoring via the platform |
