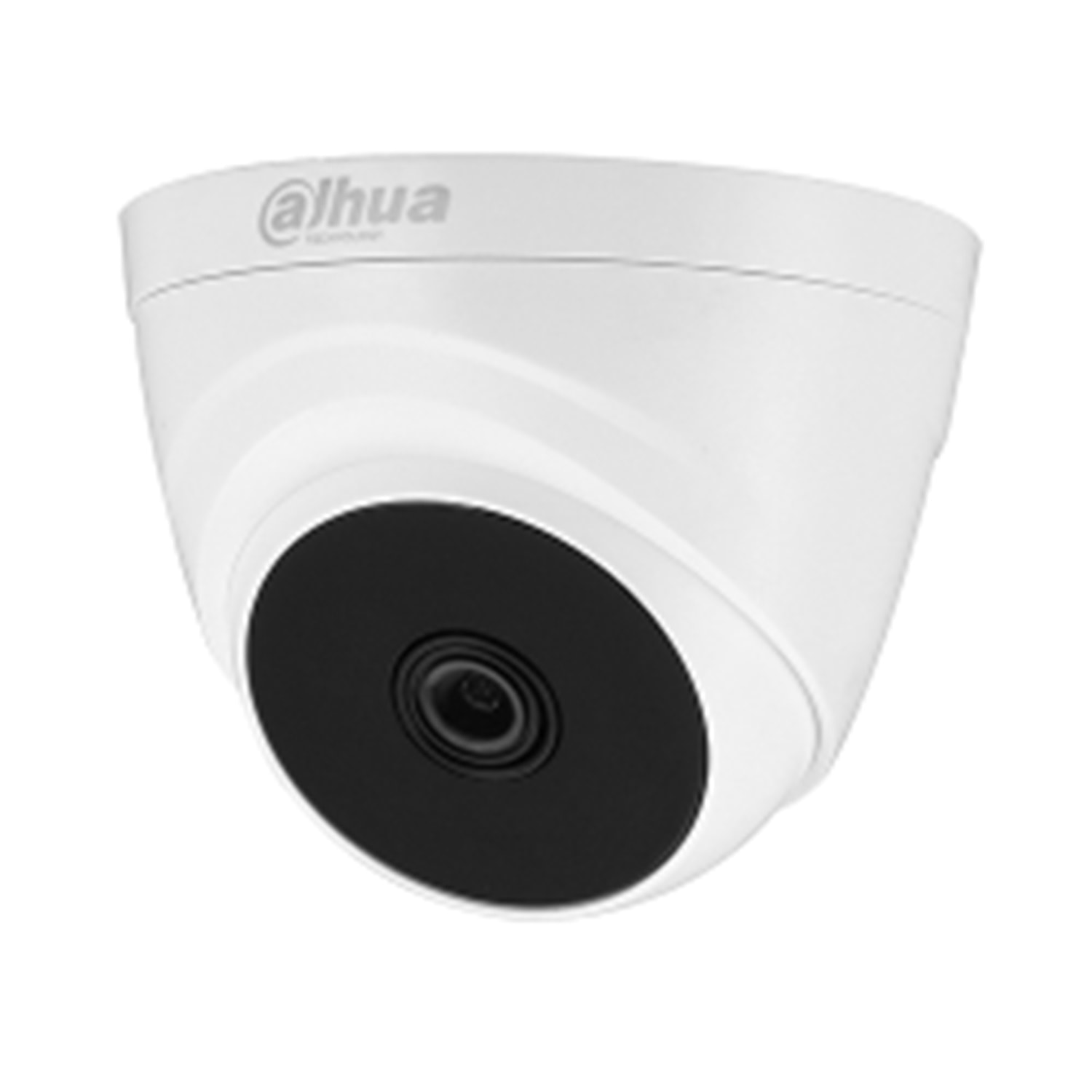

OUTLET DAHUA (HAC-T1A21-0280B) 2MP 2.8MM LENS 1080P 4IN1 PLASTİK KASA IR DOME KAMERA-20MT

Aradığınız her şey tek platformda...

Giriş Yap Hesap Oluştur

info@yildizguvenlik.com.tr 0543 9641205

Arama

OUTLET DAHUA (HAC-T1A21-0280B) 2MP 2.8MM LENS 1080P 4IN1 PLASTİK KASA IR DOME KAMERA-20MT

Henüz Değerlendirilmemiş

Stok Kodu

: Y7202002

Stok Miktarı

: 20+ ADET

Whatsapp ile Sipariş

2 MP IR Dome Kamera(20m IR)
1 / 2.7 " CMOS, 2.8mm Sabit Lens , 0.04 Lüx Renkli
BLC/HLC/DWDR, 2DNR, OSD, AWB, AGC, ICR, 4 in 1(HDCVI/HDTVI/AHD/CVBS)
25fps@1080p, Plastik Kasa

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI

Definition

Distance

Detect

25px/m (8px/ft)

2.8mm: 37m(121ft)

Observe

63px/m (19px/ft)

2.8mm: 15m(49ft)

Recognize

125px/m (38px/ft)

2.8mm: 8m(26ft)

Identify

250ppm (76px/ft)

2.8mm: 4m(14ft)

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

Interface

Audio Interface

N/A

Eelectrical

Power Supply

12V DC ±30%

Power Consumption

Max. 2.3W (12V DC, IR on)

Environmental

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

Construction

Casing

Plastic

Dimensions

85mm×85mm×69mm(3.35"×3.35"×2.72")

Net Weight

0.09kg (0.20lb)

Gross Weight

0.13kg (0.27lb)

Camera

Image Sensor

1/2.7" CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination

0.04Lux/F1.85, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 20m (66feet)

IR On/Off Control

Auto / Manual

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

2.8mm

Max Aperture

F1.85

Angle of View

H: 93° (103°, 54.7°)

Focus Control

N/A

Close Focus Distance

800mm (500mm, 2000mm)

31.50"" (19.69", 78.74"")

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 78°

Rotation: 0° ~ 360°

Video

Resolution

1080P (1920×1080)

Frame Rate

25/30fps@1080P, 25/30/50/60fps@720P

Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / DWDR

WDR

DWDR

Gain Control

AGC

Noise Reduction

White Balance

Auto / Manual

Smart IR

Auto / Manual
