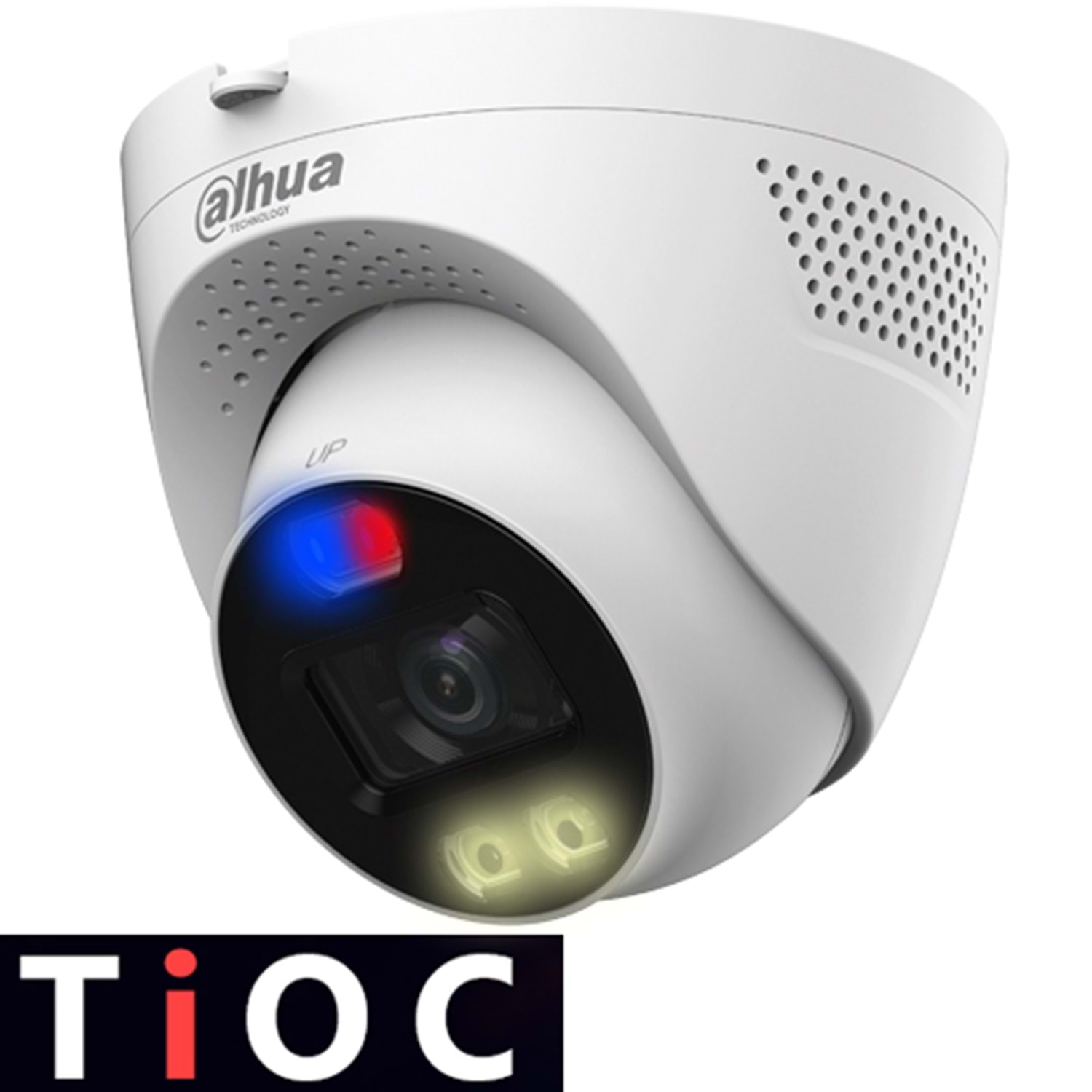

OUTLET DAHUA (HAC-ME1239TQ-A-PV-0280B-S2) 2MP 2.8MM 1080P HDCVI TİOC 4IN1 IP67 METAL IR DOME-40MT

Camera

Pixel

2 MP

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s

Min. Illumination

0.001 lux@F1.6 (Color, 30 IRE)
0.0001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

IR: 40 m (131.23 ft)
Warm light: 40 m (131.23 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR light)

2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 108°; V: 58°; D: 127°

3.6 mm: H: 86°; V: 46°; D: 101°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.7 m (2.29 ft)

3.6 mm: 1.1 m (3.61 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

42.2 m (138.45 ft)

16.9 m

(55.45 ft)

8.4 m

(27.56 ft)

4.2 m

(13.78 ft)

3.6 mm

53.7 m (176.18 ft)

21.5 m

(70.54 ft)

10.7 m

(35.10 ft)

5.4 m

(17.72 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960 × 576H;
NTSC: 960 × 480H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto (ICR)/Color/B/W

BLC

BLC; HLC; WDR

WDR

130 dB

White Balance

Auto; Area white balance

Gain Control

Auto/Manual

Noise Reduction

3D NR

Smart Illumination

Yes

Mirror

Off/On

Privacy Masking

Off/On (8 areas, rectangle)

Illuminator

Smart IR&WL; WL Mode; IR Mode

Active Deterrence

Sound Warning

Audio1: alarm
Audio2: No parking here
Audio3: Private land no entry.
Audio4: Warning zone keep off
Audio5: Welcome
Volume: high/medium/low;
duration: 5 s–60 s; 110 dB

Red/Blue Light Warning

Flash: 5 s–60 s; frequency: high/medium/low

Certification

Certifications

CE (EN55032: 2015, EN61000-3-2: 2014, EN61000-3-3: 2013, EN55024:2010+A1: 2015, EN55035: 2017, EN50130-4: 2011+A1: 2014, EN62368-1: 2014+A11: 2017)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in MIC (-A)

Power

Power Supply

12 VDC ± 30%(It is recommended to use a power adapter to supply the power for one camera)

Power Consumption

Max 7.6 W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing Material

Inner core: Metal + plastic

Cover: Plastic

Product Dimensions

Φ109.9 mm × 100.9 mm (Φ4.33" × 3.97")

Packaging Dimensions

148 mm × 139 mm × 137 mm (5.83" × 5.47" × 5.39")

Net Weight

0.32 kg (0.71 lb)

Gross Weight

0.50 kg (1.10 lb)

Installation

Wall mount; ceiling mount; vertical pole mount
