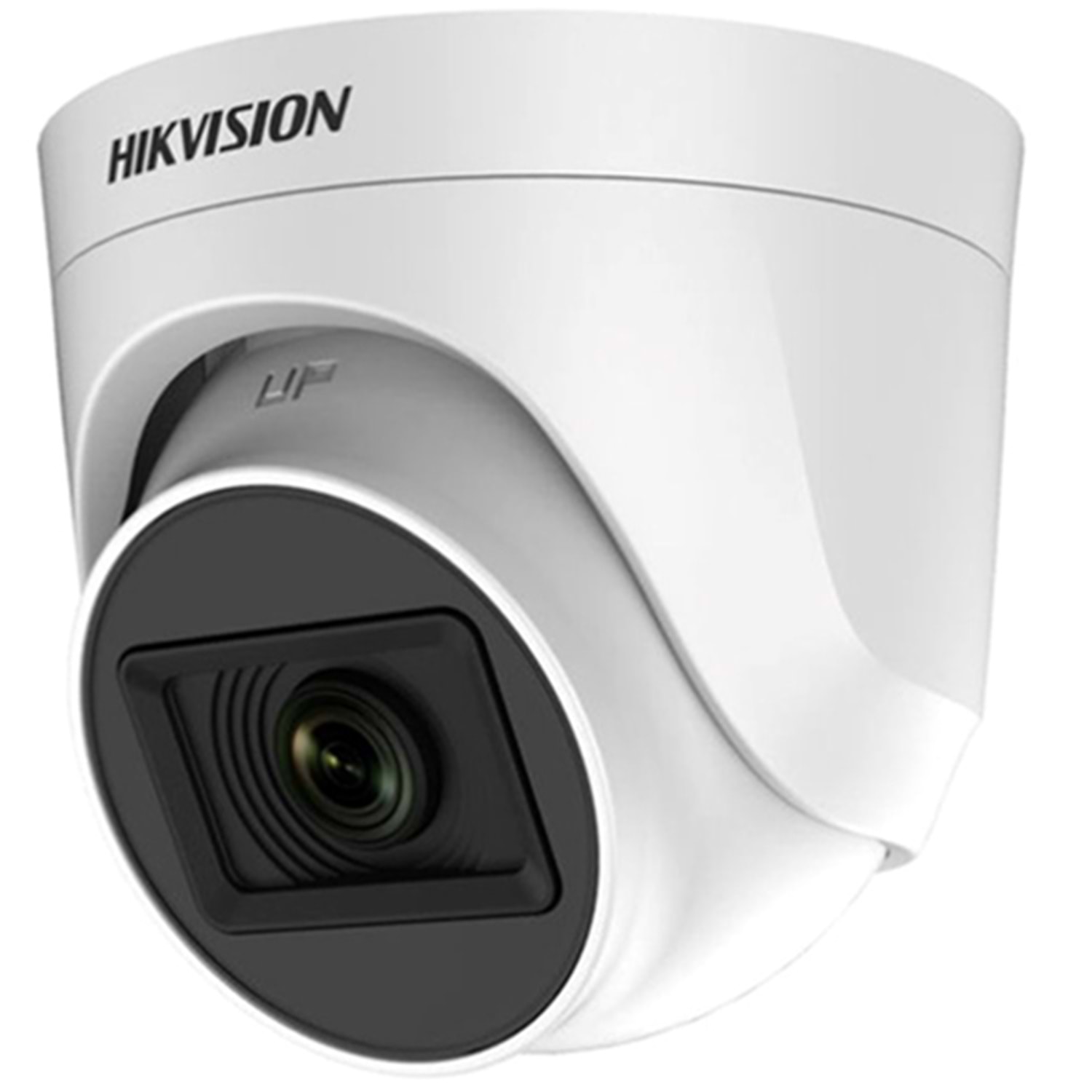

HIKVISION (DS-2CE76D0T-EXIPF) 2MP 2.8MM LENS 1080P HD-TVI 4IN1 IR DOME KAMERA-20MT.

High quality imaging with 2 MP, 1920 × 1080 resolution
? 2.8 mm, 3.6 mm fixed lens
? Up to 20 m IR distance for bright night imaging
? One port for four switchable signals (TVI/AHD/CVI/CVBS)

Camera
Image Sensor : 2 MP CMOS
Signal System : PAL/NTSC
Resolution : 1920 (H) × 1080 (V)
Frame Rate
TVI: 1080p@25fps/30fps
AHD: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination : 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Lens : 2.8 mm, 3.6 mm Fixed Lens
Field of View
2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 123°
3.6 mm, horizontal FOV: 81°, vertical FOV: 42°, diagonal FOV: 100°
Lens Mount : M12
Day & Night : ICR
WDR (Wide Dynamic Range) : Digital WDR
Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Menu
Image Mode : STD/HIGH-SAT
AGC : Yes
Day/Night : Mode Auto/Color/BW (Black and White)
White Balance : Auto
AE (Auto Exposure) Mode : DWDR, BLC, Global
Noise Reduction : 2D DNR
Language : English
Function : Brightness, Mirror, Smart IR, Sharpness
Interface
Video Output : Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions : -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply : 12 VDC ± 25%
Consumption Max. : 3.3 W
Material : Plastic
IR Range : Up to 20 m
Communication : HIKVISION-C
Dimension : Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
Weight : Approx. 195g (0.43 lb.)
