HIKVISION (DS-2DE2A404IW-DE3) 4MP 1/3 PS CMOS 2.8-12MM NETWORK İÇ ORTAM IR PTZ KAMERA (4x,20MT)

Henüz Değerlendirilmemiş

Stok Kodu

: Y5303371

Stok Miktarı

: 1 ADET

Markası

: HIKVISION

Whatsapp ile Sipariş

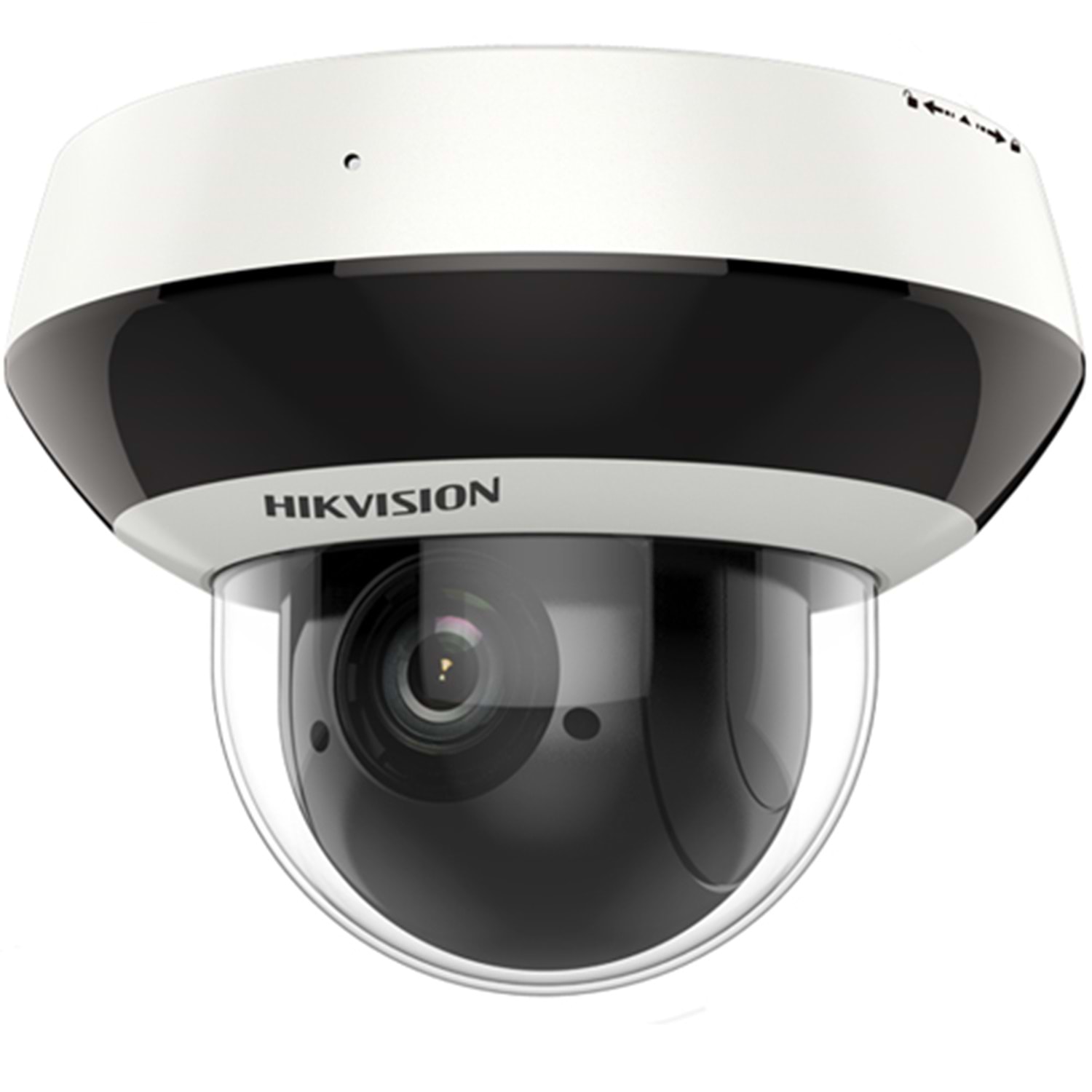

2-inch 4 MP 4X Powered by DarkFighter IR Network Speed Dome

High quality imaging with 4 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
4x optical zoom allows for closer viewing of subjects in expansive areas
Up to 20m IR range ensures safety at night.

Lens
FOV : Horizontal field of view: 96.7° to 31.6° (Wide-Tele), Vertical field of view: 51.1° to 17.7° (Wide-Tele) , Diagonal field of view: 115.1° to 36.3° (Wide-Tele)
Zoom Speed : Approx. 2 s (optical lens, wide-tele)
Working Distance : 10 mm to 1500 mm (wide-tele)
Aperture Range : F1.6 to F2.7
Focal Length : 2.8 mm to 12 mm, 4× optical zoom

Image Enhancement : 3D DNR, EIS, Regional Exposure, Regional Focus
Sub-Stream : 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution : 2560 × 1440
Main Stream : 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 24fps (2560 × 1440), 30fps(2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream : 50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network
Network Storage : Built-in memory card slot, support microSD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
Protocols : IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
API : ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live View : Up to 20 channels
User/Host : Up to 32 users,3 levels: Administrator, Operator and User
Client : iVMS-4200, Hik-Central, Hik-Connect
Web Browser : IE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Security Measures : User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Alarm Linkage : Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Interface
Audio Input : 1-ch audio input (mic in/line in) , 1 built-in microphone
Audio Output : 1-ch audio output
Network Interface : 1 RJ45 10 M/100 M Ethernet, PoE

Compression Standard
H.264+Yes
H.265+Yes
H.264 Type : Baseline Profile/Main Profile/High Profile
Video Compression : Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
Video Bitrate : 32 Kbps to 16384 Kbps
Audio Compression : G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate : 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
SVC : Yes

Camera Module
Image Sensor : 1/3" progressive scan CMOS
Min. Illumination : Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
White Balance : Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Gain : Auto/Manual
Shutter Time : 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
Day & Night : IR cut filter
Digital Zoom : 16×
Privacy Mask : 24 programmable privacy masks
Focus Mode : Auto/Semi-automatic/Manual
WDR : 120 dB WDR

Supplement Light
IR Distance : 20 m
Smart IR : Yes

PTZ
Movement Range (Pan) : 0° to 355°
Pan Speed : Configurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
Movement Range (Tilt) : From 0° to 90°
Tilt Speed : Configurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
Proportional Zoom : Yes
Presets : 300
Power-off Memory : Yes

Smart Features
Basic Event Detection : Motion Detection, Video Tampering Detection, Exception
Smart Detection : Face detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, object removal detection, unattended baggage detection, audio exception detection
Smart Record : ANR (Automatic Network Replenishment), Dual-VCA
ROI : Main stream, sub-stream, and third stream respectively support four fixed areas.

General
Material : Aluminum alloy, PC, PC+ABS
Dimensions : Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00")
Approx. 0.53 kg (1.17 lb)
Protection Level : IP66 standard, IK 10, surge protection, ±2kV Line to Gnd, ±1kV Line to Line, IEC61000-4-5
Power
12 VDC, 1.5 A (Max. 10.9 W, including Max. 4.2 W for IR)

PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 12.2 W, including max. 4.2 W for IR)
Working Temperature : -20°C to 60°C (-4°F to 140°F)
Working Humidity : ≤ 90%
