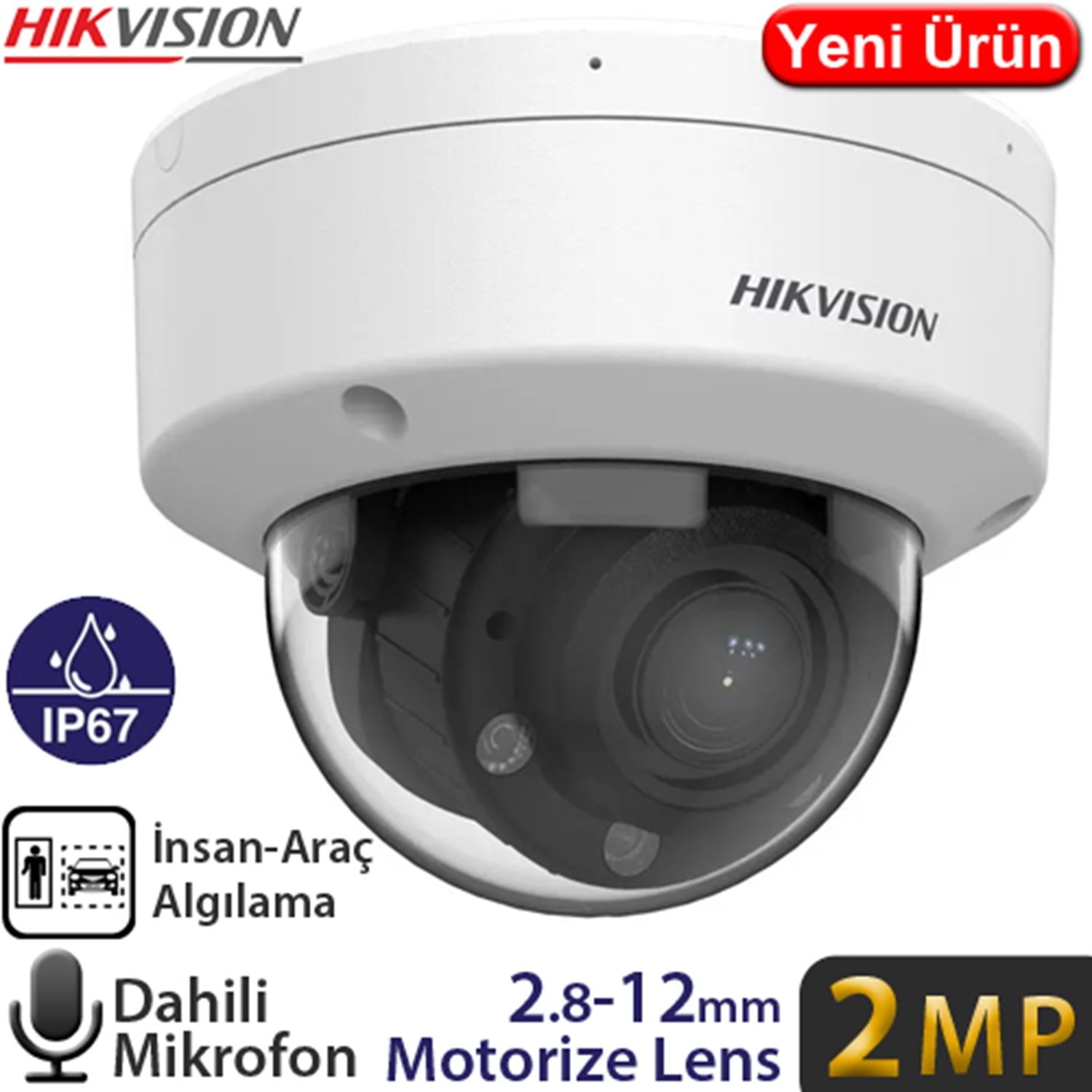

HIKVISION (DS-2CD1723G2-LIZ(S)U) 2MP 2.8-12MM MOT. SMART HYBRID IP67 IK08 512GB IP DOME KAMERA-30MT.

Henüz Değerlendirilmemiş

KDV : %20

Stok Kodu

: E34820

Stok Miktarı

: 5 ADET

Markası

: HIKVISION

Whatsapp ile Sipariş

ÇÖZÜNÜRLÜK(MP)

GECE GÖRÜŞÜ

30 M

SES

DAHİLİ MİKRAFON

KAMERA TİPİ

DOME

LENS TİPİ

MOTORİZE LENS

MİKRO SD CARD

512

2 MP Dual Light MD 2.0 Varifocal Dome Network Camera

High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Clear imaging against strong back light due to DWDR technology
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot)
Built-in microphone for real-time audio security
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67), vandal proof (IK08)

Camera
Image Sensor : 1/2.9" Progressive Scan CMOS
Max. Resolution : 1920 × 1080
Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time : 1/3 s to 1/100,000 s
Day & Night : IR cut filter
Angle Adjustment : Pan: 0° to 355°,tilt: 0° to 70°,rotate: 0° to 355°

Lens
Lens Type : Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV : 2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°
Lens Mount : Ø14
Iris Type : Fixed
Aperture : F1.6

DORI
DORI : D: 45.7 to 141.4 m, O: 18.1 to 56.1 m, R: 9.1 to 28.3 m, I: 4.6 to 14.1 m

Illuminator
Supplement Light Type : IR,White Light
Supplement Light Range : Up to 30 m
Smart Supplement Light : Yes
IR Wavelength : 850 nm

Video
Main Stream :
50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream :
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression :
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate : 32 Kbps to 16 Mbps
H.264 Type : Baseline Profile,Main Profile,High Profile
H.265 Type : Main Profile
Bit Rate Control : CBR,VBR
Scalable Video Coding (SVC) : H.264 and H.265 encoding
Region of Interest (ROI) : 1 fixed region for main stream

Audio
Audio Type : Mono sound
Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate : 8 kHz/16 kHz
Environment Noise Filtering : Yes

Network
Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Simultaneous Live View : Up to 6 channels
API : Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
Security : Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
User/Host :
Up to 32 users

3 user levels: administrator, operator, and user
Client : iVMS-4200,Hik-Connect
Web Browser :
Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch : Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) : Digital WDR
SNR : ≥ 52 dB
Image Enhancement : BLC,HLC,3D DNR
Privacy Mask : 4 programmable polygon privacy masks

Interface
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone : Yes,1 built-in microphone
Audio :
-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

-S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm : -S: 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key : Yes

Event
Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage : Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, (-S model) trigger alarm output

General
Power : 12 VDC ± 25%, 0.8 A, max. 9.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 12 W
Material : Base: metal, cover: plastic
Dimension : Ø121.5 mm × 97.6 mm (Ø4.78 × 3.84\")"
Package Dimension : 150 mm × 150 mm × 141 mm (5.90" × 5.90" × 5.6")
Weight : Approx. 540 g (1.2 lb.)
With Package Weight : Approx. 740 g (1.6 lb.)
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language : English, Ukrainian
General Function : Heartbeat,anti-banding,mirror,password protection,password reset via email

Approval
EMC :
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7
Safety :
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment :
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
Protection : IP67: IEC 60529-2013,IK08: IEC 62262:2002
