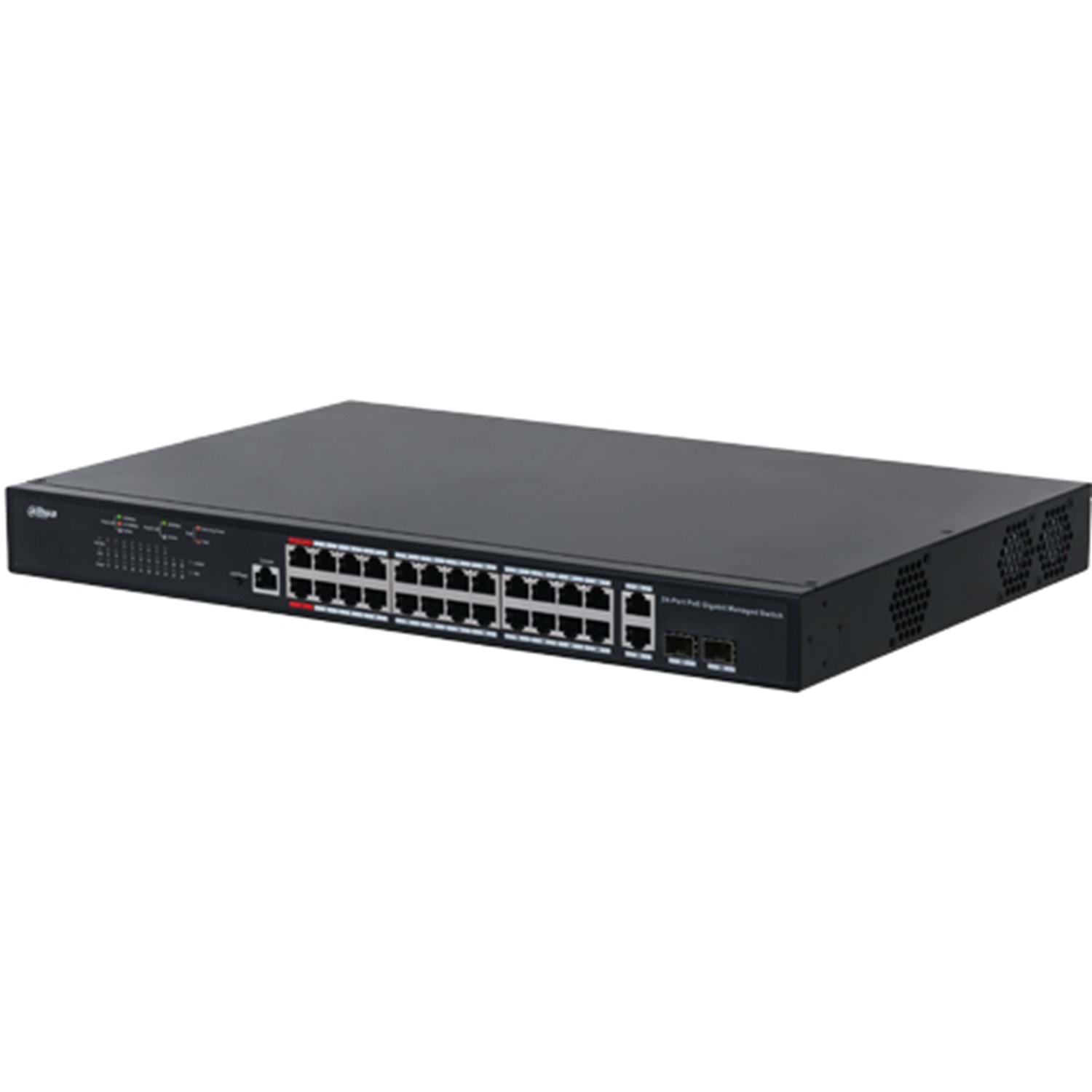

OUTLET DAHUA (PFS4226-24GT-230) 24 PORT GIGABIT POE (24GE POE + 2GE SFP, TOPLAM 230W POE) SWITCH

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

24

Ethernet Port Speed

10/100/1000 Mbps

Optical Port Speed

1000 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Optical Port Uplink Speed

1000 Mbps

Description of Function Slots

Port 1-24:24 × 10M/100M/1000MBase-T (PoE)

Port 25-26:2 × 10M/100M/1000MBase-T(uplink)(combo)

Port 25-26:2 × 1000M SFP(uplink)(combo)

Debugging

1 × Console port

Reset Button

1

Power Supply

Built-in power supply:
100–240 VAC,50/60 Hz, 4 A

Operating Temperature

0 °C to +45 °C (32 °F to 131 °F)

Operating Humidity

10%–90% (RH)

Storage Temperature

–20 °C to +70 °C (–4 °F to +158 °F)

Storage Humidity

5%–90% (RH), non-condensing

Power Consumption

270 W

Performance

Layer

Layer 2+

Management Type

Web (http and https protocol); CLI; SNMP V1/V2C/V3

Switching Capacity

56 Gbps

Packet Forwarding Rate

41.7 Mpps

Packet Buffer Size

12 Mbit

Jumbo Frame

10K

MAC Table Size

16K

VLAN Number

4K

VLAN Interface

32

IPv4 Routes

16

Dynamic ARP

303

Communication Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Feature

PoE Protocol

IEEE802.3af/ IEEE802.3at/ Hi-PoE/IEEE802.3bt

PoE Power

Port 1-2 ≤ 90 W,Port 3-24 ≤ 30 W, Total ≤ 230 W

PoE Power Consumption Management

Yes

PoE Pin Assignment

Yes

Long Distance PoE Transmission

Yes

Spanning Tree Protocol

STP; RSTP; MSTP

VLAN Function

Yes

Link Aggregation

Yes

Multicast

Yes

ARP

Yes

Equipment Management

Yes

General

Statics Protection

Air discharge: 8 kV

Lightning Protection

Common mode: 6 kV

Net Weight

4 kg (8.82 lb)

Gross Weight

5.0 kg (11.02 lb)

Product Dimensions

440 mm × 290.7 mm × 43.3 mm (17.32" × 11.44" × 1.71")

Packaging Dimensions

522 mm × 415 mm × 75 mm (20.55" × 16.34" × 2.95")

Casing Material

Electro Galvanized Steel Sheet

Installation

Desktop mount; rack mount

Certifications

CE; FCC

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10Ω/100m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90W

100

71.3

100

150

62

10

200

51

10

250

40

10

Hi-PoE 60W

100

53

100

150

50

10

200

47

10

250

37

10

IEEE802.3at 30W

100

25.5

100

150

25.5

10

200

25.5

10

250

25.5

10

Note: Data from this table was collected by Dahua test lab and is for reference only . If there is inconsistency between field application and the table, the field result shall prevail.
