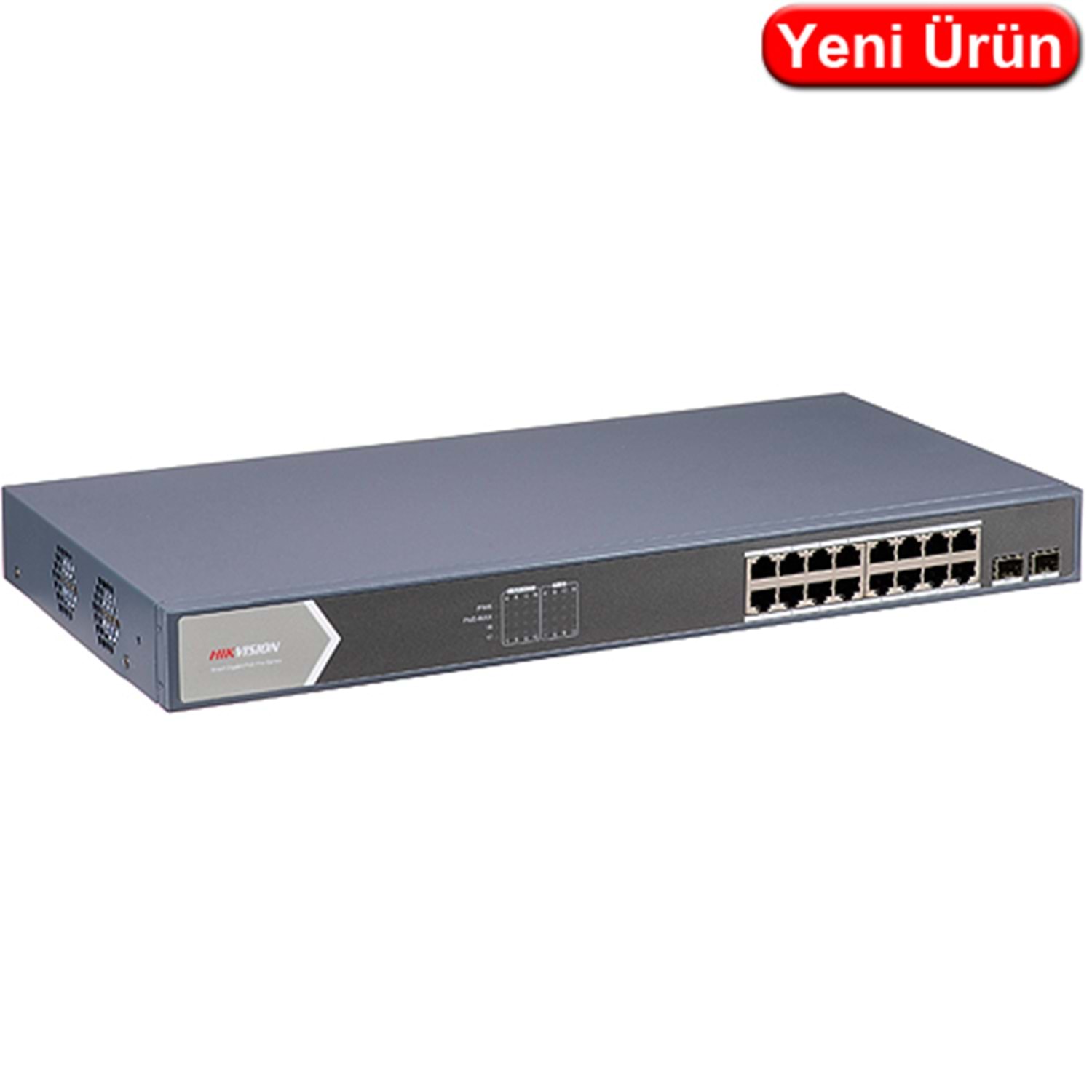

HIKVISION (DS-3E1518P-SI) 16 PORT GİGABIT POE 2xSFP COMBO 250W L2 YÖNETİLEBİLİR POE SWİTCH

Henüz Değerlendirilmemiş

Stok Kodu

: E34771

Stok Miktarı

: 1 ADET

Markası

: HIKVISION

Whatsapp ile Sipariş

POE

Var

PORT SAYISI

48 PORT

SFP (FİBER BAĞLANTI)

4 SFP

VERİ HIZI

(GB) 10/100/1000 Mbps

VERİ YÖNETİMİ

Yönetilebilir

DS-3E1518P-SI

16 Port Gigabit Smart POE Switch

16 × gigabit PoE ports, and 2 × gigabit fiber optical ports.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 KV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.
PoE watchdog to auto detect and restart the cameras that do not respond.
Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.

Network Parameters
Port Number : 16 × Gigabit PoE ports, and 2 × Gigabit fiber optical ports
Port Type : RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode :
Standard mode (default)

Extend mode
Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding Mode : Store-and-forward switching
MAC Address Table : 8 K
Internal Cache : 4.1 Mbits
Switching Capacity : 36 Gbps
Packet Forwarding Rate : 26.784 Mpps

PoE Power Supply
PoE Standard : IEEE 802.3af, IEEE 802.3at
PoE Power Pin : End-span: 1/2(-), 3/6(+)
PoE Port : Ports 1 to 16
Max. Port Power : 30 W
PoE Power Budget : 225 W

Software Function
Port Configuration : Port rate configuration, flow control, and ports enabling
Device Maintenance : Remote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
Link Aggregation : Static link aggregation supported
Long Range : Up to 300 m transmission
PoE Configuration :
PoE watchdog: Ports 1 to 16 auto detect and restart the cameras that do not respond.

PoE enabling: Support
Storm Control : Storm control of unknown unicast, multicast and broadcast
Port Mirroring : Support
QoS : WRR and SP scheduling and port priority
VLAN : 4094 VLANs
STP : STP and RSTP protocols
Port Isolation : Ports in isolation group cannot communicate with each other.
LLDP : LLDP protocol supported for port configuration, global configuration and neighbor discovery
Port Rate-Limiting : Rate-limiting for ingress and egress ports
SNMP : SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces

General
Dimension (W × H × D) : 440 mm × 220.8 mm × 44 mm (17.32” × 8.69” × 1.73”)
Storage Temperature : -40°C to 85°C (-40°F to 185°F)
Gross Weight : 3.31 kg (7.30 lb)
Net Weight : 2.735 kg (6.03 lb)
Power Consumption in Idle : 25 W
Shell : Metal material
Operating Temperature : -10°C to 55°C (14°F to 131°F)
Operating Humidity : 5% to 95% (no condensation)
Power Supply : 100 to 240 VAC, 50/60 Hz, Max. 4 A. 250 W
Max. Power Consumption : 250 W
Relative Humidity : 5% to 95% (no condensation)

Approval
EMC : FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
Safety : UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
Chemistry : CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
