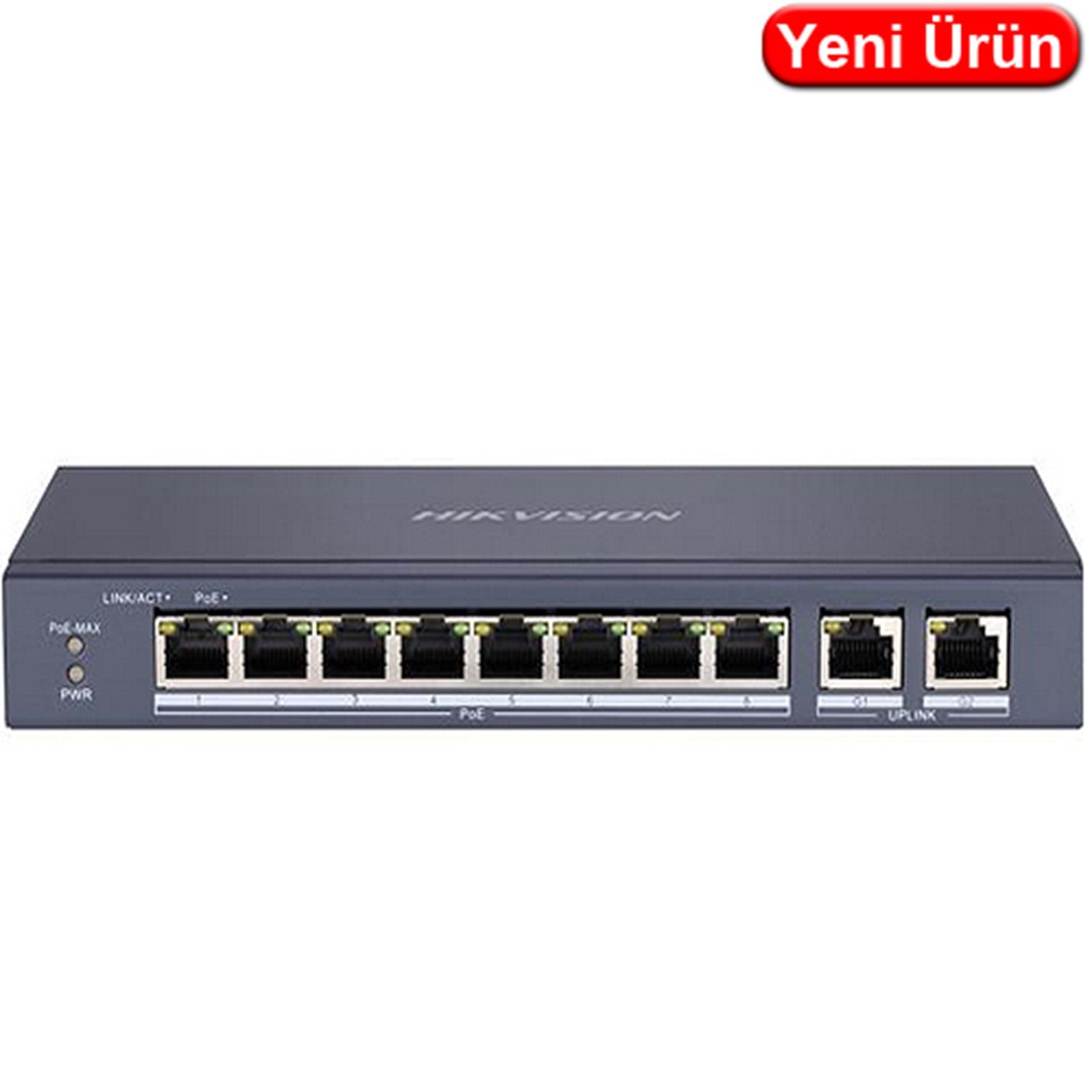

HIKVISION (DS-3E0310P-E/M) 8 PORT 10/100 POE 1xUPLINK +2xGIGABİT POE 60W YÖNETİLEMEZ POE SWİTCH

Henüz Değerlendirilmemiş

KDV : %20

Stok Kodu

: E34432

Stok Miktarı

: 17 ADET

Markası

: HIKVISION

Whatsapp ile Sipariş

8 Port Fast Ethernet Unmanaged POE Switch

8 × 10/100 Mbps PoE port, and 2 × Gigabit RJ45 port.
IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
6 KV surge protection for PoE ports.
Up to 300 m long-range transmission.
Wire-speed forwarding.
Store-and-forward switching.
Solid high-strength metal shell.
Reliable fan-free design.

General
Shell : Metal material
Net Weight : 0.555 kg (1.22 lb)
Gross Weight : 1.20 kg (2.65 lb)
Dimensions (W × H × D) : 217.6 mm × 103.35 mm × 27.8 mm (8.57'' × 4.07'' × 1.09'')
Operating Temperature : 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature : –40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity : 5% to 95% (no condensation)
Relative Humidity : 5% to 95% (no condensation)
Power Supply : 48 VDC, 1.35 A
Max. Power Consumption : 65 W
Power Consumption in Idle : 5 W
Installation Mode : Desk-Mounted,Wall-Mounted
Surge Protection : 6 KV

Network Parameters
Ports : 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
MAC Address Table : 8 K
Switching Capacity : 5.6 Gbps
Packet Forwarding Rate : 4.17 Mpps
Internal Cache : 4 Mbits

PoE Power Supply
PoE Standard : IEEE 802.3af;IEEE 802.3at
PoE Power Pin : 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port : PoE: Ports 1 to 8
Max. Port Power : 30 W
PoE Power Budget : 60 W

Dialing Function
Long Range :
Ports 1 to 8 : up to 300 m.

Long range performance may vary depend on camera model or cable condition.

Approval
EMC : FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety : UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry :
CE-RoHS (201165EU);

WEEE (201219EU);

Reach (Regulation (EC) No.19072006)
