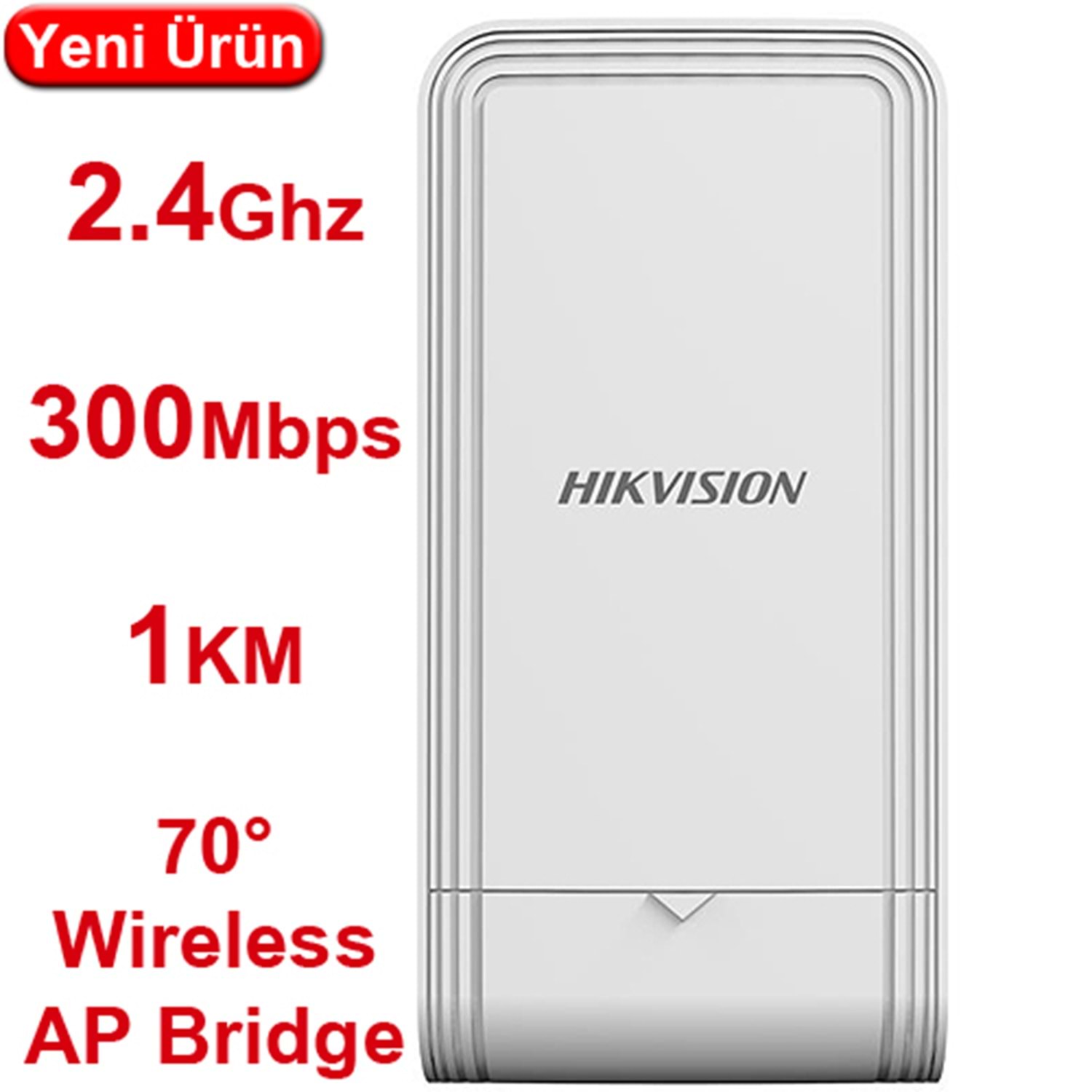

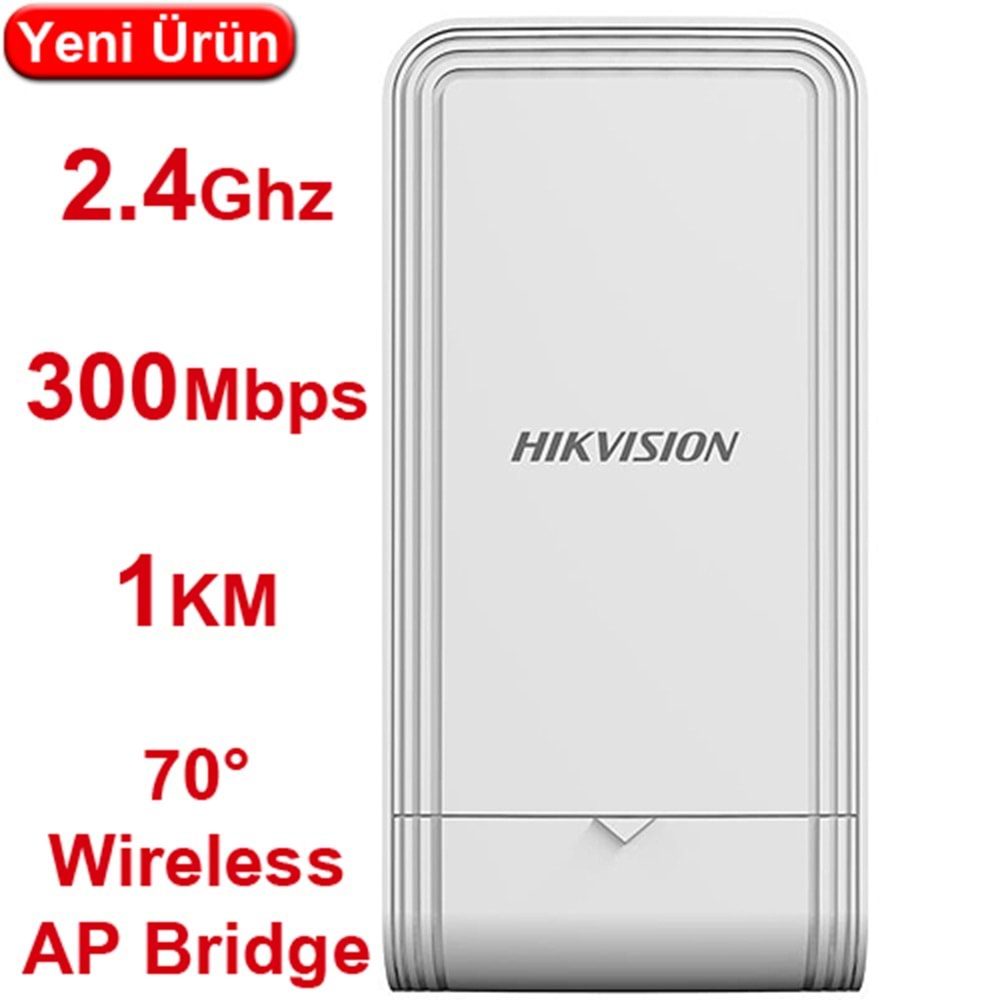

HIKVISION (DS-3WF0FA-2N/O) 2.4Ghz 300Mbps 70 DERECE 1KM OUTDOOR WIRELESS ACCESS POINT

Aradığınız her şey tek platformda...

Giriş Yap Hesap Oluştur

info@yildizguvenlik.com.tr 0543 9641205

Arama

HIKVISION (DS-3WF0FA-2N/O) 2.4Ghz 300Mbps 70 DERECE 1KM OUTDOOR WIRELESS ACCESS POINT

Henüz Değerlendirilmemiş

Stok Kodu

: E33078

Stok Miktarı

: 20+ ADET

Markası

: HIKVISION

Whatsapp ile Sipariş

2.4Ghz 300Mbps 1KM 70° Wireless AP Bridge

Up to 1 km wireless transmission distance
300 Mbps 802.11n wireless bridge
Built-in 7dBi 2 x 2 MIMO antenna
Visualized topology management
Real-Time alarm push technology

General
Product Dimensions : (W × H × D) 92 mm × 187 mm × 58 mm (3.62'' × 7.36'' × 2.28'')
Package Dimensions : (W × H × D)132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
Net Weight : 0.26 kg (0.57 lb)
Gross Weight : 0.6 kg (1.32 lb)
Packing List : Wireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,10/100 Mbps PoE Injector × 1,Binding Tape × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
Packing Method : Single unit packing
Working Temperature : -30 °C to 70 °C (-22 °F to 158 °F)
Working Humidity : 5% to 95% (no condensation)
Storage Temperature : -40 °C to 80 °C (-40 °F to 176 °F)
Storage Humidity : 5% to 95% (no condensation)
Installation Mode : Pole Mounting
Ingress Protection : IP55
Power Consumption : 1.95 W for typical (1-ch 2MP IPC), Max. 5 W

Wireless Parameter
Max. Transmission Rate of Air Interface : ≤ 300 Mbps
Wireless Standard : IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps)
Working Frequency Band : 2400 MHz ~ 2483.5 MHz
Antenna Gain : 7 dBi
Antenna Angle : (H) Beamwidth [3 dB] 65° (V) Beamwidth [3 dB] 65°
Transmitting Power : 17±2 dBm (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity : -87±2 dBm @HT40 MCS0
Throughput Rate : Point to point: Support up to 8-ch IPC (2MP) in Max. 1 KM distance and Max. 40 Mbps bandwidth,Point to multi-point: Support up to 4-ch IPC (2MP) in Max. 1 KM distance and Max. 20 Mbps bandwidth within 65° ± 5°, Max. 1 to 4 PTMP connection

Hardware Parameter
Network Interface : 2 × 10/100 Mbps RJ45 ports
LED Indicator : Power indicator,LAN indicator,Signal intensity indicator
Reset : Hardware resetting button
Power Supply : 12-24 VDC Passive PoE

Software Function
Application Function : TDMA,DFS,TPC,IFM,IPM
Channel Width : 10/20/40 MHz
Channel Selection : Auto/manual selection
Network Protocol : NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
Security Mode : WPA2-PSK
Security Mechanism : Wireless network name hidden
Management Method : Web,iVMS-4200,HCP
Upgrade : Web,iVMS-4200,HCP
System Log : Syslog,Control center information

Approval
EMC : CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety : UL (62368),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry : CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio : EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
