HIKVISION (DS-KH6320-WTE1) 7 INC DAİRE İÇİ MONİTÖR (DAİRELER ARASI GÖRÜŞME DOKUNMATİK BUTON)

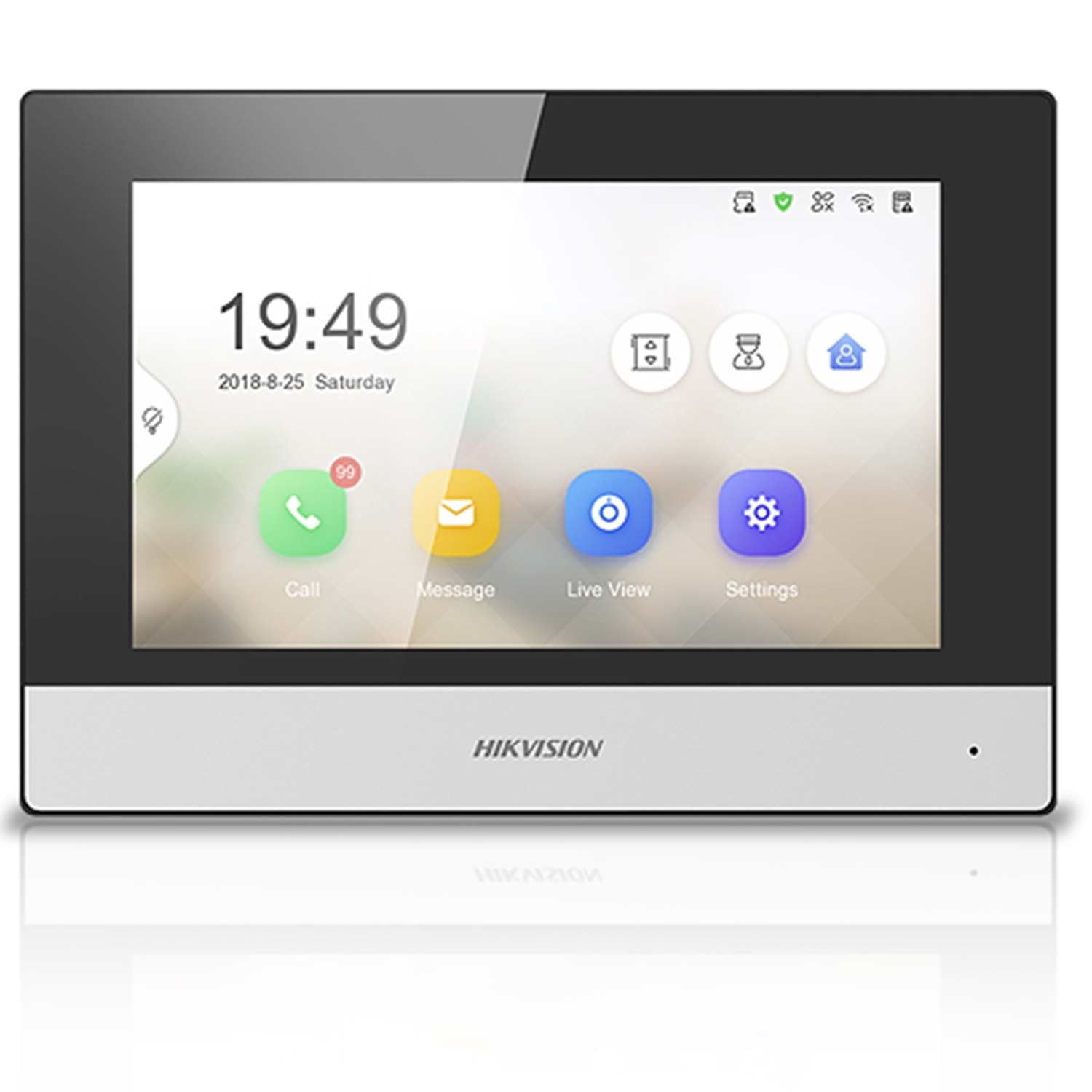

KH6 Series IP-Based Indoor Station

• New UI V2.0: User friendly design
• 7-inch colorful touch screen with resolution 1024 × 600
• Standard PoE
• Stores messages and capture pictures in the TF card
• Remote unlocking via the client software or the mobile client
• Views live videos of door stations and linked cameras

• System parameters
• Operating system : Embedded Linux operation system
• ROM : 32 MB
• RAM : 128 MB
• CPU : Embedded processor

• Display parameters
• Screen size : 7-inch colorful TFT screen
• Operation method : Capacitive touch screen
• Type : Colorful TFT screen
• Resolution : 1024 × 600

• Video parameters
• Lens : /
• Resolution : /
• FOV : /
• WDR : /
• Video compression standard : DS-KH6320-WTE1
• Focal length : /

• Audio parameters
• Audio compression standard : G.711 U
• Audio input : Built-in omnidirectional microphone
• Audio output : Built-in loudspeaker
• Audio compression bitrate : 64 Kbps
• Audio quality : Noise suppression and echo cancellation
• Volume adjustment : Adjustable

• Capacity
• Event capacity : 200
• Notice capacity : 16
• Linked indoor extensions capacity : 5
• Linked doorphone capacity : 8

• Network parameters
• Communication protocol : TCP/IP, SIP, RTSP
• Wired network : 10/100 Mbps self-adaptive
• Wi-Fi standard : Wi-Fi 802.11 b/g/n
• Bluetooth version : /
• 3G/4G standard : /
• Zigbee : /

• Device interfaces
• Alarm input : 8-ch alarm inputs
• Network interface : 1 RJ-45 10/100 Mbps self-adaptive
• TAMPER : /
• RS-485 : 1
• USB : /
• TF card : Max to 32 G, SD 2.0 or lower version
• Alarm output : 2
• Power interface : 1

• General
• Button : 0
• Installation : Surface mounting
• Indicator : 0

• With package: 683 g

  Without package: 355 g

• Protective level : /
• Working temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity : 10% to 90%
• Dimensions : 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
• Battery : /
• Application environment : Indoor
• Power consumption : ≤ 6 W
• Language : English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish,
