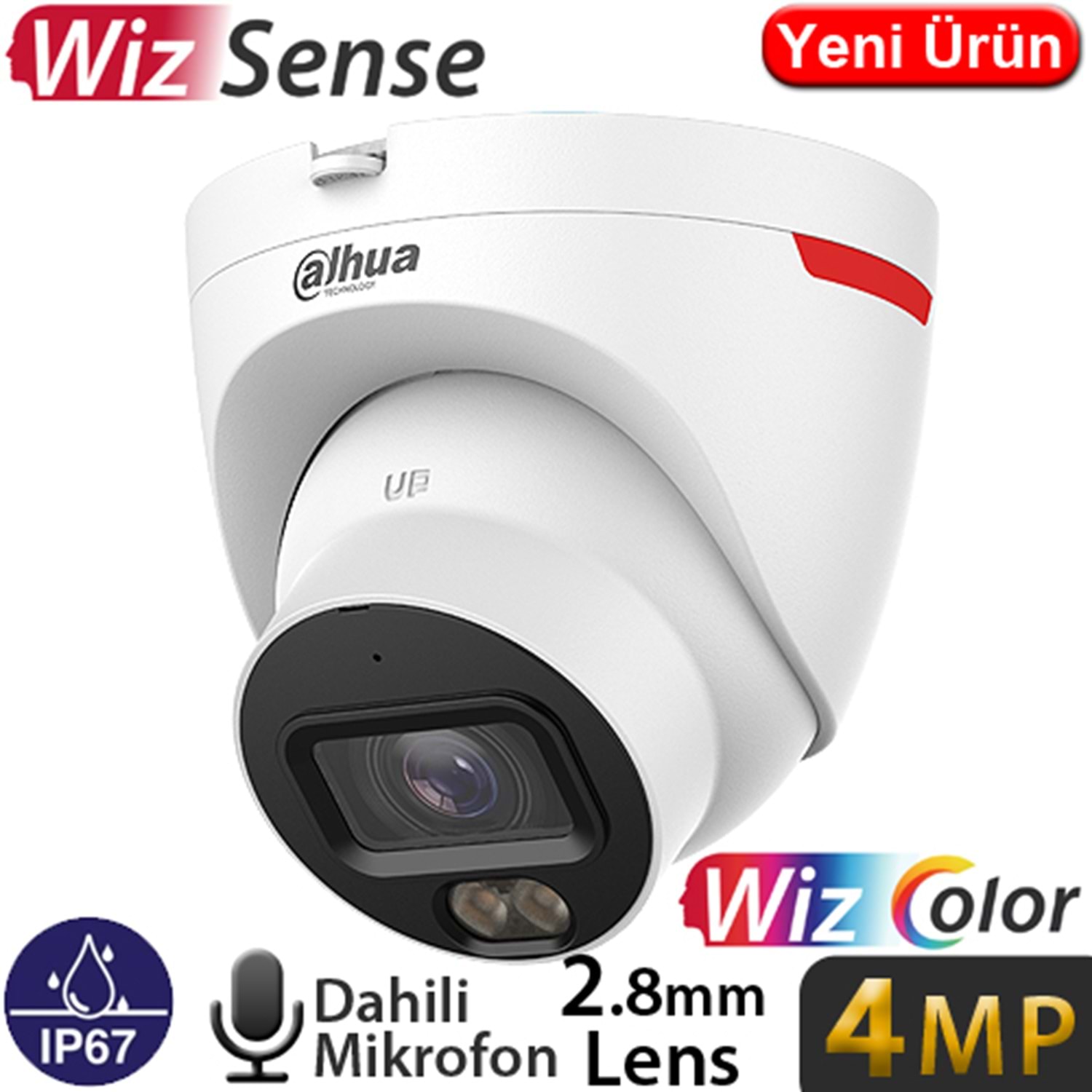

DAHUA (IPC-HDW2449TL-S-PRO) 4MP 2.8MM AKILLI ÇİFT ISIKLI WIZCOLOR IP67 SMD PLUS DAH MİK.BULLET-30MT

Camera

Image Sensor



1/1.8" CMOS

Max. Resolution



2688 (H) × 1520 (V)

ROM



128 MB

RAM



256 MB

Scanning System



Progressive

Electronic Shutter Speed



Auto/Manual 1/3 s–1/100,000 s

Min. Illumination



0.0005 lux@F1.0

S/N Ratio



>56 dB

Illumination Distance



Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control



Auto;Manual

Illuminator Number



2 (Warm light)

Angle Adjustment



Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

Lens Type



Fixed-focal

Lens Mount



M16

Focal Length



2.8 mm; 3.6 mm

Max. Aperture



F1.0

Field of View



2.8 mm: H: 112°; V: 60°; D: 134°

3.6 mm: H: 94°; V: 50°; D: 113°

Iris Control



Fixed

Close Focus Distance



2.8 mm: 1.7 m (5.58 ft)

3.6 mm: 2.6 m (8.53 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

57.9 m

( 189.96 ft)

23.2 m

( 76.12 ft)

11.6 m

( 38.06 ft)

5.8 m



( 19.03 ft)

3.6 mm

70.3 m

( 230.64 ft)

28.1 m

( 92.19 ft)

14.1 m

( 46.26 ft)

7.0 m



( 22.97 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)



Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human);

SMD



SMD Plus

Smart Search



Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression



H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec



Smart H.265+; Smart H.264+

Video Frame Rate



Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps)

sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability



2 streams

Resolution



4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control



VBR;CBR

Video Bit Rate



H.264: 32 kbps–6144 kbps;

H.265: 12 kbps–6144 kbps

Day/Night



Color/B/W

BLC



Yes

HLC



Yes

WDR



120 dB

White Balance



Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control



Auto/Manual

Noise Reduction



3D NR

Motion Detection



OFF/ON (4 areas, rectangular)

Region of Interest (RoI)



Yes (4 areas)

Smart Illumination



Yes

Image Rotation



0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror



Yes

Privacy Masking



4 areas

LDC



Yes

Alarm

Alarm Event



No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port



RJ-45 (10/100 Base-T)

SDK and API



Yes

Network Protocol



IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration

Interoperability



ONVIF (Profile S & Profile G & Profile T); CGI

User/Host



20 (Total bandwidth: 48 M)

Storage



FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser



IE; Chrome; Firefox

Management Software



Smart PSS Lite; DSS; DMSS

Mobile Client



iOS;Android

Cyber Security



Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification

Certifications



CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

Power

Power Supply



12 VDC; PoE

Power Consumption



Basic: 2.0 W (12 VDC); 2.5 W (PoE);

Max.: 5.3 W (12 VDC); 6.4 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity)

Environment

Operating Temperature



–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity



≤95% (RH), non-condensing

Storage Temperature



–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity



≤95% (RH), non-condensing

Protection



IP67

Structure

Casing Material



Inner core: Metal;

Cover: Plastic

Product Dimensions



109.5 mm × Φ109.9 mm (4.31" × Φ4.33")

Net Weight



0.42 kg (0.93 lb)

Gross Weight



0.59 kg (1.30 lb)
