HIKVISION (DS-2CD1643G2-LIZSU/SL) 4MP 2.7-13.5MM MOT. LENS DUAL LIGHT IP66 IK10 512GB SD BULLET KAM.

Henüz Değerlendirilmemiş

Stok Kodu

: E33056

Stok Miktarı

: 1 ADET

Whatsapp ile Sipariş

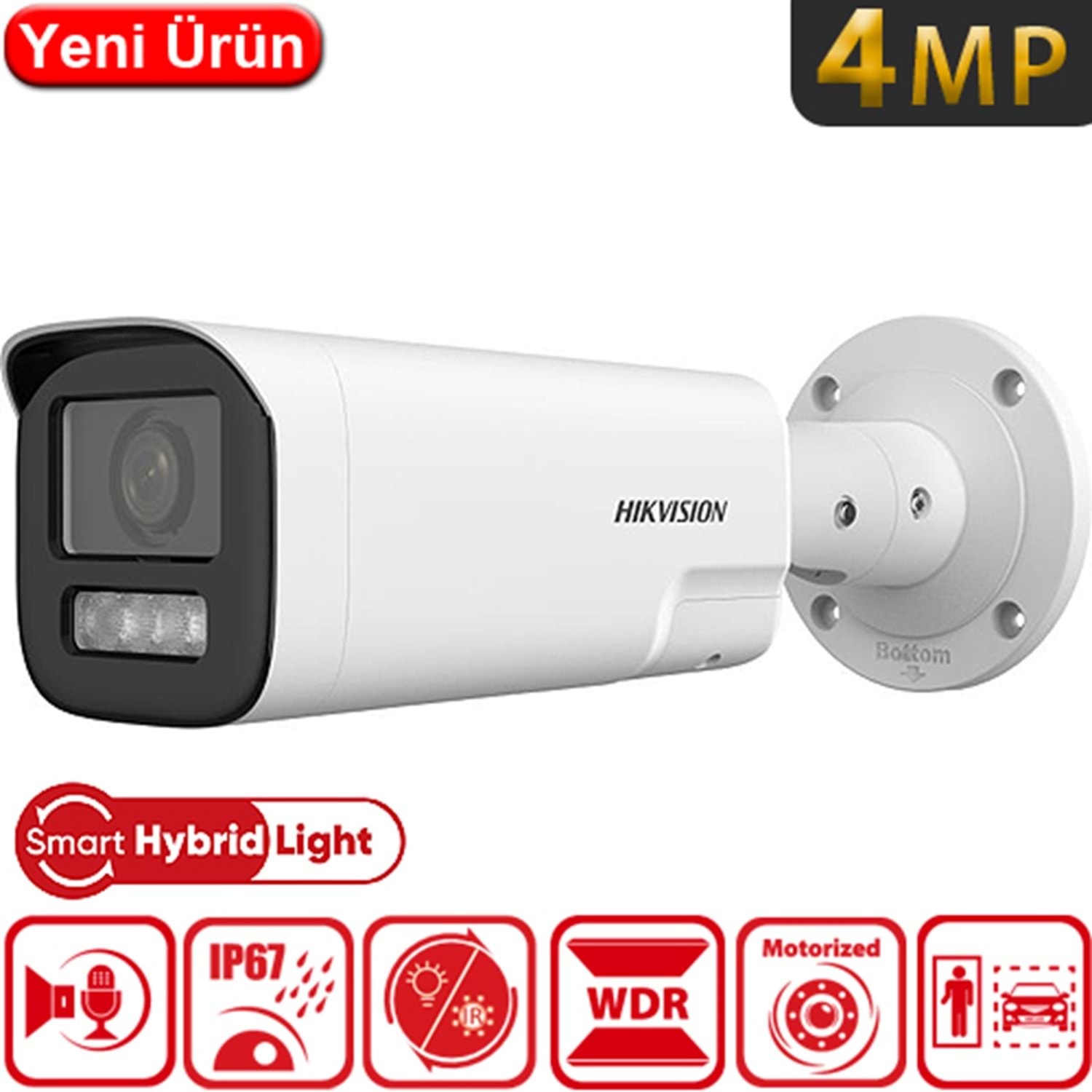

4 MP Dual Light MD 2.0 Varifocal Bullet Network Camera

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Clear imaging even with strong back lighting due to 120 dB WDR technology
Efficient H.265+ compression technology
Support on-board storage up to 512 GB (SD card slot)
Provide real-time security via built-in two-way audio
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67)

Camera
Image Sensor : 1/3" Progressive Scan CMOS
Max. Resolution : 2560 × 1440
Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time : 1/3 s to 1/100,000 s
Day & Night : IR cut filter
Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
Lens Type : Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV : 2.8 to 12 mm, horizontal FOV 95.9° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.7° to 33.5°
Lens Mount : Ø14
Iris Type : Fixed
Aperture : F1.6

DORI
DORID: 68 to 200 m, O: 27 to 79 m, R: 13.6 to 40 m, I: 6.8 to 20 m

Illuminator
Supplement Light Type : IR,White Light
Supplement Light Range : Up to 50 m
Smart Supplement Light : Yes
IR Wavelength : 850 nm

Video
Main Stream :
50 Hz:

20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)
Sub-Stream :
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression :
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate : 32 Kbps to 8 Mbps
H.264 Type : Baseline Profile,Main Profile,High Profile
H.265 Type : Main Profile
Bit Rate Control : CBR,VBR
Scalable Video Coding (SVC) : H.264 and H.265 encoding
Region of Interest (ROI) : 1 fixed region for main stream

Audio
Audio Type : Mono sound
Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate : 8 kHz/16 kHz
Environment Noise Filtering : Yes

Network
Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Simultaneous Live View : Up to 6 channels
API : Open Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK
Security : Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
User/Host :
Up to 32 users

3 user levels: administrator, operator, and user
Client : iVMS-4200,Hik-Connect
Web Browser :
Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch : Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) : 120 dB
SNR : ≥ 52 dB
Image Enhancement : BLC,HLC,3D DNR
Privacy Mask : 4 programmable polygon privacy masks

Interface
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage :

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone : Yes,1 built-in microphone
Built-in Speaker : Max. power consumption: 2.0 W, max. sound pressure level: 10 cm: 95 dB.
Audio :
-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

-S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm : -S: 1 input, 1 output (max. 12 VDC, 30mA)
Reset Key : Yes

Event
Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage :
Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light, (-S model) trigger alarm output

General
Power :
12 VDC ± 25%, 0.9 A, max. 11 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 12.9 W
Dimension :

Ø105 mm × 285.8 mm (Ø4.13 × 11.25\")"
Package Dimension : 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
Weight : Approx. 780 g (1.72 lb.)
With Package Weight : Approx. 1390 g (3.1 lb.)
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language : English, Ukrainian
General Function : Heartbeat,mirror,password reset via email,password protection,anti-banding
Flashing Light : Yes

Approval
EMC :
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7
Safety :
UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment :
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
Protection : IP67: IEC 60529-2013
