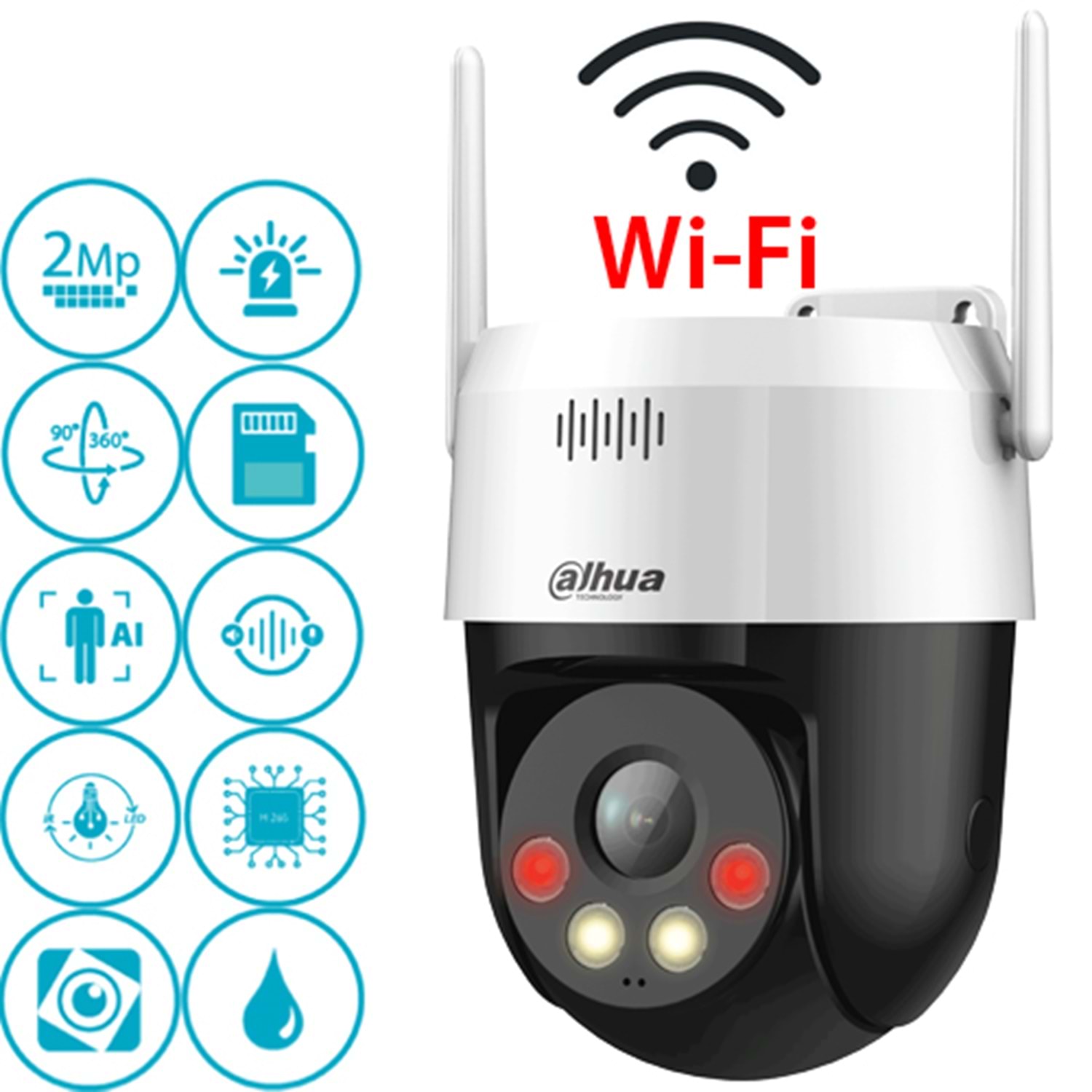

OUTLET DAHUA (SD2A200HB-GN-AW-PV-0400-S2) 2MP DAH.MİK.WİFİ SMART LED FULL COLOR PTZ KAMERA 30MT

Camera

Image Sensor

1/2.8" CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Electronic Shutter Speed

1/3 s–1/100,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.05 lux@F2.0
B/W: 0.005 lux@F2.0
0 lux (IR/white light on)

Illumination Distance

30 m (98.42 ft) (IR)
30 m (98.42 ft) (white light)

Illuminator On/Off Control

Manual; auto; off

Illuminator Number

2 (IR light)
2 (White light)

Lens

Focal Length

4.0 mm

Max. Aperture

F2.0

Field of View

H: 86.8°
V: 47.1°
D: 102.2°

Close Focus Distance

0.6 m (1.97 ft)

Iris Control

Fixed

DORI Distance

Detect

Observe

Recognize

Identify

53.6 m (175.85 ft)

21.4 m (70.21 ft)

10.7 m (35.10 ft)

5.4 m

(17.72 ft)

PTZ

Pan/Tilt Range

Pan: 0° –345°
Tilt: 0° –80°

Manual Control Speed

Pan: 0.1°–74°/s
Tilt: 0.1°–36.4°/s

Preset Speed

Pan: 62°/s
Tilt: 36.3°/s

Preset

300

Power-off Memory

Yes

Idle Motion

Preset

Smart Event

IVS

Tripwire; intrusion

Human Detection

Yes

Active Deterrence

Light Warning

White light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low

Sound Warning

Sound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s

Video

Video Compression

H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+

Streaming Capability

2 streams

Resolution

1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 1080p/1.3M/720p (1–25/30 fps)
Sub stream: D1/CIF (1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 256–8192 kbps
H265: 144–5632 kpbs

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto; manual; tracking; indoor; outdoor; sodium lamp; street lamp; natural light

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Image Rotation

180°

S/N Ratio

≥ 55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

Yes

Wi-Fi–Wireless Standard

802.11n; IEEE802.11b; 802.11g

Wi-Fi–Wireless Frequency Range

2.4 GHz

Wi-Fi–Wireless Transmission Rate

150 Mbps

Network Protocol

UDP; FTP; RTMP; IPv6; IPv4; IP Filter; DNS; RTCP; HTTP; NTP; SSL; DHCP; RTP; SMTP; HTTPS; TCP/IP; RTSP; DDNS; ARP

Interoperability

CGI; SDK; ONVIF (Profile S&T); P2P

Streaming Method

Unicast/Multicast

User/Host

20

Storage

Micro SD card (512 GB); FTP

Browser

IE: IE 7 and later versions; Chrome; Firefox; Safari

Management Software

DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE:EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1

FCC:47 CFR FCC Part15, Subpart B, ANSI C63.4:2014

Port

Audio Input

1 channel (built-in mic)

Audio Output

1 channel (built-in speaker)

Two-way Audio

Yes

Alarm Linkage

Capture; preset; recording; audio; sending email

Alarm Event

Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Audio I/O

1/1

Power

Power Supply

12 VDC/1.5 A±10%

Power Consumption

Basic: 3.5 W
Max.: 11 W (illuminator + PT + speaker + heating glass)

Environment

Operating Temperature

–30 °C to +55 °C (–22 °F to +131 °F)

Operating Humidity

≤ 95%

Protection

IP66, TVS 2000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

140.5 mm × Φ111.0 mm (5.53" × Φ4.45")

Net Weight

0.5 kg (1.10 lb)

Gross Weight

1 kg (2.20 lb)
