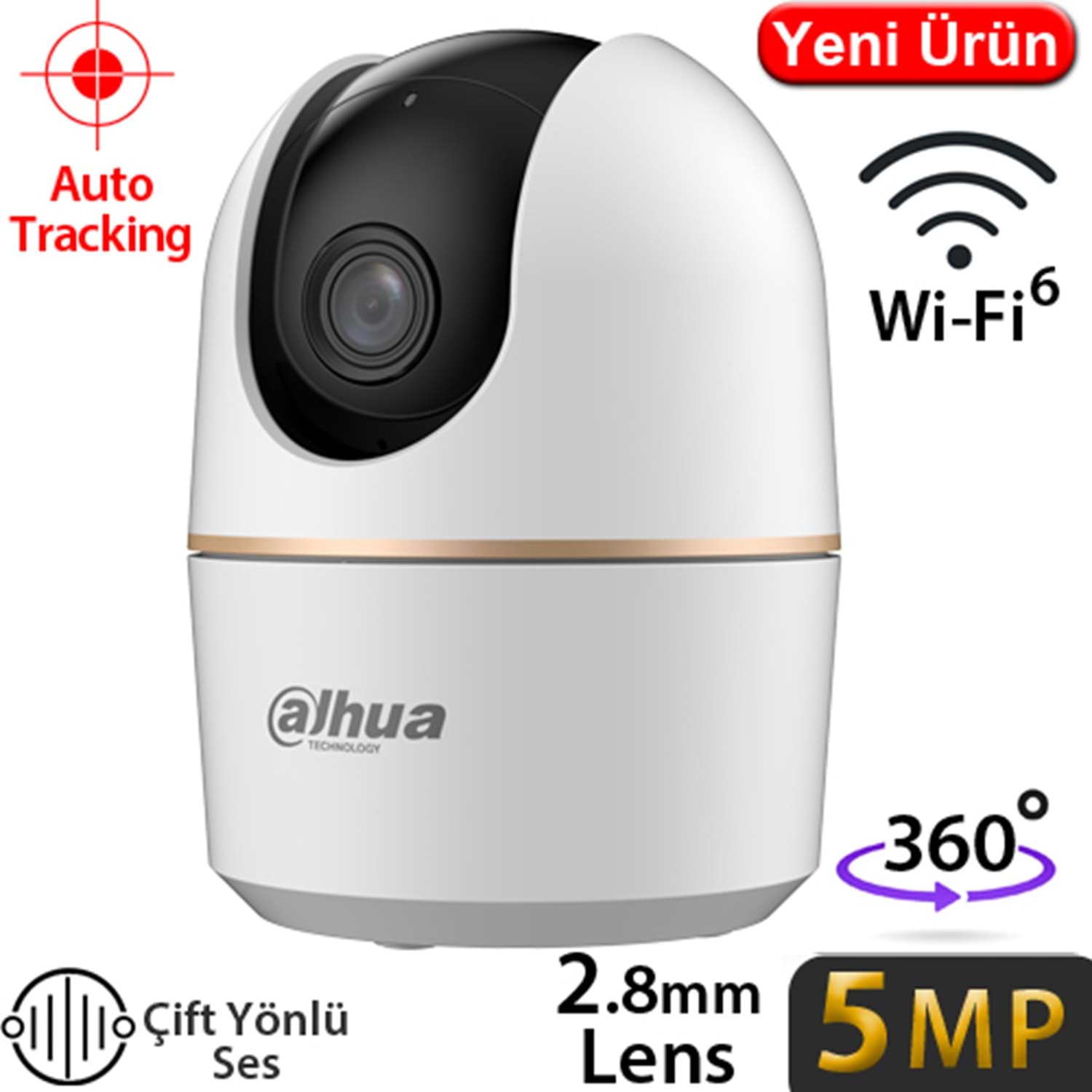

DAHUA (HPT1530DA-STW) 5MP İÇ MEKAN Wİ-Fİ PAN-TİLT KAMERA

Camera

Image Sensor

1/3.2" CMOS

Max. Resolution

5 MP

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Illumination Distance

Up to 15 m (49.21 ft) (IR)

Illuminator On/Off Control

Auto

Illuminator Number

1 (IR LED)

Angle Adjustment

Pan: 0° to 355°;
Tilt: -5° to +80°

Lens

Max. Aperture

3.6 mm: F2.0

Field of View

3.6 mm: H: 79°; V: 43°; D: 94°

Video

Video Compression

H.265

Video Frame Rate

Main stream: 1920 × 1080 @25 fps

Sub stream: 640 × 480 @25 fps

Resolution

5MP

Video Bit Rate

H.265: 80 kbps–4096 kbps

Day/Night

Auto(ICR)/Color/B/W

WDR

DWDR

Motion Detection

OFF/ON (4 areas, rectangular)

Image Rotation

0°/180°

Audio

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; motion detection; audio detection

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11b/g/n 2.4–2.4835 GHz, 2.4 G

Storage

Micro SD card (up to 256 GB)

Management Software

DMSS

Mobile Client

iOS;Android

Certification

Certifications

CE

Power

Power Supply

5 VDC, 1A

Power Consumption

Basic: 1.7 W;
Max. (video stream acquiring + IR + PTZ Rotation): 3.5 W

Environment

Operating Temperature

–10 °C to +45 °C (+14 °F to +113 °F)

Operating Humidity

≤ 95%

Structure

Casing Material

Plastic

Product Dimensions

φ77.8 mm × 108.1 mm (φ3.06" × 4.26")

Net Weight

204.2 g (0.45 lb)
