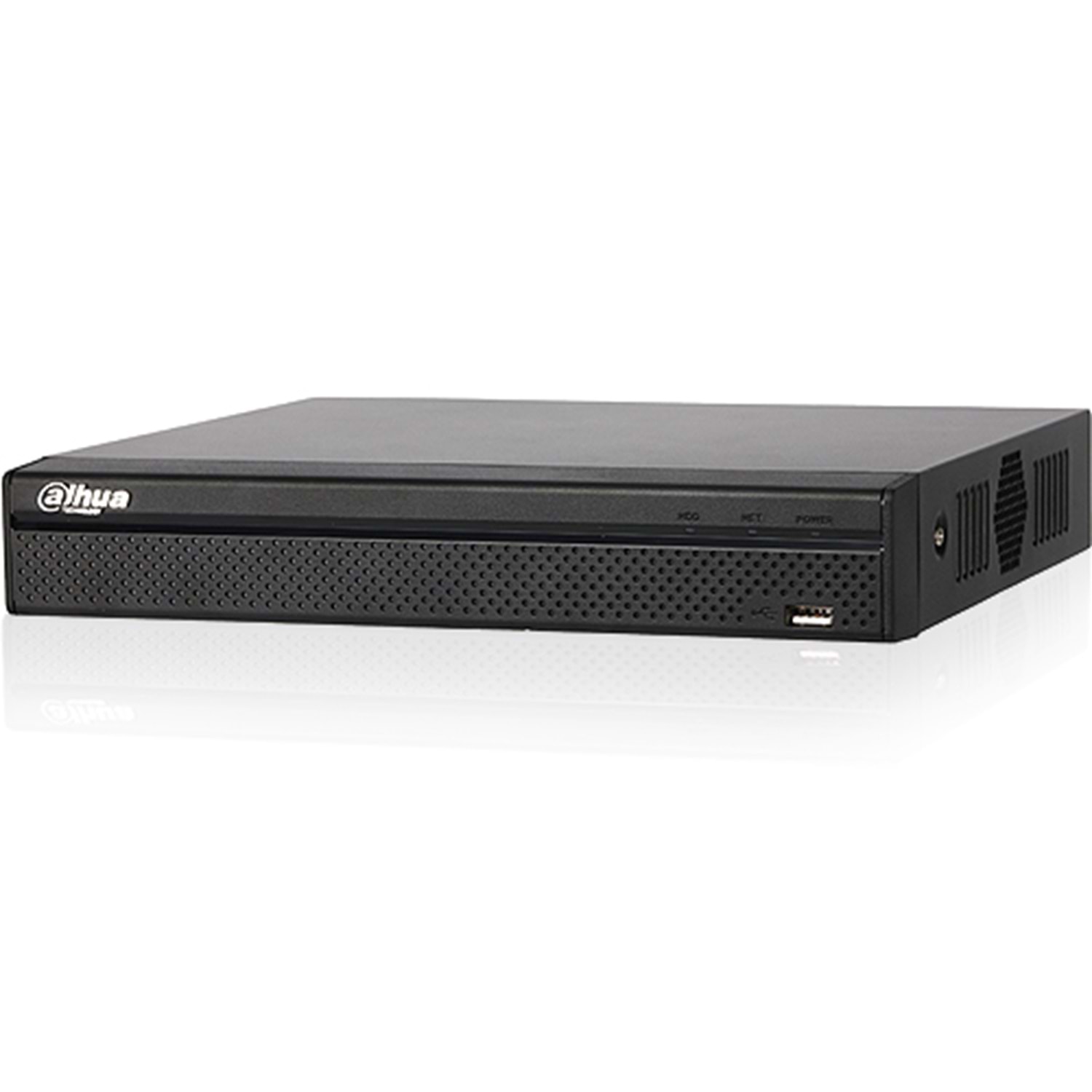

OUTLET DAHUA (NVR2104HS-P-T) 4 KANAL 1x8TB 8MP/1080P H265 1xHDMI 1xVGA 2xUSB 1xRJ45 POE NVR KAYIT

Henüz Değerlendirilmemiş

Stok Kodu

: Y7306043

Stok Miktarı

: 13 ADET

Whatsapp ile Sipariş

4 Kanal H.265 NVR (1x8TB SATA)
İzleme/Kayıt Bant Genişliği: 80Mbps/80Mbps, 4 Port PoE(Tak-Çalıştır)
8 MP'ye kadar çözünürlük, 1Kanal@8MP/4Kanal@1080p Kod Çözümleme(Decoding)
Çift Yönlü Konuşma, P2P
1 HDMI, 1 VGA, 2 USB, 1 RJ45 port(10/100Mbps)

New 4.0 user interface
P2P remote surveillance, video play on mobile device
4–ch@1080P(30FPS), self-adaptive decoding capability
Support for mainstream cameras of ONVIF and RTSP protocol
Smart H.265+/Smart H.264+/H.265/H.264
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P
Remote configuration and management of IPCs, such as setting pa rameters, acquiring information and upgrading IPCs of the

same model in batches

DHCP(Dynamic Host Configuration Protocol), HTTP(Hypertext Transfer Protocol), NTP(Network Time Protocol) and DDNS(Dynamic

Domain Name System)

System		NVR2104HS-P-T
Main Processor	:	Industrial-grade embedded processor
Operating System	:	Embedded Linux
Operation Interface	:	Web/operating in local GUI
Video
Access Channel	:	4 channels
Network Bandwidth	:	80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
Resolution	:	8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
Decoding Capability	:	1–ch@8MP(30FPS) or 1–ch@5MP(30FPS) or 2–ch@4MP(30FPS) or 2–ch@3MP(30FPS) or 4–ch@1080P(30FPS)
Video Output	:	1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P
Multi-screen Display	:	1/4
Third Party Camera Access	:	Onvif, RTSP
Compression
Video	:	Smart H.265+/H.265/Smart H.264+/H.264
Audio	:	PCM/G711A/G711U/G726/AAC
Network
Network Protocol	:	HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP,DNS, P2P
Mobile Phone Access	:	iDMSS(iOS), gDMSS(Android)
Access Standard	:	ONVIF(profile T/profile S/profile G),CGI,SDK
Browser	:	Chrome, IE9 or above, Firefox
Record Playback
Multi-channel Playback	:	Up to 4 channels playback
Record Mode	:	Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
Storage	:	Local HDD and network
Backup	:	USB device
Playback Function	:	1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off
Alarm
General Alarm	:	Motion detection, privacy masking, video loss, PIR alarm, IPC alarm
Anomaly Alarm	:	Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
Alarm Linkage	:	Video recording, snapshot, log, preset, tour
External Port
HDD	:	1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB	:	1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI	:	1
VGA	:	1
RCA Input	:	1
RCA Output	:	1
Alarm	:	None
Network	:	1 RJ–45 port (10/100 Mbps), 4 RJ–45 ports with PoE power supply (10/100 Mbps)
General Parameter
Power Supply	:	DC48V/53V, 1.25A/1.22A
Power Consumption	:	Total output of NVR is ≤ 10W (without HDD) Total output power of PoE is 36W, the maximum output power of a single port is 25.5W
Net Weight	:	0.84 kg (1.85 lb)
Gross weight	:	1.86 kg (4.10 lb)
Product Dimensions	:	260 mm×225 mm×47.6 mm (W × L × H)
Box Dimensions	:	87 mm×331 mm×312 mm (W × L × H)
Operating Temperature	:	-10°C to 45°C (+34°F to +113°F)
Storage Temperature	:	0°C to 40°C (+32°F to +104°F)
Operating Humidity	:	10%~93%
Storage Humidity	:	30%~85%
Operating Altitude	:	3000 m (9843 ft)
Installation	:	Desktop mounting
Certification	:	CE
