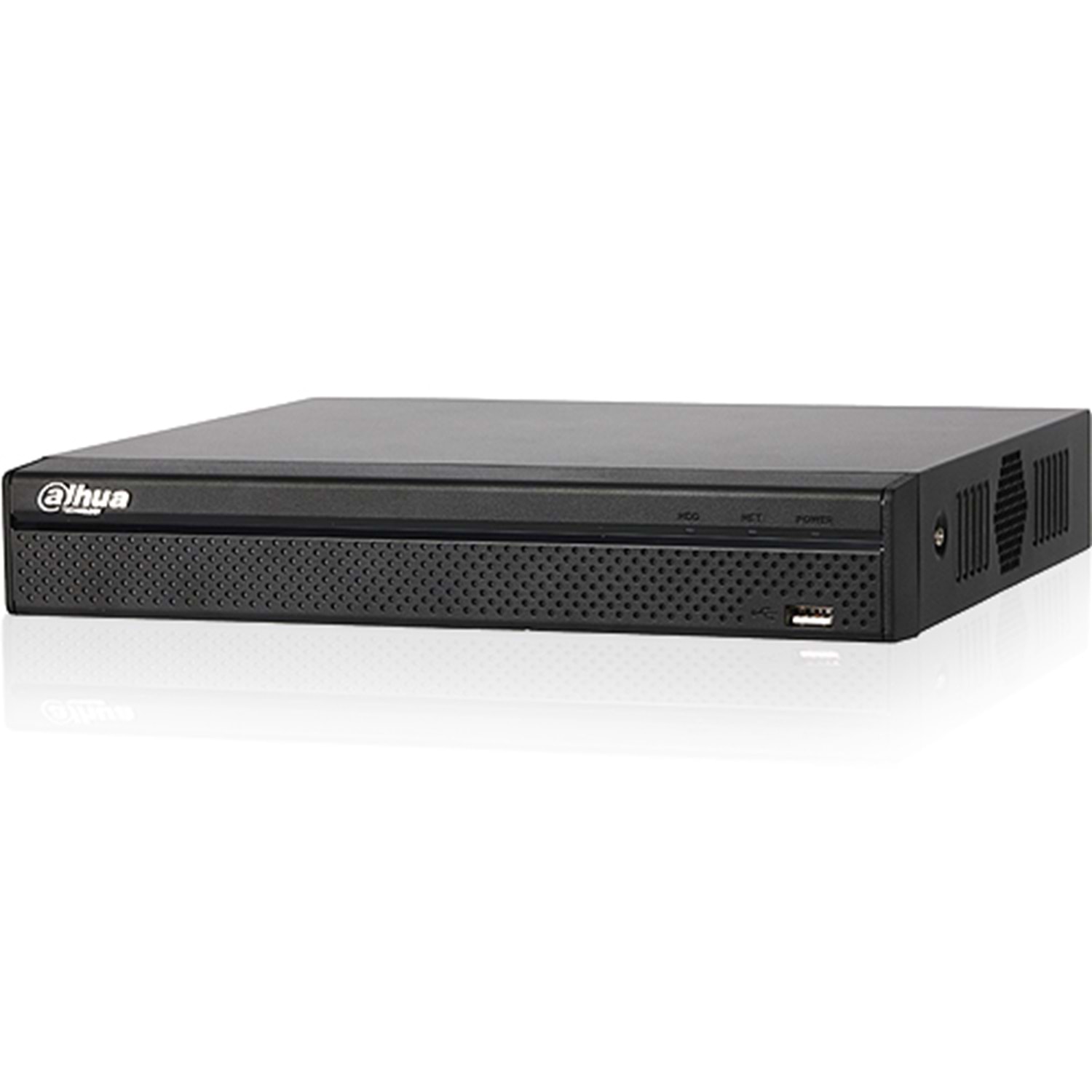

DAHUA (NVR2104HS-T) 4 KANAL 1080P 1x8TB 8MP/1080P H265 1xHDMI 1xVGA 2xUSB 1xRJ45 NVR KAYIT

Henüz Değerlendirilmemiş

Stok Kodu

: Y7306042

Stok Miktarı

: 20+ ADET

Whatsapp ile Sipariş

4 Kanal H.265 NVR (1x8TB SATA)
İzleme/Kayıt Bant Genişliği: 80Mbps/80Mbps
8 MP'ye kadar çözünürlük, 1Kanal@8MP/4Kanal@1080p Kod Çözümleme(Decoding)
Çift Yönlü Konuşma, P2P
1 HDMI, 1 VGA, 2 USB, 1 RJ45 port(10/100Mbps)

New 4.0 user interface

· P2P remote surveillance, video play on mobile device

· 4–ch@1080P(30FPS), self-adaptive decoding capability

· Support for mainstream cameras of ONVIF and RTSP protocol

· Smart H.265+/Smart H.264+/H.265/H.264

· VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P

· Remote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batches

· DHCP(Dynamic Host Configuration Protocol), HTTP(Hypertext Transfer Protocol), NTP(Network Time Protocol) and DDNS(Dynamic Domain Name System) and public areas.This NVR is suitable for places such as retail stores, families, courtyards

Technical Specification

System

Main Processor : Industrial-grade embedded processor

Operating System : Embedded Linux

Operation Interface : Web/operating in local GUI

Video

Access Channel : 4 channels

Network Bandwidth : 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.

Resolution : 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF

Decoding Capability : 1–ch@8MP(30FPS) or 1–ch@5MP(30FPS) or
2–ch@4MP(30FPS) or 2–ch@3MP(30FPS) or
4–ch@1080P(30FPS)

Video Output : 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P

Multi-screen Display : 1/4

Third Party Camera Access : Onvif, RTSP

Compression

Video Smart : H.265+/H.265/Smart H.264+/H.264

Audio : PCM/G711A/G711U/G726/AAC

Network

Network Protocol : HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP,DNS, P2P

Mobile Phone Access : iDMSS(iOS), gDMSS(Android)

Access Standard : ONVIF(profile T/profile S/profile G),CGI,SDK

Browser : Chrome, IE9 or above, Firefox

Record Playback

Multi-channel Playback : Up to 4 channels playback

Record Mode : Priority of record mode: Manual recording > alarm recording > motion detection recording > timedrecording

Storage Local : HDD and network

Backup : USB device

Playback Function : 1. Play, pause, stop, fast forward, fast backward, rewind,play by frame
2. Full screen, backup (cut/file), partially enlarge, audioon/off

Alarm

General Alarm : Motion detection, privacy masking, video loss, PIR alarm,IPC alarm

Anomaly Alarm : Front-end device going offline, storage error, full storage,IP conflict, MAC conflict, login lock, network security anomaly

Alarm Linkage : Video recording, snapshot, log, preset, tour

External Port

HDD : 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB : 1 front USB 2.0 port, 1 rear USB 2.0 port

HDMI : 1

VGA : 1

RCA Input : 1

RCA Output : 1

Alarm None

Network : 1 RJ–45 port (10/100 Mbps)

General Parameter

Power Supply : DC12V, 1.5A

Power Consumption : Total output of NVR is ≤ 10W (without HDD)

Net Weight : 0.81 kg (1.79 lb)

Gross weight : 1.38 kg (3.04 lb)

Product Dimensions : 260 mm×225 mm×47.6 mm (W × L × H)

Box Dimensions : 87 mm×331 mm×312 mm (W × L × H)

Operating Temperature : -10°C to 45°C (+34°F to +113°F)

Storage Temperature : 0°C to 40°C (+32°F to +104°F)

Operating Humidity : 10%~93%

Storage Humidity : 30%~85%

Operating Altitude : 3000 m (9843 ft)

Installation Desktop : mounting

Certification : CE
