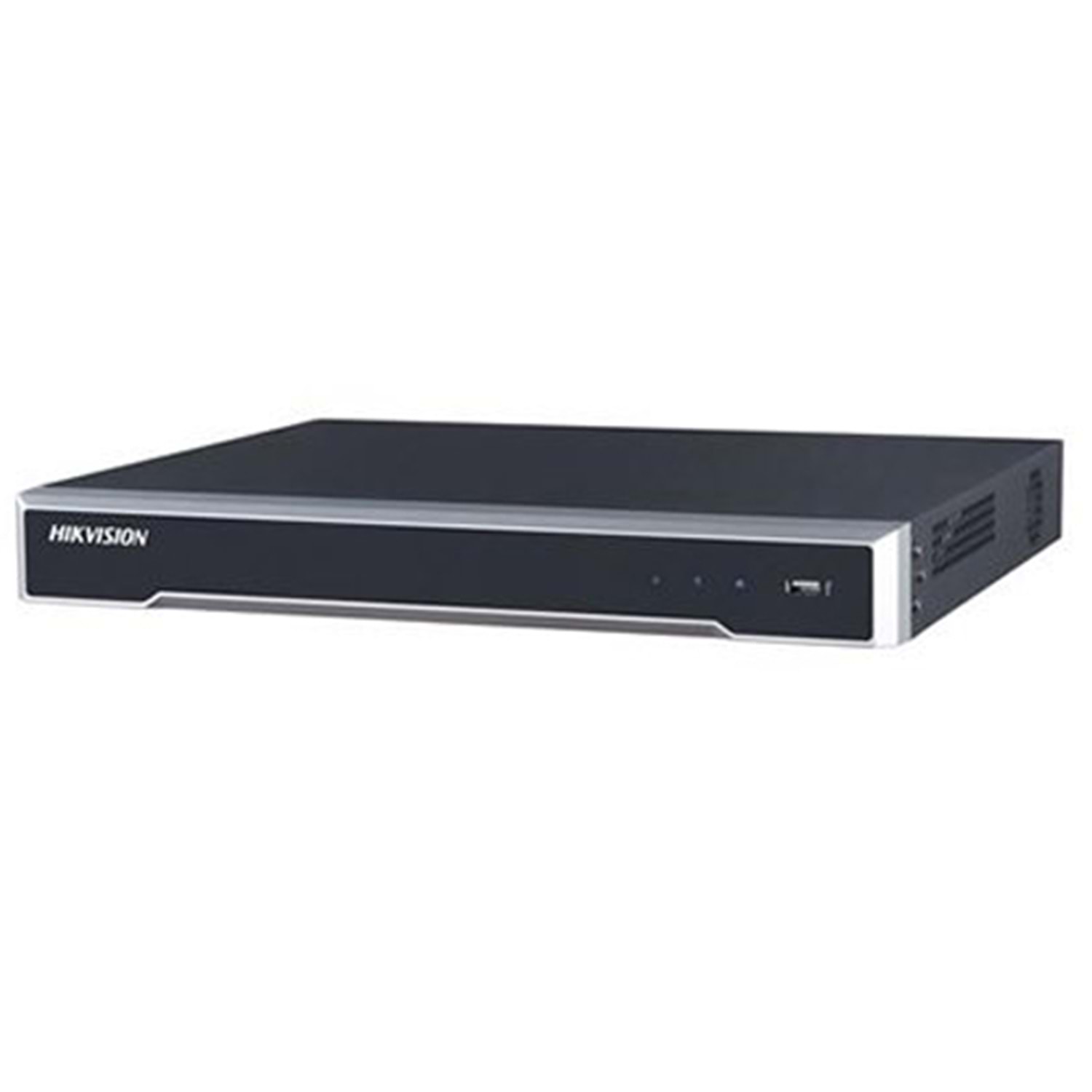

HIKVISION (DS-7616NI-Q2/16P) 16 KANAL 1xHDMI (4K desT. 1xVGA(FHD), 1xSES, 2x8TB NVR DS-7P16NI-Q2/16P

• Third-party network cameras supported
• Up to 8 Megapixels resolution recording
• Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K(3840x2160) resolution
• 4-ch network cameras can be connected with 40M/60M/80M incoming bandwidth
• Support dual-os to ensure high reliablility of system running
• Support various VCA detection alarm and VCA search
• Support H.265/H.264/MPEG4 video formats

Video/ Audio input

• IP video input : 16-ch
• Incoming bandwidth : 160 Mbps
• Outgoing bandwidth : 160 Mbps

Video/ Audio output

• HDMI output resolution : 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
• VGA output resolution : 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
• Audio output : 1-ch, RCA (Linear, 1 KΩ)

Decoding

• Decoding format : H.265/H.265+/H.264/H.264+/MPEG4
• Recording resolution : 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF
• Synchronous playback : 16-ch
• Capability : 2-ch @ 4K, or 8-ch @ 1080p

Network management

• Network protocols : TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

• SATA : 2 SATA interfaces
• Capacity Up to : 6TB capacity for each HDD

External interface

• Two-way audio : 1-ch, RCA (2.0 Vp-p, 1kΩ)
• Network interface : 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• USB interface Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0
• Alarm in/out : (4/1)

General

• Power supply : 12 VDC
• Power : ≤ 40 W
• Consumption (without hard disk : ≤15 W
• Working temperature : -10 to +55ºC (14 to 131ºF )
• Working humidity : 10 to 90 %
• Chassis : 385 mm chassis
• Dimensions (W x D x H) : 385 x 315x 52 mm (38.61 x 31.5 x 5.08 cm)
• Weight (without hard disk) : ≤ 1 kg (2.2 lb)
