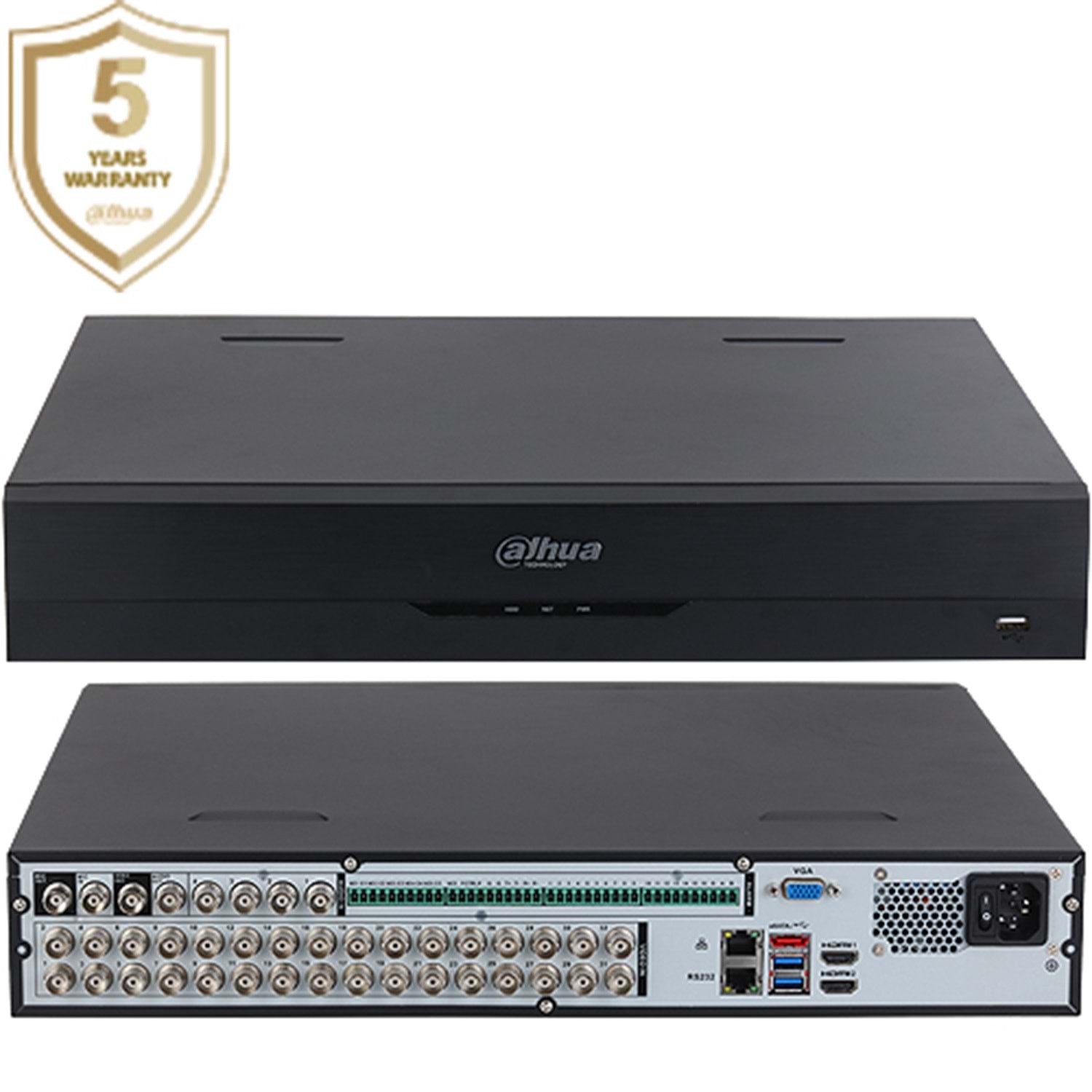

OUTLET DAHUA (XVR5432L-I3) 32 KANAL 1080P 2x16TB 5MP HDCVI KAMERA 4xHDMI 1xVGA 2xUSB 1xRJ45 XVR

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Model: 2 channels, 10 IVS for each channel
General Model: 8 channels, 10 IVS for each channel

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 12 face images/s)

Face Recognition

Face Database Capacity

Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries & regions and state can be added to each face image

Face Recognition Performance of AI by Recorder (Number of Channels)

2 channels

SMD Plus

SMD Plus by Recorder

16 channels: Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps; 720p@25/30 fps.
2. TVI: 5 MP, 4 MP, 1080p@25/30 fps; 720p@25/30 fps.
3. AHD: 5 MP, 4 MP, 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input

Up to 32 channels of IPC access
32 channels (analog channels are converted to IP channels)
incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps

Encoding Capacity

Main stream: 5M-N@(1fps–10fps); 4M-N, 1080p@ (1fps–15fps); 1080N, 720p, 960H
D1, CIF@(1fps–25/30fps)
Sub stream: D1,CIF@(1fps–15fps)

Dual-stream

Yes

Video Bit Rate

32 kbps–6144 kbps

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

2 HDMI, 1 VGA, 1 TV
Resolution
VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
*Heterogeneous video sources output for HDMI2 is configurable.

Multi-screen Display

1/4/8/9/16/25/36

Third-party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

Compression Standard

Video Compression

AI Coding; H.265+; H.265; H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 21.12; CGI

Browser

Chrome, IE9 or later, Firefox

Network Mode

Single-address mode

Recording Playback

Record Mode

General, motion detection; intelligent; alarm; POS

Recording Playback

1/4/9/16

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection; video loss; tampering; local alarm

Anomaly Alarm

No disk; storage error; disk full; camera offline; IP conflict; MAC conflict

Intelligent Alarm

Face detection; face recognition; perimeter protection

Alarm Linkage

Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email

Ports

TV Output

Yes

Audio Input

4-channel BNC (external)
32-channel BNC (coaxial audio)

Audio Output

1-channel BNC

Two-way Talk

1-channel BNC

Alarm Input

16 channels

Alarm Output

6 channels

HDD Interface

4 SATA ports, up to 16TB for a single HDD, the maximum HDD capacity varies with environment temperature

eSATA

1

RS-232

1 port, for PC Communication & Keyboard

RS-485

1 port, for PTZ control

USB

3 (1 front USB 2.0 port, 2 rear USB 3.0 ports)

HDMI

2

VGA

1

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

100-240 VAC, 50/60 Hz

Power Consumption

<22 W

Net Weight

4.8 kg (10.58 lb)

Gross Weight

7.1 kg (15.65 lb)

Product Dimensions

1.5U, 440.0 mm × 420.2 mm × 76.0 mm
(17.32" × 16.54" × 2.99") (W × D × H)

Packaging Dimensions

529.0 mm × 499.0 mm × 211.0 mm
20.83" × 19.65" × 8.31" (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

10%–90% (RH)

Installation

Rack or desktop

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B
