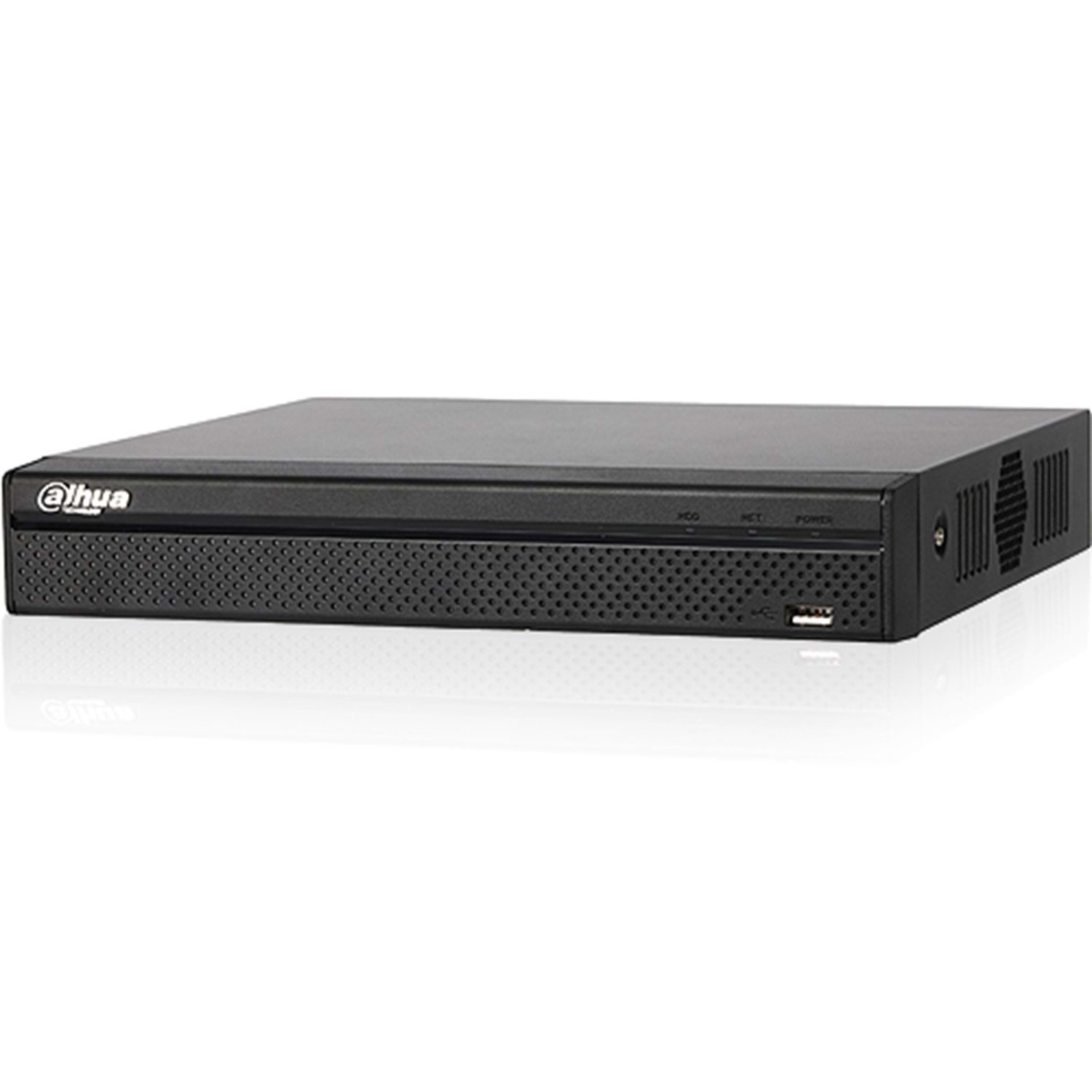

| System | | NVR2108HS-8P-T |
| Main Processor | : | Industrial-grade embedded processor |
| Operating System | : | Embedded Linux |
| Operation Interface | : | Web/operating in local GUI |
| Video |
| Access Channel | : | 8 channels |
| Network Bandwidth | : | 80 Mbps for access, 80 Mbps for storage and 60 Mbps
for forwarding. |
| Resolution | : | 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF |
| Decoding Capability | : | 1–ch@8MP(30FPS) or 1–ch@5MP(30FPS) or
2–ch@4MP(30FPS) or 2–ch@3MP(30FPS) or
4–ch@1080P(30FPS) 8–ch@720P(30FPS) |
| Video Output | : | 1 VGA/1 HDMI simultaneous video output, maximum
resolution 1080P |
| Multi-screen Display | : | 1/4/8/9 |
| Third Party Camera Access | : | Onvif, RTSP |
| Compression |
| Video | : | Smart H.265+/Smart H.264+/H.265/H.264 |
| Audio | : | PCM/G711A/G711U/G726/AAC |
| Network |
| Network Protocol | : | HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP,
DNS, P2P |
| Mobile Phone Access | : | iDMSS(iOS), gDMSS(Android) |
| Access Standard | : | ONVIF(profile T/profile S/profile G),CGI,SDK |
| Browser | : | Chrome, IE9 or above, Firefox |
| Record Playback |
| Multi-channel Playback | : | Up to 8 channels playback |
| Record Mode | : | Priority of record mode: Manual recording > alarm
recording > motion detection recording > timed recording |
| Storage | : | Local HDD and network |
| Backup | : | USB device |
| Playback Function | : | 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame
2. Full screen, backup (cut/file), partially enlarge, audio on/off |
| Alarm |
| General Alarm | : | Motion detection, privacy masking, video loss, PIR alarm, IPC alarm |
| Anomaly Alarm | : | Front-end device going offline, storage error, full storage,
IP conflict, MAC conflict, login lock, network security anomaly |
| Alarm Linkage | : | Video recording, snapshot, log, preset, tour |
| External Port |
| HDD | : | 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| USB | : | 1 front USB 2.0 port, 1 rear USB 2.0 port |
| HDMI | : | 1 |
| VGA | : | 1 |
| RCA Input | : | 1 |
| RCA Output | : | 1 |
| Alarm | : | None |
| Network | : | 1 RJ–45 port (10/100 Mbps), 8 RJ–45 ports with PoE power supply (10/100 Mbps) |
| General Parameter |
| Power Supply | : | DC48V/53V, 2A/1.8A |
| Power Consumption | : | Total output of NVR is ≤ 10W (without HDD) Total output power of PoE is 72W, the maximum output power of a single port is 25.5W |
| Net Weight | : | 0.84 kg (1.85 lb) |
| Gross weight | : | 1.98 kg (4.37 lb) |
| Product Dimensions | : | 260 mm×225 mm×47.6 mm (W × L × H) |
| Box Dimensions | : | 87 mm×331 mm×312 mm (W × L × H) |
| Operating Temperature | : | -10°C to 45°C (+34°F to +113°F) |
| Storage Temperature | : | 0°C to 40°C (+32°F to +104°F) |
| Operating Humidity | : | 10%~93% |
| Storage Humidity | : | 30%~85% |
| Operating Altitude | : | 3000 m (9843 ft) |
| Installation | : | Desktop mounting |
| Certification | : | CE |
