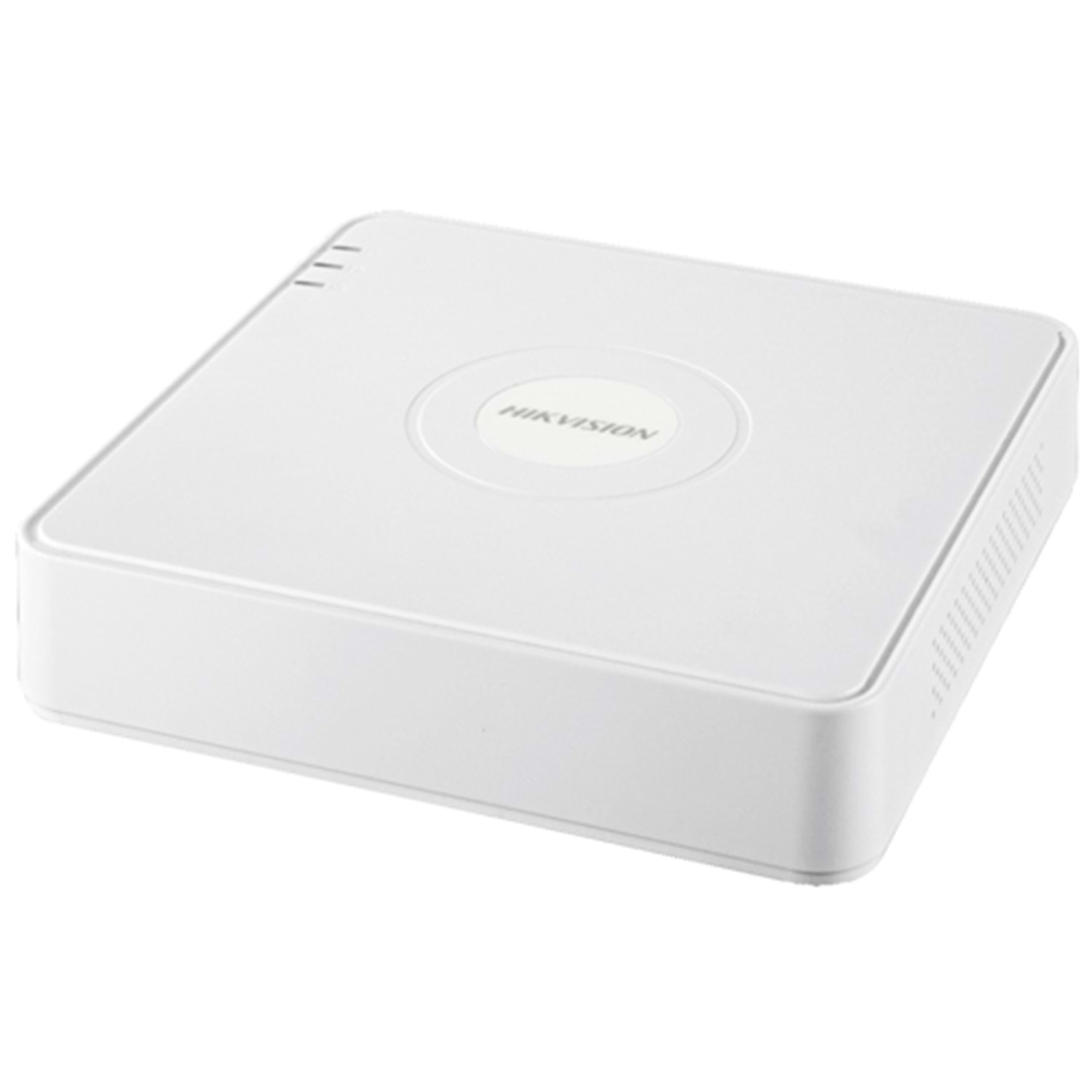

8-ch Mini 1U NVR

Up to 8 channel IP cameras can be connected
Supports decoding H.265+/H.265/H.264+/H.264 video formats
Up to 6 MP high-definition live view, storage and playback
Up to 4-ch @ 1080p decoding capacity
Up to 60 Mbps high incoming bandwidth ensures IP cameras can be connected
1 HDD for continuous video recording
Compatible with third-party network cameras.
Decoding
Decoding format : H.265+/H.265/ H.264+/H.264
Video resolution : 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous playback : 8-ch
Capability : 1-ch @ 4 MP / 2-ch @ 1080p

Network
Incoming/outgoing bandwidth : 60 Mbps

External interface
Network interface : 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
USB interface : 2 × USB 2.0

General
Power supply : 12 VDC,? 18W
Consumption (without HDD) : ? 10 W
Working temperature : -10 to +55º C (+14 to +131º F)
Working humidity : 10 to 90 %
Dimensions (W × D × H) : 200 × 205 × 48 mm (7.9" × 8.1" × 1.9")
Weight (without hard disk) : ? 1 kg (2.2 lb)
Chassis : 1U chassis

Video input
IP video input : 8-ch,Up to 4 MP resolution

Video output
Recording resolution : 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
VAG/HDMO output : 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Network management
Network protocols : TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™

Hard disk
SATA : 1 SATA interface
Capacity : Up to 6TB capacity for each disk
