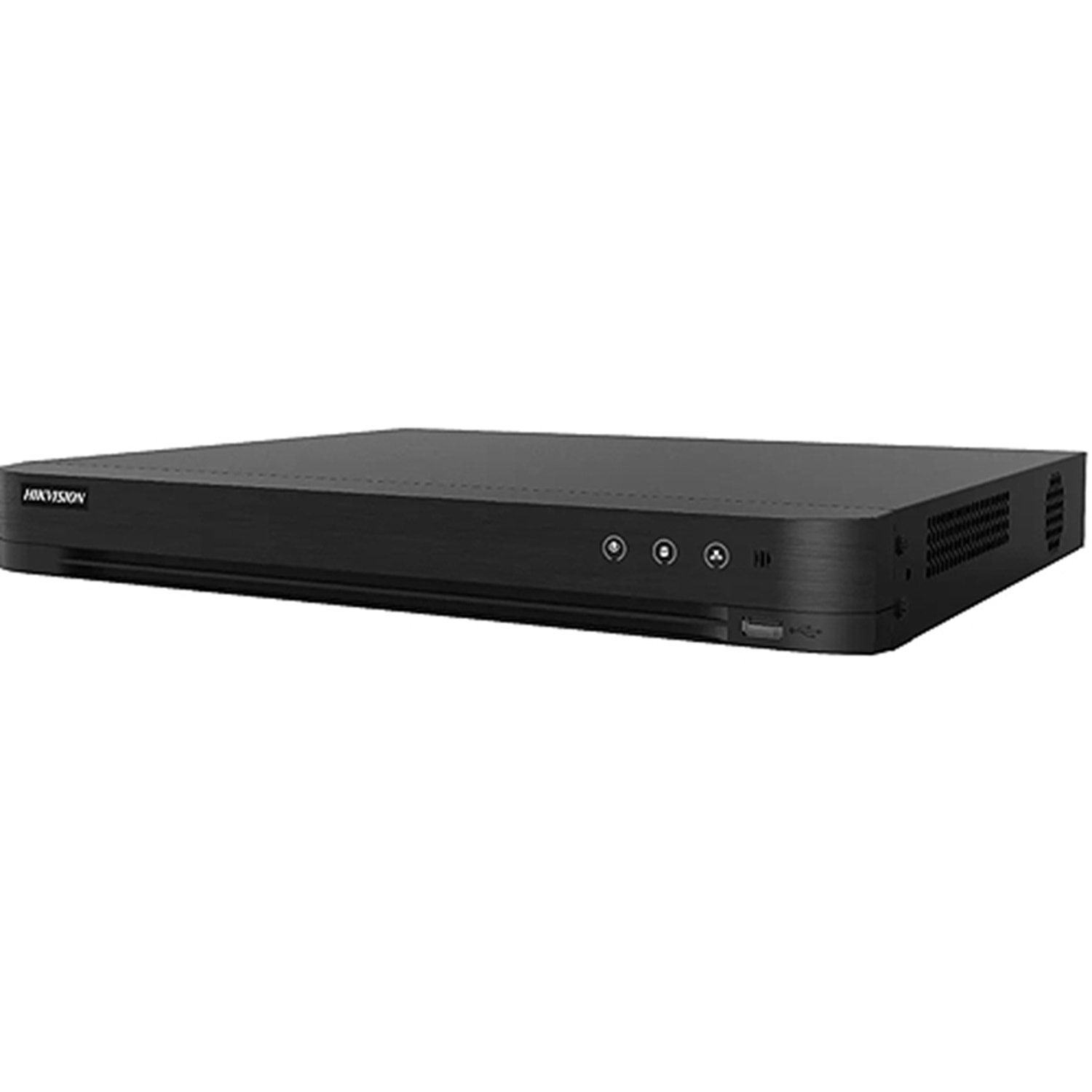

HIKVISION (DS-7232HGHI-M2) 32 KANAL 1xSES 1xHDMI 1xVGA 2xSATA (2x10TB)1xRJ45 18xIP HD-TVI DVR 1080PL

Henüz Değerlendirilmemiş

Stok Kodu

: Y5311190

Stok Miktarı

: 3 ADET

Markası

: HIKVISION

Whatsapp ile Sipariş

ALARM DESTEĞİ

Var

ANALİZ

Var

DİSK SAYISI

KANAL SAYISI

POE DESTEĞİ

YOK

SIKIŞTIRMA TEKNOLOJİSİ

H.265 / H.265+

SES DESTEĞİ

DAHİLİ MİKROFON

NEW

32-ch 720p 1U H.265 DVR

Deep learning based human and vehicle targets classification of Motion Detection 2.0
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input
Audio via coaxial cable
Up to 18-ch IP camera inputs (up to 5 MP)
Up to 1080p Lite@15 fps encoding capability
Max. 1200 m for 720p HDTVI signal

Motion Detection 2.0
Human/Vehicle Analysis :
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Recording
Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution : 1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate :
Main stream:

For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps

For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps

For standard definition stream access: WD1/4CIF/VGA/CIF@25fps

Sub-stream: CIF/QVGA@15fps
Video Bitrate : 32 Kbps to 4 Mbps
Dual-stream : Nonsupport
Stream Type : Video, Video & Audio
Audio Compression : G.711u
Audio Bitrate : 64 Kbps

Video and Audio
IP Video Input : 2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input : 32-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input : 1080p25, 1080p30, 720p25, 720p30
AHD Input : 1080p25, 1080p30, 720p25, 720p30
HDCVI Input : 1080p25, 1080p30, 720p25, 720p30
CVBS Input : PAL/NTSC
HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
CVBS Output : 1-ch, BNC (1.0 Vp-p, 75 Ω)
Audio Input :
1-ch, RCA (2.0 Vp-p, 1 KΩ)

32-ch via coaxial cable
Audio Output : 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback : 16-ch

Network
Remote Connection : 128
Total Bandwidth : 128 Mbps
Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, EHome
Network Interface : 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Wi-Fi : Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface
Serial Interface : RS-485 (half-duplex)
SATA : 2 SATA interface
Capacity : Up to 10 TB capacity for each disk
USB Interface :
Front panel: 1 × USB 2.0

Rear panel: 1 × USB 3.0

General
Power Supply : 12 VDC, 3.33 A
Consumption : ≤ 18 W (without HDD)
Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity : 10% to 90%
Dimension (W × D × H) : 380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch)
Weight : ≤ 2.2 kg (without HDD, 4.9 lb.)
