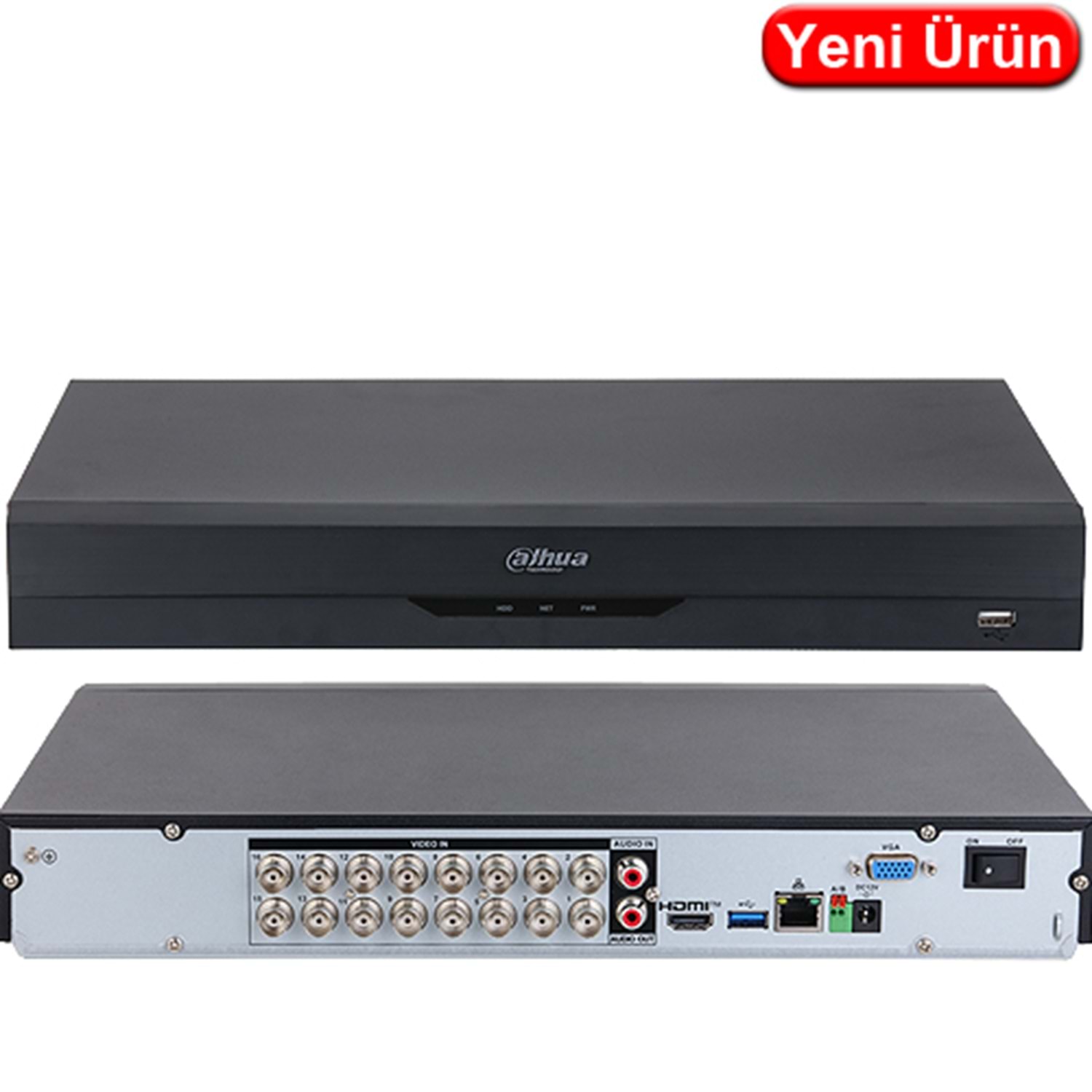

DAHUA (XVR5216AN-5M-I3) 16 KANAL 2x16TB 5MP HDCVI/AHD/TVI/CVBS/IP HDMI,VGA,USB RJ45 H265+XVR KAYIT

System

Main Processor



Industrial-grade processor

Operating System



Embedded Linux

Operating Interface



Web; Local GUI

Quick Pick

QuickPick 2.0 AI by Recorder (Number of Channels)



2 channels

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)



Advanced Mode: 2 channels, 10 IVS rules for each channel

General Mode: 4 channels, 10 IVS rules for each channel

Face Detection

Face Attributes



6 attributes

Face Detection Performance of AI by Recorder (Number of Channels)



2 channels (up to 12 face images/s each channel)

Face Recognition

Face Database Capacity



Up to 10 face databases with 10,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels)



2 channels

SMD Plus

SMD Plus by Recorder



16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera



24 channels

AI Video Quality Analytics

AI Video Quality Analytics by Recorder



16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

Scene Changing

Scene Changing by Recorder



1 channel

Irregular Black Block Masking

Irregular Black Block Masking by Recorder



1 channel

Audio and Video

Analog Camera Input



16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input



1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps.

2. TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input



Up to 24 channels of IPC access

8 IP channels by default + 16 channels (analog channels are converted to IP channels)

Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps

*After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used.

Encoding Capacity



Encode Enhancement disabled:

Main stream:

Channels 1-4 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps);

Channels 1-4 4M-N/1080p@(1 fps–25/30 fps), others 4M-N/1080p@(1 fps–15 fps);

1080N/720p/960H/D1/CIF@(1 fps–25/30 fps);

Sub stream: D1/CIF@(1 fps–15 fps);

Encode Enhancement enabled:

Main stream:

8-ch 5 MP@(1 fps-12 fps)/ 5M-N@(1 fps-25 fps), others 5M-N@(1 fps-12 fps); 8-ch 4M-N/1080p@(1 fps-25 fps), others 4M-N/1080p@(1 fps-15 fps); 1080N/720p/960H/D1/CIF@(1 fps-25/30 fps)

Sub stream: D1/CIF@(1 fps-15 fps);

It changes to D1/CIF@(1 fps-12 fps) when Main stream is 5 MP/5M-N.

*When Encode Enhancement is enabled,Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and QuickPick 2.0 cannot be used.

Dual-stream



Yes

Video Bit Rate



32 kbps–6144 kbps

Audio Sampling



8 kHz, 16 bit

Audio Bit Rate



64 kbps

Video Output



1 HDMI, 1 VGA

HDMI: 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720

VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display



When IP extension mode not enabled: 1/4/8/9/16

When IP extension mode enabled: 1/4/8/9/16/25

Third-party Camera Access



Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

Video Compression



AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression



G.711a; G.711u; PCM

Network

Network Protocol



HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access



iOS; Android

Interoperability



ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK

Browser



Chrome; IE; Safari; Edge; Firefox

Recording Playback

Record Mode



General; alarm; motion detection; intelligent; POS

Recording Playback



1/4/9/16

Backup Method



USB device and network

Playback Mode



Instant playback; general playback; event playback; tag playback; smart playback

Storage

Disk Group



Yes

Alarm

General Alarm



Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Anomaly Alarm



Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm



Face detection; face recognition; perimeter protection; SMD Plus

Alarm Linkage



Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

Ports

Audio Input



1-channel RCA

16-channel BNC (Coaxial Audio)

Audio Output



1-channel RCA

Two-way Talk



Yes (share the same audio input with the first channel)

Disk Interface



2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.

RS-485



1

USB



2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI



1

VGA



1

Network Port



1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply



12 VDC, 4 A

Power Consumption



<12 W (without HDD)

Net Weight



1.80 kg (3.97 lb)

Gross Weight



2.86 kg (6.31 lb)

Product Dimensions



375.0 mm × 289.6 mm × 53.0 mm (14.76" × 11.40" × 2.09") (W × D × H)

Packaging Dimensions



427.0 mm × 137.0 mm × 356.0 mm (16.81" × 5.39" × 14.02") (W × D × H)

Operating Temperature



–10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature



–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity



10%–90% (RH), non-condensing

Installation



Desktop

Certifications



CE-LVD: IEC 62368-1:2014

CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
