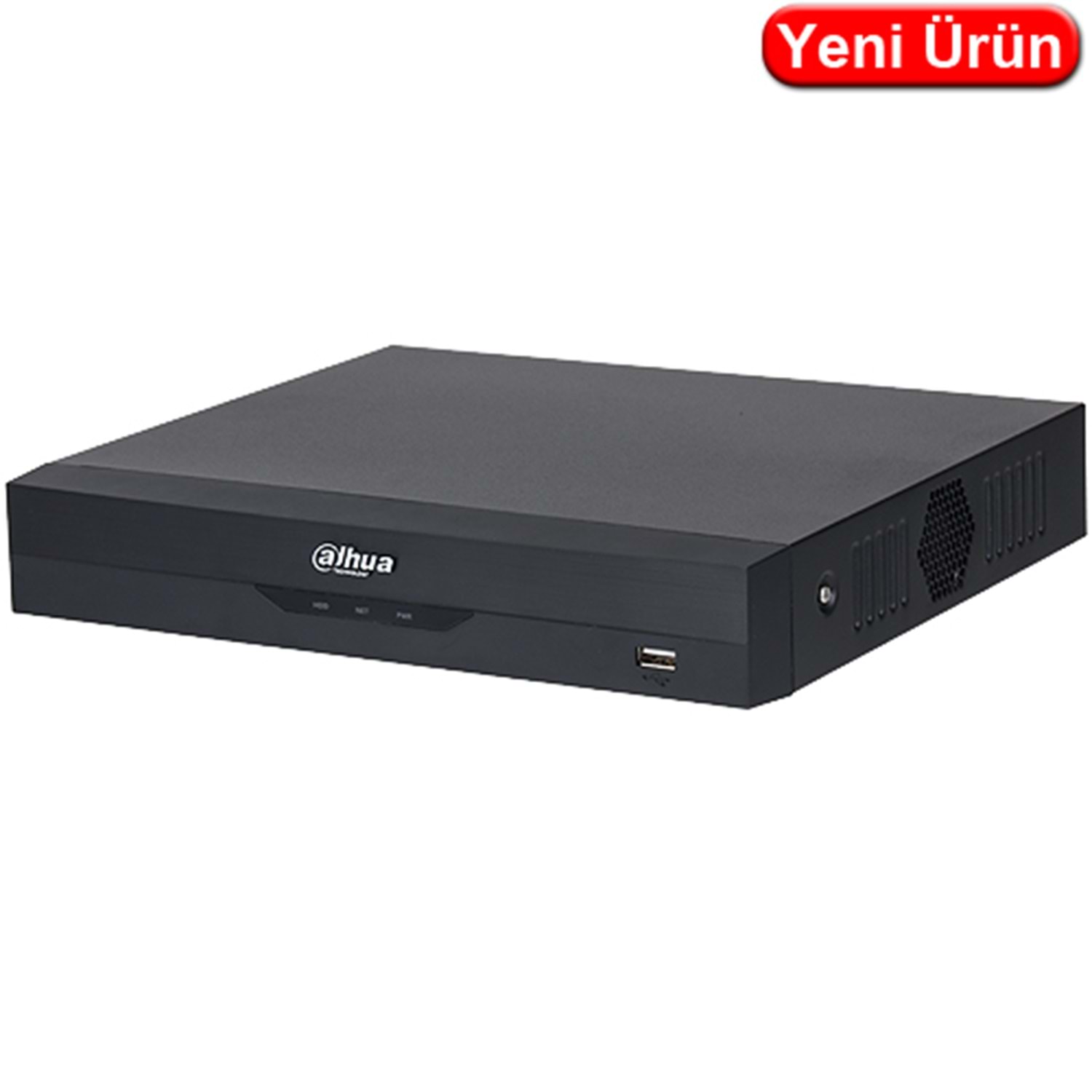

DAHUA (XVR5104HS-5M-I3) 4 KANAL 1080P 1x6TB 5MP HDCVI DESTEĞİ 1XHDMI 1XVGA 2XUSB 1XRJ45 XVR KAYIT

System

Main Processor



Industrial-grade processor

Operating System



Embedded Linux

Operating Interface



Web; Local GUI

Quick Pick

QuickPick 2.0 AI by Recorder (Number of Channels)



1 channel

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)



Advanced Mode: 2 channels, 10 IVS rules for each channel

General Mode: 4 channels, 10 IVS rules for each channel

Face Detection

Face Attributes



6 attributes

Face Detection Performance of AI by Recorder (Number of Channels)



1 channel (up to 8 face images/s each channel)

Face Recognition

Face Database Capacity



Up to 10 face databases with 10,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels)



1 channel

SMD Plus

SMD Plus by Recorder



4 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera



6 channels

AI Video Quality Analytics

AI Video Quality Analytics by Recorder



4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

Scene Changing

Scene Changing by Recorder



1 channel

Irregular Black Block Masking

Irregular Black Block Masking by Recorder



1 channel

Audio and Video

Analog Camera Input



4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input



1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps.

2. TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input



Up to 6 channels of IPC access

2 IP channels by default + 4 channels (analog channels are converted to IP channels)

Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps

*After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used.

Encoding Capacity



Encode Enhancement disabled:

Main stream:

Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps);

Channels 1-2 4M-N/1080p@(1 fps–25/30 fps), others 4M-N/1080p@(1 fps–15 fps);

1080N/720p/960H/D1/CIF@(1 fps–25/30 fps);

Sub stream: D1/CIF@(1 fps–15 fps);

Encode Enhancement enabled:

Main stream:

5 MP@(1 fps-12 fps); 5M-N/4M-N/1080p@(1 fps-25 fps); 1080N/720p/960H/D1/CIF@(1 fps-30 fps);

Sub stream: D1/CIF@(1 fps-15 fps);

It changes to D1/CIF@(1 fps-7 fps) when Main stream is 5 MP/5M-N.

*When Encode Enhancement is enabled,Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and QuickPick 2.0 cannot be used.

Dual-stream



Yes

Video Bit Rate



32 kbps–6144 kbps

Audio Sampling



8 kHz, 16 bit

Audio Bit Rate



64 kbps

Video Output



1 HDMI, 1 VGA

HDMI: 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720

VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display



When IP extension mode not enabled: 1/4

When IP extension mode enabled: 1/4/6

Third-party Camera Access



Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

Video Compression



AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression



G.711a; G.711u; PCM

Network

Network Protocol



HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access



iOS; Android

Interoperability



ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK

Browser



Chrome; IE; Safari; Edge; Firefox

Recording Playback

Record Mode



General; alarm; motion detection; intelligent; POS

Recording Playback



1/4

Backup Method



USB device and network

Playback Mode



Instant playback; general playback; event playback; tag playback; smart playback

Alarm

General Alarm



Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Anomaly Alarm



Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm



Face detection; face recognition; perimeter protection; SMD Plus

Alarm Linkage



Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

Ports

Audio Input



1-channel RCA

4-channel BNC (Coaxial Audio)

Audio Output



1-channel RCA

Two-way Talk



Yes (share the same audio input with the first channel)

Disk Interface



1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.

RS-485



1

USB



2 (1 front USB 2.0 port, 1 rear USB 2.0 port)

HDMI



1

VGA



1

Network Port



1 (10/100 Mbps Ethernet port, RJ-45)

General

Power Supply



12 VDC, 1.5 A

Power Consumption



<5 W (without HDD)

Net Weight



0.84 kg (1.85 lb)

Gross Weight



1.37 kg (3.02 lb)

Product Dimensions



260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87") (W × D × H)

Packaging Dimensions



344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × 11.30") (W × D × H)

Operating Temperature



–10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature



–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity



10%–90% (RH), non-condensing

Installation



Desktop

Certifications



CE-LVD: IEC 62368-1:2014

CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
