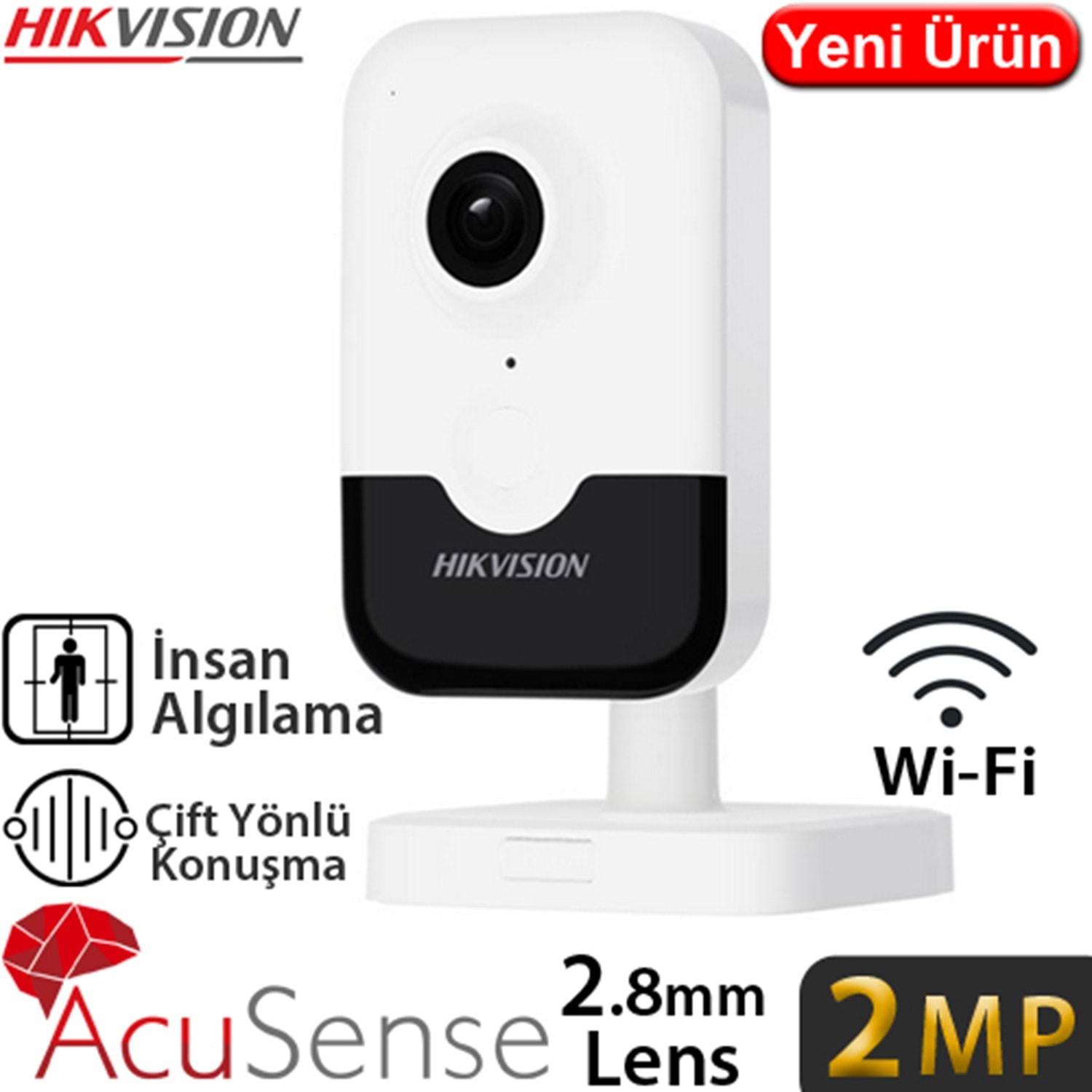

2 MP Indoor Audio Fixed Human Body Detection Cube Network Camera

High quality imaging with 2 MP resolution
Clear imaging against strong backlight due to Digital WDR technology
Focus on human classification based on deep learning
Provide real-time security via built-in two-way audio

Camera
Image Sensor : 1/3" Progressive Scan CMOS
Max. Resolution : 1920 × 1080
Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time : 1/3 s to 1/100,000 s
Day & Night : IR cut filter
Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Focal Length & FOV :
2.8 mm, horizontal FOV 92°, vertical FOV 50°, diagonal FOV 110°

4 mm, horizontal FOV 75°, vertical FOV 41°, diagonal FOV 89°
Aperture : F1.6
Lens Mount : M12

DORI
DORI :
2.8 mm: D: 38.6 m, O: 15.3 m, R: 7.7 m, I: 3.9 m

4 mm: D: 54.8 m, O: 21.7 m, R: 11.0 m, I: 5.5 m

Illuminator
Supplement Light Type : IR
Supplement Light Range : Up to 10 m
IR Wavelength : 850 nm
Smart Supplement Light : Yes

Video
Main Stream :
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432)
Sub-Stream :
50 Hz: 25 fps (768 × 432, 512 × 288)

60 Hz: 30 fps (768 × 432, 512 × 288)
Video Compression :
Main stream: H.265/H.264

Sub-stream: H.265/H.264
Video Bit Rate : Up to 1 M bps
H.264 Type : Baseline Profile/Main Profile/High Profile
H.265 Type : Main Profile
Bit Rate Control : CBR/VBR

Audio
Environment Noise Filtering : Yes
Audio Sampling Rate : 8 kHz/16 kHz
Audio Compression : G.711/AAC-LC
Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)

Network
Simultaneous Live View : Up to 4 channels
API : ONVIF, SDK
Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
User/Host : Administrator
Security : Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
Client : iVMS-4200, Hik-Connect, Hik-Partner-Pro

Wi-Fi
Encryption Mode : WPA-PSK/WPA2-PSK
Wi-Fi Protocol : IEEE 802.11b, 802.11g, 802.11n
Frequency Range : 2.412 GHz to 2.472 GHz
Channel Bandwidth : 20 MHz
Modulation :
802.11b: CCK, QPSK, BPSK

802.11g: OFDM

802.11n: OFDM
Wireless Range : Up to 50 m (The performance varies based on actual environment)
Transfer Rate :
11b: up to 54 Mbps,

11g: up to 54 Mbps,

11n: up to 150 Mbps

Wide Dynamic Range (WDR) : Digital WDR
Privacy Mask : 4 programmable polygon privacy masks
Day/Night Switch : Day, Night, Auto, Schedule
Image Parameters Switch : Yes
Image Settings : Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software

Interface
Built-in Microphone : Yes, 1 built-in microphone
Built-in Speaker : Yes, 1 built-in speaker
On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key : Yes
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event : Motion detection (support alarm triggering by specified target types (human)), exception
Linkage : Upload to memory card, notify surveillance center, trigger capture, audible warning

General
Power :
12 VDC, 0.4 A, max. 4.9 W, Ø2.0 mm coaxial power plug,

PoE: IEEE 802.3af, Class 3
General Function : Heartbeat, Mirror
Storage Conditions : -10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions : -10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
Material : Plastic
Dimension : 102.9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
Package Dimension : 150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
Approx. : 120 g (0.3 lb.)
With Package Weight : Approx. 430 g (0.9 lb.)

Approval
EMC : CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014)
RF : CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
Safety : CE-LVD (EN 62368-1:2014/A11:2017)
Environment :
CE-RoHS (2011/65/EU)

WEEE (2012/19/EU)
