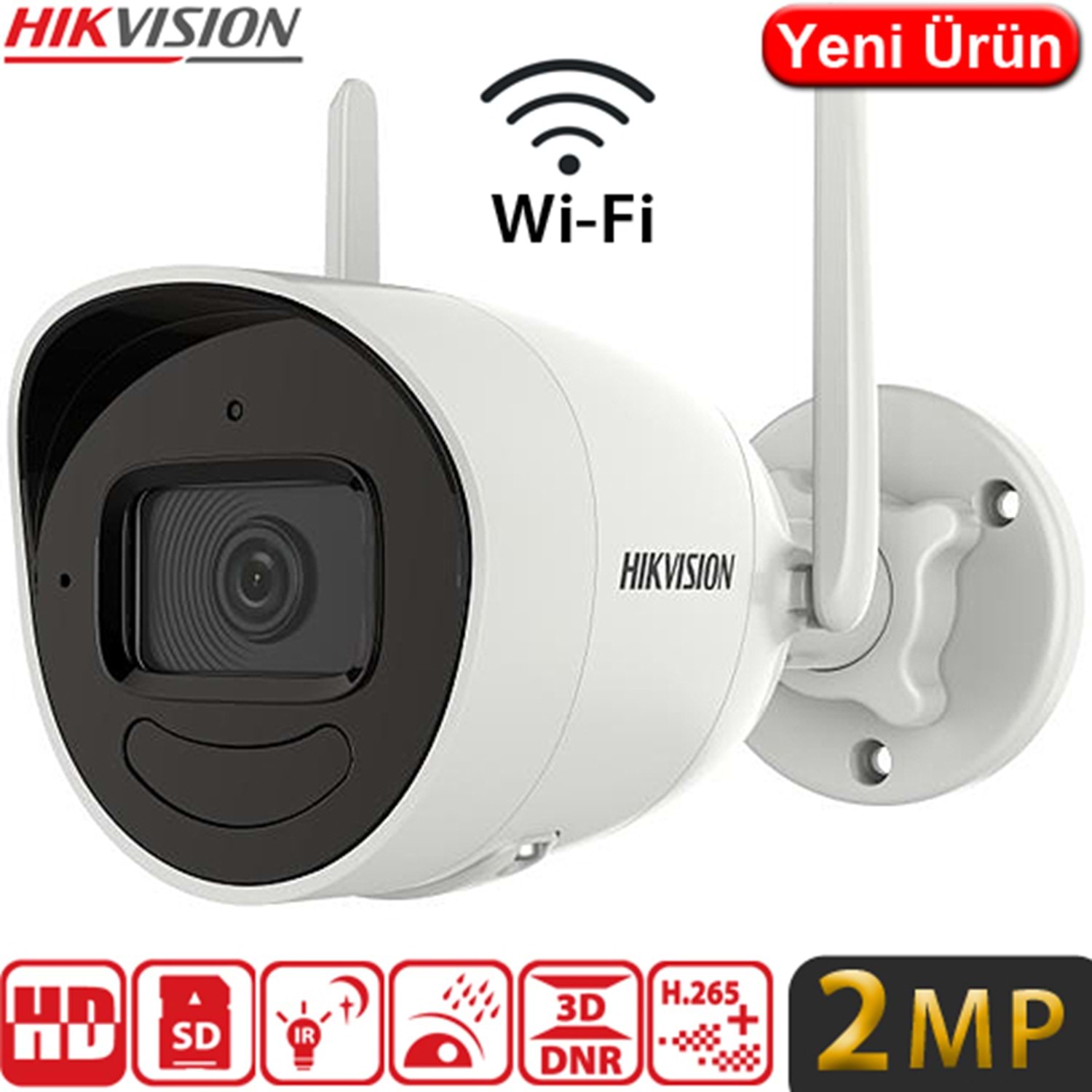

2 MP Outdoor Audio Fixed Bullet Network Camera

High quality imaging with 2 MP resolution
Realizing Wi-Fi connection and easy installation
Provides real-time security via built-in two-way audio
EXIR 2.0, advanced infrared technology with long IR distance
Support on-board storage up to 512 GB (SD card slot)
Water and dust resistant (IP66)

Camera
Image Sensor : 1/2.7" Progressive Scan CMOS
Max. Resolution : 1920 × 1080
Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time : 1/3 s to 1/100,000 s
Day & Night : IR cut filter
Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens
Lens Type : Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV :
2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 133°

4 mm, horizontal FOV 91°, vertical FOV 46°, diagonal FOV 110°
Aperture : F1.6
Iris Type : Fixed
Lens Mount : M12
Depth of Field :
2.8 mm: 1 m to ∞

4 mm: 1.1 m to ∞

DORI
DORI :
2.8 mm, D: 42 m, O: 17 m, R: 9 m, I: 4 m

4 mm, D: 52 m, O: 21 m, R: 11 m, I: 5 m

Illuminator
Supplement Light Type : IR
IR Wavelength : 850 nm
Supplement Light Range : Up to 30 m
Smart Supplement Light : Yes

Video
Main Stream :
50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream :
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression :
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate : 32 Kbps to 8 Mbps
H.264 Type : Baseline Profile/Main Profile/High Profile
H.265 Type : Main Profile

Audio
Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate : 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC);64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate : 8 kHz/16 kHz
Environment Noise Filtering : Yes

Network
Protocols : TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Simultaneous Live View : Up to 6 channels
API : Open Network Video Interface, ISAPI
User/Host : Up to 32 users. 3 levels: administrator, operator and user
Client :
Wired network: Hik-Connect, iVMS-4200

Wi-Fi: iVMS-4200

*Wi-Fi connection with Hik-Connect directly is not possible.
Web Browser :
Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Wi-Fi
Transfer Rate : 11n: up to 300 Mbps
Wi-Fi Protocol : 802.11n: OFDM,802.11b: DSSS,802.11g: OFDM
Frequency Range : 2.412 GHz to 2.472 GHz
Channel Bandwidth : 20/40 MHz
Modulation :
802.11n: BPSK, QPSK, 16QAM, and 64QAM

802.11b: DBPSK and DQPSK, CCK

802.11g: BPSK, QPSK, 16QAM, and 64QAM
Wireless Range :
Up to 120 m

(The performance varies based on actual environment)
Antenna2 Antennas

Image Settings : Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Day/Night Switch : Auto, Schedule, Day, Night
Wide Dynamic Range (WDR) : 120 dB
Image Enhancement : BLC, 3D DNR

Interface
Built-in Microphone : Yes
Built-in Speaker : Yes
On-Board Storage :

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset Key : Yes
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event : Motion detection, exception

General
Power : 12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
Language : English, Ukrainian
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function : Anti-flicker, heartbeat, mirror, password protection, watermark, IP address filter
Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Material : Base: metal, front cover: metal, back cover: plastic
Dimension : 175.6 mm × 73 mm × 89.1 mm (6.9" × 2.9" × 3.5")
Package Dimension : 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
Weight : Approx. 345 g (0.8 lb.)
With Package Weight : Approx. 690 g (1.5 lb.)

Approval
EMC :
FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

KC: KN32: 2015, KN35: 2015
RF :
FCC ID (FCC Part 15.247(BT or 2.4G));

CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
Safety :
CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017
Environment :
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
Protection : IP66
