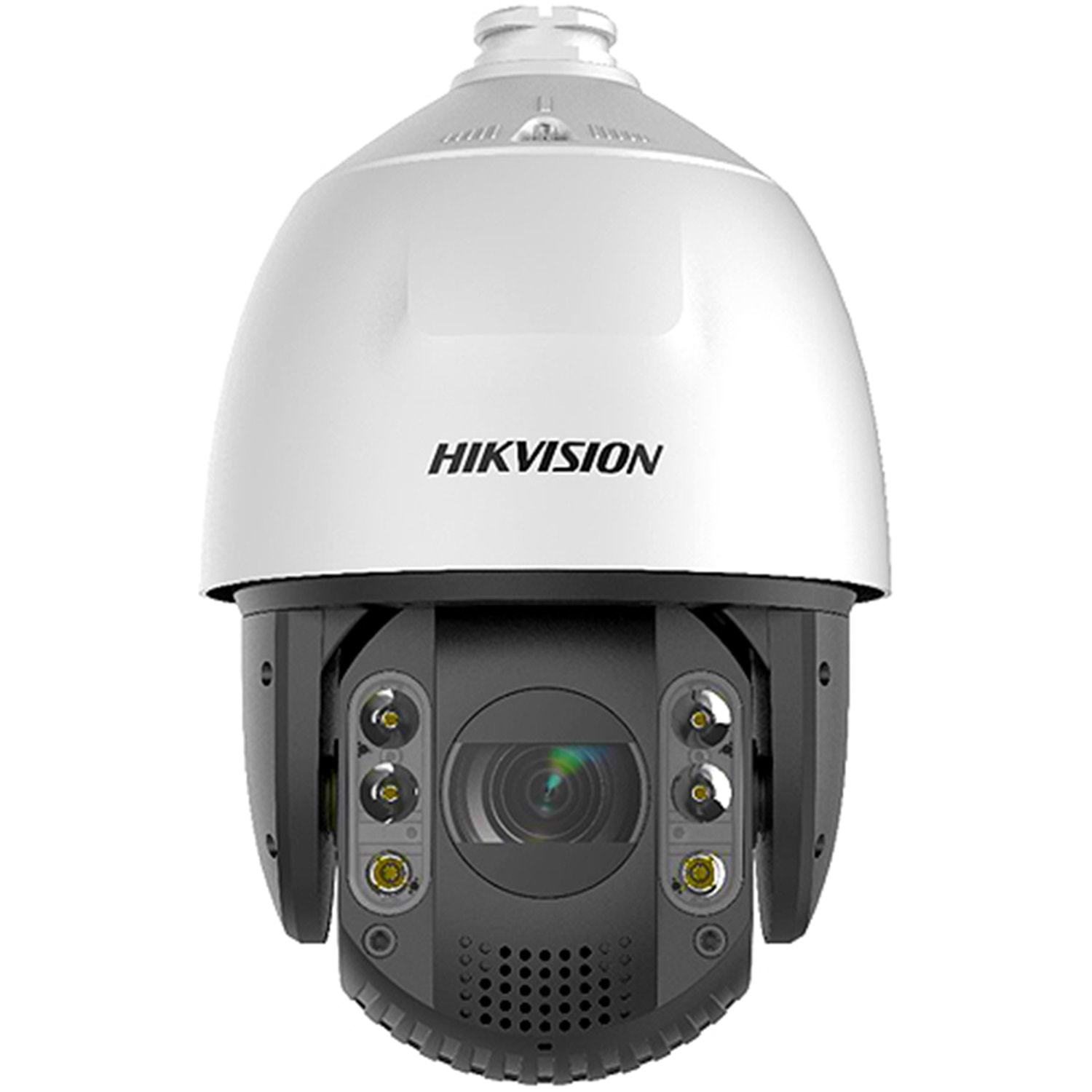

HIKVISION (DS-2DE7A432IW-AEB) 4 MP 32X IR PTZ SPEED DOME IP KAMERA

Aradığınız her şey tek platformda...

Giriş Yap Hesap Oluştur

info@yildizguvenlik.com.tr 0543 9641205

Arama

HIKVISION (DS-2DE7A432IW-AEB) 4 MP 32X IR PTZ SPEED DOME IP KAMERA

Henüz Değerlendirilmemiş

KDV : %20

Stok Kodu

: E26634

Stok Miktarı

: 3 ADET

Markası

: HIKVISION

Whatsapp ile Sipariş

ÇÖZÜNÜRLÜK(MP)

GECE GÖRÜŞÜ

150 M

KAMERA TİPİ

SPEED DOME

LENS TİPİ

ZOOM LENS

MİKRO SD CARD

256

7-inch 4 MP 32X Powered by DarkFighter IR Network Speed Dome

1/1.8" progressive scan CMOS
High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Audio visual alarm: The white flashing light and audible warning can be triggered by certain events
32× optical zoom and 16× digital zoom provide close up views over expansive areas
Expansive night view with up to 200 m IR distance
Focuses on human and vehicle targets classification based on deep learning
Face capture: Up to 5 faces captured at the same time

Kamera
Image Sensor : 1/1.8" progressive scan CMOS
Max. Resolution : 2560 × 1440
Min. Illumination : Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR
Shutter Speed : 1/1 s to 1/30000 s
Day & Night : IR cut filter
Zoom : 32x optical, 16x digital
Slow Shutter : Yes
DORI :
Detect (25px/m): 2046.9 m

Observe (63px/m): 812.3 m

Recognize (125px/m): 409.4 m

Identify (250px/m): 204.7 m

Lens :
Focal Length : 5.9 mm to 188.8 mm
FOV :
Horizontal field of view: 50.8° to 2.6° (wide-tele),

Vertical field of view: 29.4° to 1.5° (wide-tele),

Diagonal field of view:57.4° to 3° (wide-tele)
Focus : Auto,semi-auto,manual
Aperture : Max. F1.5
Zoom Speed : Approx. 4.8 s

Illuminator
Supplement Light Type : IR
Supplement Light Range : IR Distance: up to 200 m

PTZ
Movement Range (Pan) : 360°
Movement Range (Tilt) : -15° to 90° (auto flip)
Pan Speed : Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speed : Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan : Yes
Presets : 300
Preset Freezing : Yes
Patrol Scan : 8 patrols, up to 32 presets for each patrol
Pattern Scan : 4 pattern scans
Park Action : Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning : Yes
PTZ Status Display : Yes
Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Power-off Memory : Yes

Video
Main Stream :
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream :
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream :
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression :
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG
Video Bit Rate : 32 kbps to 16384 kbps
H.264 Type : Baseline Profile/Main Profile/High Profile
H.265 Type : Main Profile
Scalable Video Coding (SVC) : H.264 and H.265 encoding
Region of Interest (ROI) : 8 fixed regions for each stream

Audio
Audio Compression : G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Audio Bit Rate : 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering : Yes

Network
Protocols : IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View : Up to 20 channels
API : Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/HostUp to 32 users, 3 user levels: administrator, operator, and user
Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Network Storage : NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client : iVMS-4200, HikCentral Pro, Hik-Connect
Web BrowserI : E11, Chrome 57+, Firefox 52+, Safari 11+

Image Settings : Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR) : 120 dB
SNR : > 52 dB
Defog : Digital defog
Image Stabilization : EIS
Image Enhancement : BLC, HLC, 3D DNR
Privacy Mask : 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus : Yes
Regional Exposure : Yes

Interface
Ethernet Interface : 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage : Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in Speaker : 1 built-in speaker with effective distance reaching max. 30 meters
Audio : 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarm : 2 inputs, 1 output
SIFIRLA : Yes

Event
Basic Event : Motion detection, video tampering alarm, exception, alarm input and output
Smart Event : Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Linkage : Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking : Manual tracking, auto-tracking

Deep Learning Function
Face Capture :
Detects up to 5 faces simultaneously.

Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face
Perimeter Protection :
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types (human and vehicle)

General
Power :
24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);

Hi-PoE
Dimension : Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91")
Weight : Approx. 5 kg (11.03 lb.)
Material : ADC12
Operating Condition : -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Demist : Yes

Approval
EMC :
FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2019);

KC (KN 32: 2015, KN 35: 2015)
Safety :
UL (UL 62368-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 62368-1:2014+A11:2017);

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

LOA (SANS IEC60950-1)
Environment :
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
Protection : IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection
