HIKVISION (DS-2CD2A26G0/P-IZHS) 2MP 2,8-12MM 140DBWDR SD KARD,DEEPINGWIEW SERİ PLAKA OKUMA KAMERASI

Aradığınız her şey tek platformda...

Giriş Yap Hesap Oluştur

info@yildizguvenlik.com.tr 0543 9641205

Arama

HIKVISION (DS-2CD2A26G0/P-IZHS) 2MP 2,8-12MM 140DBWDR SD KARD,DEEPINGWIEW SERİ PLAKA OKUMA KAMERASI

Henüz Değerlendirilmemiş

Stok Kodu

: 6931847109981

Stok Miktarı

: 2 ADET

Markası

: HIKVISION

Whatsapp ile Sipariş

ÇÖZÜNÜRLÜK

GECE GÖRÜŞÜ

50 M

SES

DAHİLİ MİKRAFON+HOPARLOR

AI-(YAPAY ZEKA)

VAR

KAMERA TİPİ

BULLET

LENS TİPİ

MOTORİZE LENS

MİKRO SD CARD

1024

PLAKA OKUMA

VAR

POE (ENERJİ BESLEME)

VAR

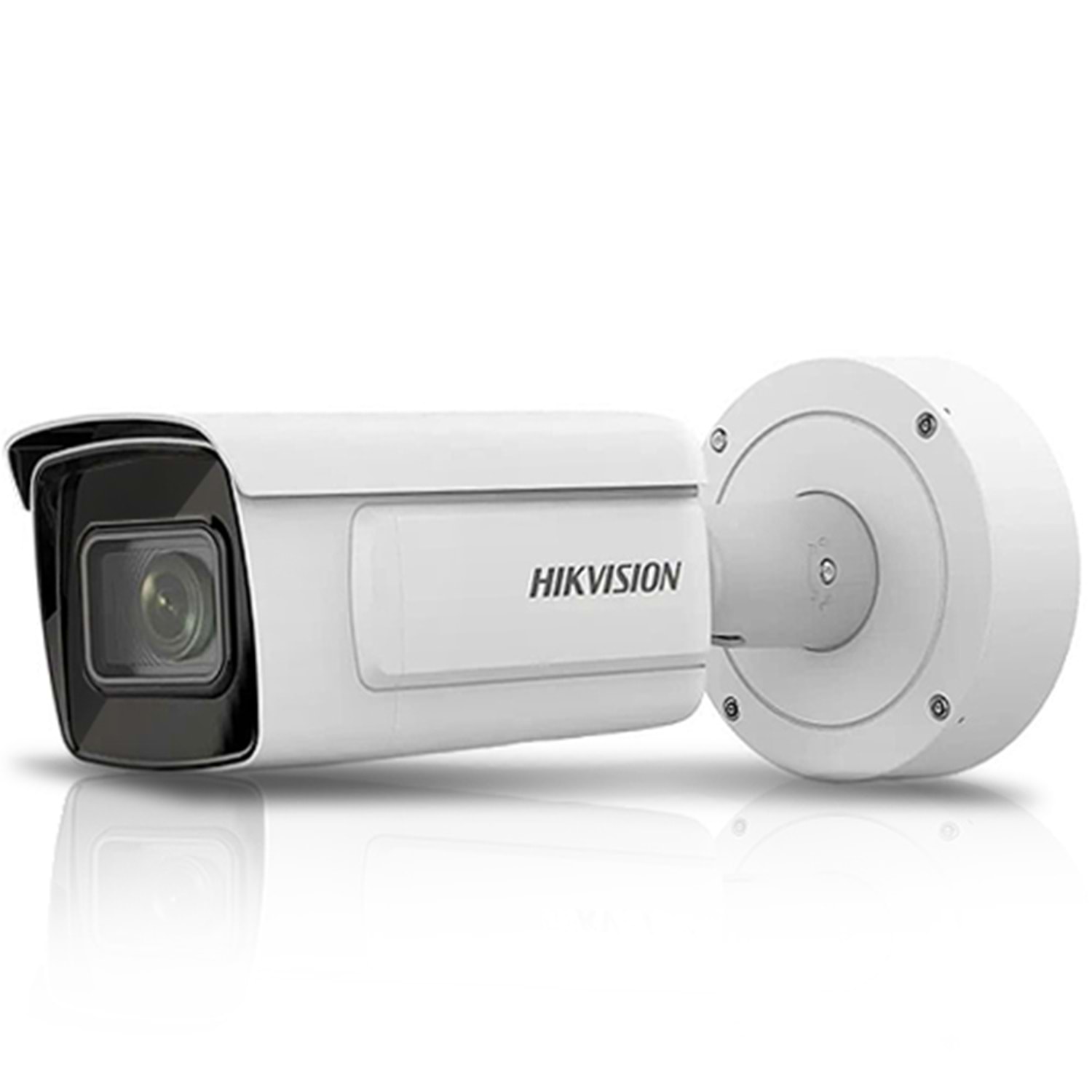

2MP DeepinView ANPR Moto Varifocal Bullet Camera

High quality imaging with 2 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to 140 dB WDR technology
License Plate Recognition
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Water and dust resistant (IP67) and vandal proof (IK10)

Kamera
Image Sensor : 1/1.8" Progressive Scan CMOS
Max. Resolution : 1920 × 1080
Min. Illumination :
Color: 0.0005 Lux @ (F1.2, AGC ON);

B/W: 0.0001 Lux @ (F1.2, AGC ON),0 Lux with IR
Shutter Time : 1 s to 1/100,000 s
Day & Night :
IR cut filter

Blue glass module to reduce ghost phenomenon

Lens
Focal Length & FOV
2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°

8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
Focus : Auto, semi-auto, manual
Iris Type : P-iris
Aperture :
2.8 to 12 mm: F1.2 to F2.5

8 to 32 mm: F1.7 to F1.73

DORI
DORI :
Wide:

2.8 to 12 mm: D: 45 m, O: 17.9 m, R: 9 m, I: 4.5 m

8 to 32 mm: D: 112.7 m, O: 44.8 m, R: 22.6 m, I: 11.3 m

Tele:

2.8 to 12 mm: D: 111.8 m, O: 44.3 m, R: 22.4 m, I: 11.2 m

8 to 32 mm: D: 300 m, O: 119.0 m, R: 60 m, I: 30 m

Illuminator
Supplement Light Type : IR
Supplement Light Range :
2.8 to 12 mm: 50 m

8 to 32 mm: 100 m
Smart Supplement Light : Yes
IR Wavelength : 850 nm

Video
Main Stream :
50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream :
50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream :
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream :
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream :
50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression :
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG,

Third stream: H.265/H.264,

Fourth stream: H.265/H.264/MJPEG,

Fifth stream: H.265/H.264/MJPEG
Video Bit Rate : 32 Kbps to 8 Mbps
H.264 Type : Baseline Profile,Main Profile,High Profile
H.265 Type : Main Profile
Bit Rate Control : CBR,VBR
Scalable Video Coding (SVC) : H.265 and H.264 encoding
Region of Interest (ROI) : 4 fixed regions for each stream
Target Cropping : Yes

Audio
Audio Type : Mono sound
Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering : Yes

Network
Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live View : Up to 20 channels
API : Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
User/Host : Up to 32 users. 3 user levels: administrator, operator and user
Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Network Storage :
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client : iVMS-4200, Hik-Connect, Hik-Central
Web Browser :
Plug-in required live view: IE8+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

Local service: Chrome 41.0+, Firefox 30.0+

Image Parameters Switch : Yes
Image Settings : Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch : Day, Night, Auto, Schedule, Alarm Trigger, Video Trigger
Wide Dynamic Range (WDR) : 140 dB
SNR : ≥ 52 dB
Image Enhancement : BLC, HLC, Defog, 3D DNR
Picture Overlay : LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Stabilization : EIS

Interface
Video Output : 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface : 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio : With -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
Alarm : 2 input, 2 outputs (max. 24 VDC, 1 A)
RS-485 : With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key : Yes
Power Output : With -Y: 12 VDC, max. 100 mA
Wiegand : -Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit)

Event
Basic Event : Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
Smart Event : Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
Linkage : Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning

Deep Learning Function
Perimeter Protection :
Line crossing, intrusion, region entrance, region exiting

Support alarm triggering by specified target types
Road Traffic and Vehicle Detection :

Blocklist and allowlist: up to 10,000 records

Support license plate recognition of motorcycles (only in checkpoint scenario)

Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

License plate recognition rate ≥98%
Metadata : Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic

General
Power :
12 VDC ± 20%, 1.19 A, max. 14.28 W, three-core terminal block

PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.396 A to 0. 295 A, max. 16.8 W
Dimension :
Without -Y: Ø144 × 347 mm (Ø5.7" × 13.7\")

With -Y: Ø140 × 351 mm (Ø5.5 × 13.8\")"
Package Dimension : 405 × 190 × 180 mm (15.9" × 7.5" × 7.1")
Weight : Approx. 1950 g (4.2 lb.)
With Package Weight : Approx. 3070 g (6.7 lb.)
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language : 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian
General Function : Anti-flicker, 5 streams, EPTZ, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Heater : Yes

Approval
EMC :
FCC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC (ICES-003: Issue 7);

KC (KN 32: 2015, KN 35: 2015)
Safety :
UL (UL 62368-1);

CB (IEC 62368-1:2014+A11);

CE-LVD (EN 62368-1:2014/A11:2017);

BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);

LOA (IEC/EN 60950-1)
Environment :
CE-RoHS (2011/65/EU);

WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
Protection : IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
Anti-Corrosion Protection : With -Y: NEMA 4X(NEMA 250-2018)
Automotive and Railway : EN50121-4
Other : PVC FREE
