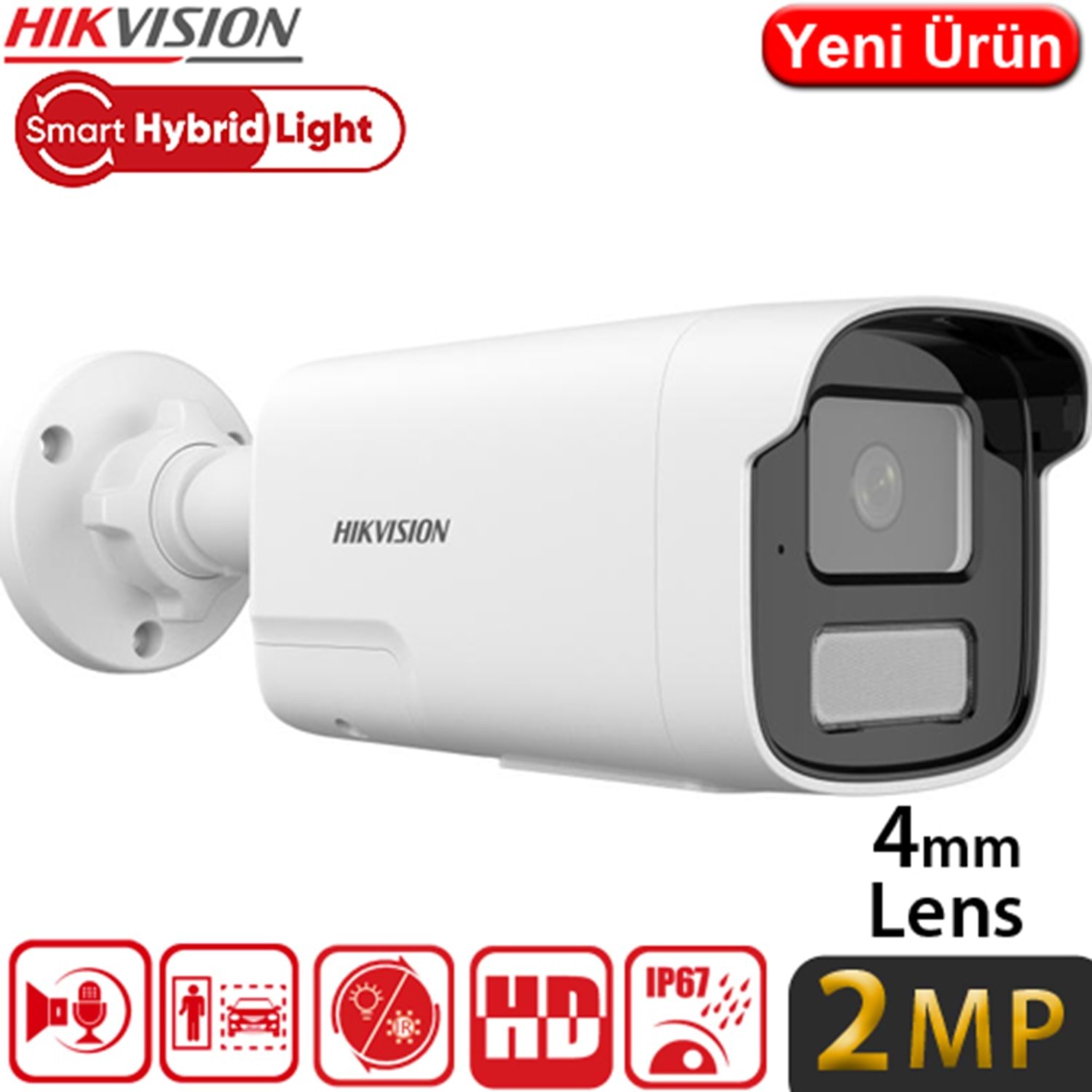

2 MP Smart Hybrid Light Fixed Bullet Network Camera
- High quality imaging with 2 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
Camera
Image Sensor : 1/2.9" Progressive Scan CMOS
Max. Resolution : 1920 × 1080
Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time : 1/3 s to 1/100,000 s
Day & Night : IR cut filter
Angle Adjustment : Pan: 0°to 360°, tilt: 0° to 180°, rotate: 0° to 360°
Lens
Lens Type : Fixed focal lens, 4 and 6 mm optional
Focal Length & FOV :4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
6 mm, horizontal FOV 51°, vertical FOV 27°, diagonal FOV 60°
Lens Mount : M12
Iris Type : Fixed
Aperture : F1.6
DORI
DORI : 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
6 mm, D: 91 m, O: 36 m, R: 18 m, I: 9 m
Illuminator
Supplement Light Type : IR, White Light
Supplement Light Range : Up to 50 m
Smart Supplement Light : Yes
IR Wavelength : 850 nm
Video
Main Stream : 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream : 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression : Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate : 32 Kbps to 8 Mbps
H.264 Type : Baseline Profile, Main Profile, High Profile
H.265 Type : Main Profile
Bit Rate Control : CBR, VBR
Region of Interest (ROI) : 1 fixed region for main stream
Audio
Audio Type : Mono sound
Environment Noise Filtering : Yes
Audio Sampling Rate : 8 kHz/16 kHz
Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
Security : Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View : Up to 6 channels
API : Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK
Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host : Up to 32 users
3 user levels: administrator, operator, and user
Client : iVMS-4200, Hik-Connect
Web Browser : Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Wide Dynamic Range (WDR) : Digital WDR
SNR : ≥ 52 dB
Day/Night Switch : Day, Night, Auto, Schedule
Image Enhancement : BLC, HLC, 3D DNR
Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask : 4 programmable polygon privacy masks
Interface
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone : Yes, 1 built-in microphone
Built-in Speaker : Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
Reset Key : Yes
Event
Basic Event : Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage : Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light
General
Power : 12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø 5.5 mm coaxial power plug, reverse polarity
protection,
PoE: IEEE 802.3af, Class 3, max. 10 W
Material : Metal & Plastic
Dimension : 83.7 mm × 80.7 mm × 221.1 mm (3.3" × 3.2" × 8.7")
Package Dimension : 260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
Weight : Approx. 580 g (1.3 lb.)
With Package Weight : Approx. 635 g (1.4 lb.)
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language : English, Ukrainian
General Function : Heartbeat, anti-banding, mirror, password protection, password reset via email
Flashing Light : Yes
Approval
EMC : CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC
61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety: UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment : CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection : IP67: IEC 60529-2013
