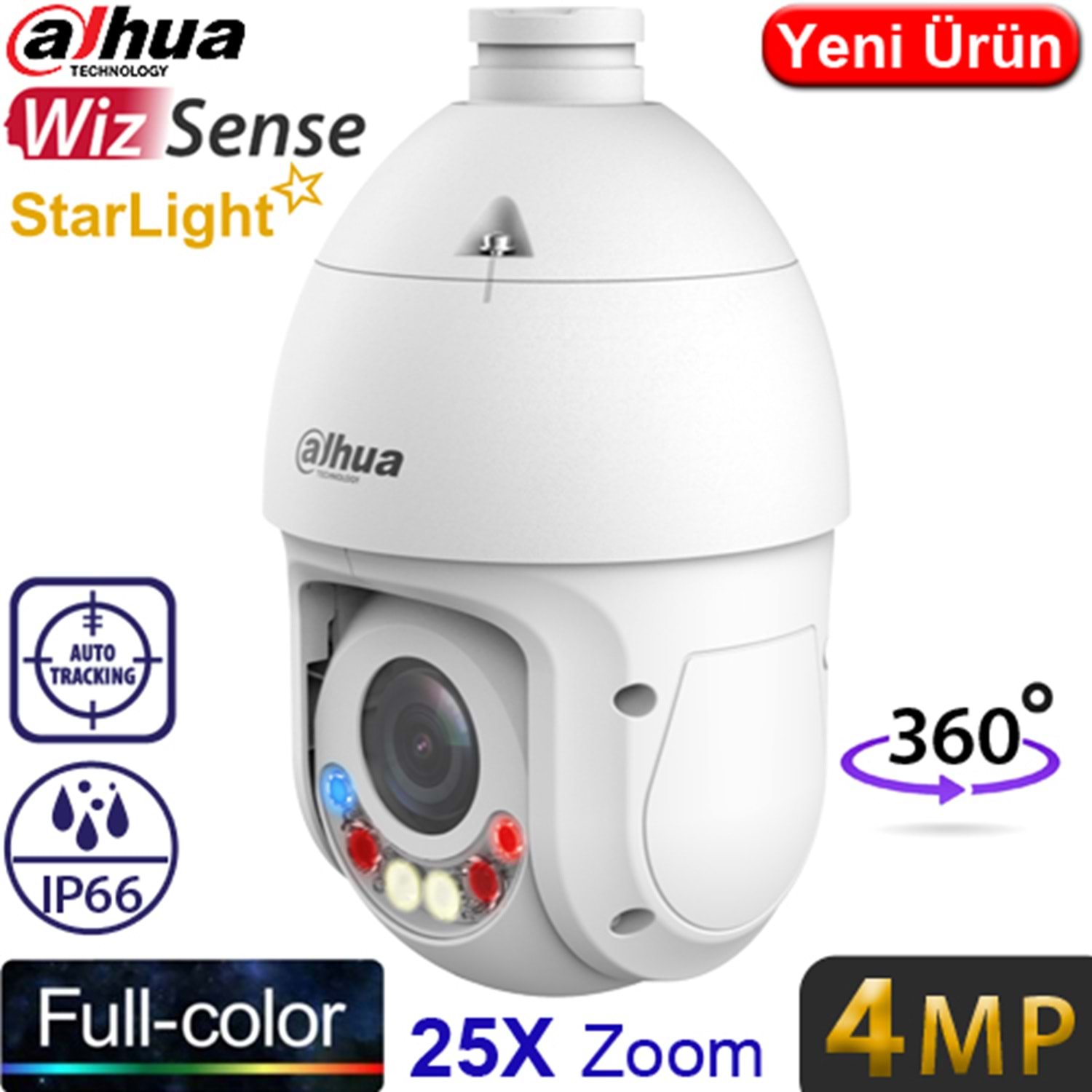

DAHUA (SD4E425GB-HNR-A-PV1) 4MP 25X STARLITE IR WIZSENSE IP66 IP PTZ KAMERA

Camera

Image Sensor

1/2.8" CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux@F1.6 (illuminator on)

Illumination Distance

100 m (328.08 ft) (IR)
50 m (164.04 ft)(White light)

Illuminator On/Off Control

Zoom Prio; Manual; Auto; Off

Illuminator Number

2 (IR)
2 (Dual light fusion)

Lens

Focal Length

5 mm–125 mm

Max. Aperture

F1.6–F3.6

Field of View

H: 51.9°–3.0°;
V: 39.7°–2.2°;
D: 63.1°–3.7°

Optical Zoom

25×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.1 m–0.5 m (0.33 ft–1.64 ft)

Iris Control

Auto; manual

DORI Distance

Detect

Observe

Recognize

Identify

2500 m (8208.10 ft)

987.5 m (3239.83 ft)

500 m (1640.42 ft)

250 m (820.21 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–200°/s
Tilt: 0.1°/s–120°/s

Preset Speed

Pan: 240°/s; Tilt: 200°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Pattern; Preset; Scan; Tour

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking

Face Detection

Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.

Auto Tracking

Yes

SMD

SMD 4.0

Acupick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

Auto Patrol

It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets.

Active Deterrence

Light Warning

Red and blue warning light. They can be configured to flash for 5 to 30 seconds with a high, medium or low frequency.

Sound Warning

Offers 11 types of sound alarms, and supports importing custom sound alarms.

Video

Video Compression

H.264H;H.264B;Smart H.265+;H.265;MJPEG(Sub Stream);Smart H.264+;H.264M

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p@ (1–25/30 fps)

Sub stream 1: D1/CIF/VGA@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 96 Kbps–14848 Kbps

H265: 38 Kbps–8960 Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

120 dB

HLC

Yes

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic (EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available

S/N Ratio

≥ 55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP

Interoperability

CGI;SDK;ONVIF (Profile S&G&T);P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512 GB); FTP/SFTP; NAS

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions

Management Software

DSS pro; DMSS; NVR

Mobile Client

iOS;Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

Port

Audio Input

1 channel

Audio Output

1 channel

Alarm Linkage

Capture; recording; send email; preset; pattern; tour; alarm digital input; audio; warning light

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Alarm I/O

2/1

Audio I/O

1/1

Power

Power Supply

12 VDC/3 A ± 10%
PoE+ (802.3at)

Power Consumption

Basic: 7.0 W
Max.: 13 W (illuminator+heater+PTZ+speaker)

Environment

Operating Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

≤95%

Protection

IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

269.9 mm × Φ160.0 mm (10.59" × Φ6.30")

Net Weight

2.6 kg (5.73 lb)

Gross Weight

4 kg (8.82 lb)
