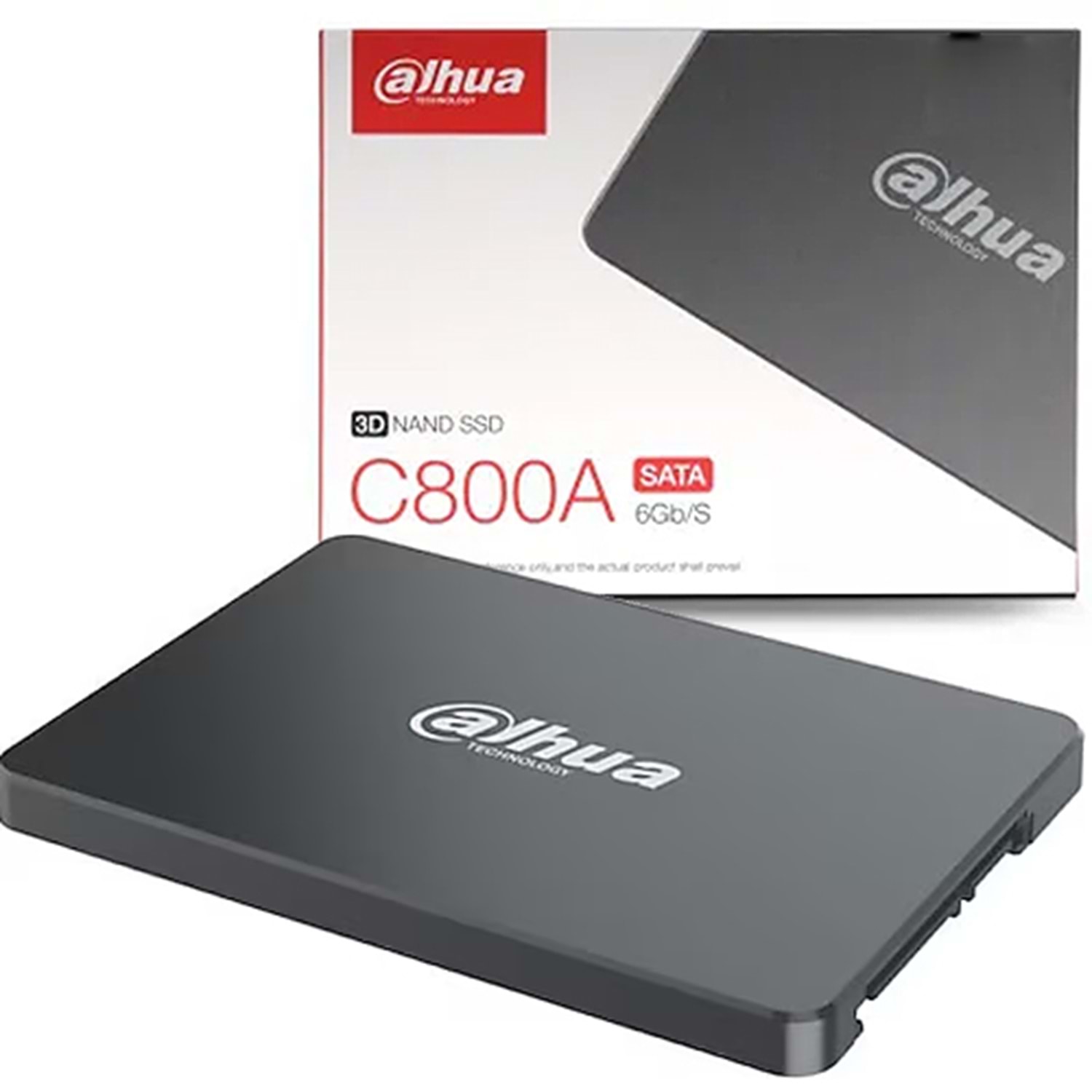

DAHUA (SSD-C800AS120G) C800A 120 GB 2.5" SATA3 SSD OKUMA 500 YAZMA 400

Technical Speci?cation

Product Model

DHI-SSD-C800AS120G

DHI-SSD-C800AS240G

DHI-SSD-C800AS480G

DHI-SSD-C800AS500G

Capacity1

120 GB

240 GB

480 GB

500 GB

Form Factor

2.5 inch

Port

SATA III 6Gb/s

Net Weight

Max 40 g (0.09 lb)

Product Dimensions

100.20 mm × 69.90 mm × 7.00 mm (3.94" × 2.75" × 0.28")

Packaging Dimensions

140.50 mm × 105.50 mm × 15.50 mm (5.53" × 4.15" × 0.61")

Memory Component

3D NAND

Power Consumption

1195 mW (max)
415 mW (idle)

1200 mW (max)
370 mW (idle)

1600 mW (max)
510 mW (idle)

1910 mW (max)
790 mW (idle)

S.M.A.R.T

Support

TRIM

Support

Garbage Collection

Support

Sequential Read2

Up to 500 MB/s

Up to 500 MB/s

Up to 530 MB/s

Up to 530 MB/s

Sequential Write2

Up to 400 MB/s

Up to 450 MB/s

Up to 470 MB/s

Up to 500 MB/s

MTBF

1,500,000 hours

Operating Temperature

0°C to +70°C (+32°F to +158°F)

Storage Temperature

–40°C to +85°C (–40°F to +185°F)

Operating Humidity

5%–95% (non-condensing)

Vibration Resistance

10-200Hz, 0.5G

TBW

Up to 50 TB

Up to 100 TB

Up to 150 TB

Up to 200 TB

Warranty3

3-year limited warranty

3-year limited warranty

3-year limited warranty

5-year limited warranty

Reference
Information

1. Capacity calculation: 1GB = 1 billion bytes (IDEMA). Actual available capacity might be reduced (due to formatting, partition, operating system applications, or other necessary usage).
2. System configuration of performance test: Intel Z390 Chipset, Intel Core i9-9900KF@3.6GHz, 16GB DDR4; operating system-Windows 10 x64; testing tool-CrystalDiskMark 6.0.0.
3. Warranty period or maximum write amount (TBW), whichever comes first.
4. High performance SLC cache has been enabled.

(*Above data based on internal testing of Dahua Memory Laboratory)

Technical Speci?cation

Product Model

DHI-SSD-

C800AS960G

DHI-SSD-C800AS1000G

DHI-SSD-C800AS2000G

Capacity1

960 GB

1000 GB

2000 GB

Form Factor

2.5 inch

Port

SATA III 6Gb/s

Net Weight

Max 40 g (0.09 lb)

Product Dimensions

100.20 mm × 69.90 mm × 7.00 mm (3.94" × 2.75" × 0.28")

Packaging Dimensions

140.50 mm × 105.50 mm × 15.50 mm (5.53" × 4.15" × 0.61")

Memory Component

3D NAND

Power Consumption

2200 mW (max)
550 mW (idle)

1960 mW (max)
840 mW (idle)

2500 mW (max)
960 mW (idle)

S.M.A.R.T

Support

TRIM

Support

Garbage Collection

Support

Sequential Read2

Up to 550 MB/s

Up to 550 MB/s

Up to 550 MB/s

Sequential Write2

Up to 490 MB/s

Up to 500 MB/s

Up to 460 MB/s

MTBF

1,500,000 hours

Operating Temperature

0°C to +70°C (+32°F to +158°F)

Storage Temperature

–40°C to +85°C (–40°F to +185°F)

Operating Humidity

5%–95% (non-condensing)

Vibration Resistance

10-200 Hz, 0.5G

TBW

Up to 310 TB

Up to 400 TB

Up to 800 TB

Warranty3

5-year limited warranty

Reference
Information

1. Capacity calculation: 1GB = 1 billion bytes (IDEMA). Actual available capacity might be reduced (due to formatting, partition, operating system applications, or other necessary usage).
2. System configuration of performance test: Intel Z390 Chipset, Intel Core i9-9900KF@3.6GHz, 16GB DDR4; operating system-Windows 10 x64; testing tool-CrystalDiskMark 6.0.0.
3. Warranty period or maximum write amount (TBW), whichever comes first.
4. High performance SLC cache has been enabled.

(*Above data based on internal testing of Dahua Memory Laboratory)
