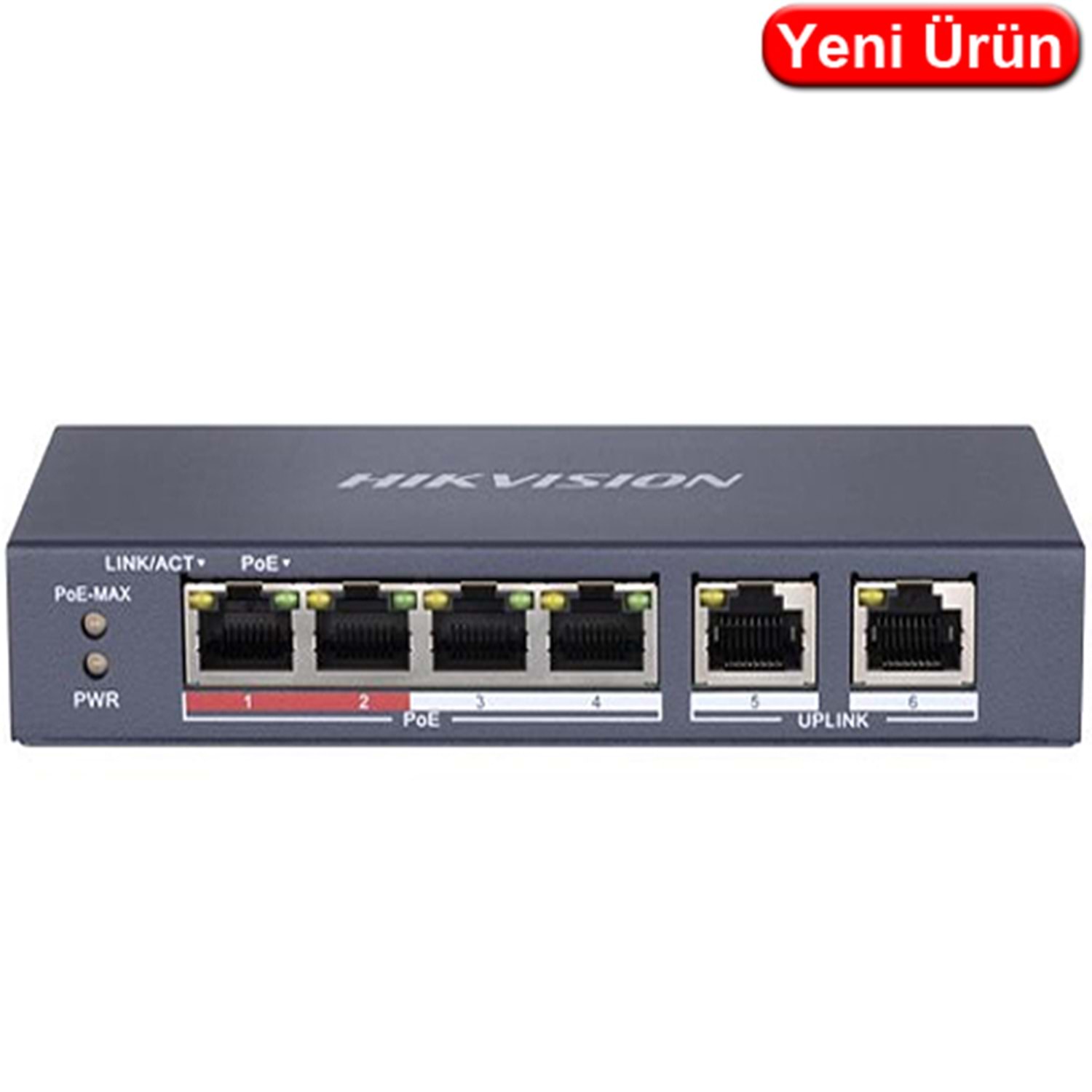

HIKVISION (DS-3E0106P-E/M) 4 PORT 4x10/100 POE 2x100M UPLINK PORT POE YÖNETİLEMEZ SWITCH (35W)

Henüz Değerlendirilmemiş

Stok Kodu

: E34431

Stok Miktarı

: 47 ADET

Markası

: HIKVISION

Whatsapp ile Sipariş

4 Port Fast Ethernet Unmanaged POE Switch

4 x 10/100Mbps PoE port, and 2 × 10/100Mbps RJ45 port.
IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
6 KV surge protection for PoE ports.
Up to 300 m long-range transmission.
Wire-speed forwarding.
Store-and-forward switching.
Solid high-strength metal shell.
Reliable fan-free design.

General
Shell : Metal material
Net Weight : 0.27 kg (0.60 lb)
Gross Weight : 0.52 kg (1.15 lb)
Dimensions (W × H × D) : 145 mm × 68.45 mm × 25.6 mm (5.71'' × 2.69'' × 1.01'')
Operating Temperature : 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature : –40 °C to 85 °C (–40 °F to 185 °F)
Operating Humidity : 5% to 95% (no condensation)
Relative Humidity : 5% to 95% (no condensation)
Power Supply : 48 VDC, 0.8 A
Installation Mode : Desk-Mounted,Wall-Mounted
Max. Power Consumption : 30 W
Power Consumption in Idle : 3 W
Surge Protection : 6 KV

Network Parameters
Ports : 4 x 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
MAC Address Table : 2 K
Switching Capacity : 1.2 Gbps
Packet Forwarding Rate : 0.89 Mpps
Internal Cache : 768 Kbits

PoE Power Supply
PoE Standard : IEEE 802.3af;IEEE 802.3at
PoE Power Pin : 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port : PoE: Ports 1 to 4
Max. Port Power : 30 W
PoE Power Budget : 35 W

Dialing Function
Long Range :
Ports 1 to 4 : up to 300 m.

Long range performance may vary depend on camera model or cable condition.

Software Function
VIP Port : Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.

Approval
EMC : FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety : UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry :
CE-RoHS (201165EU);

WEEE (201219EU);

Reach (Regulation (EC) No.19072006)
