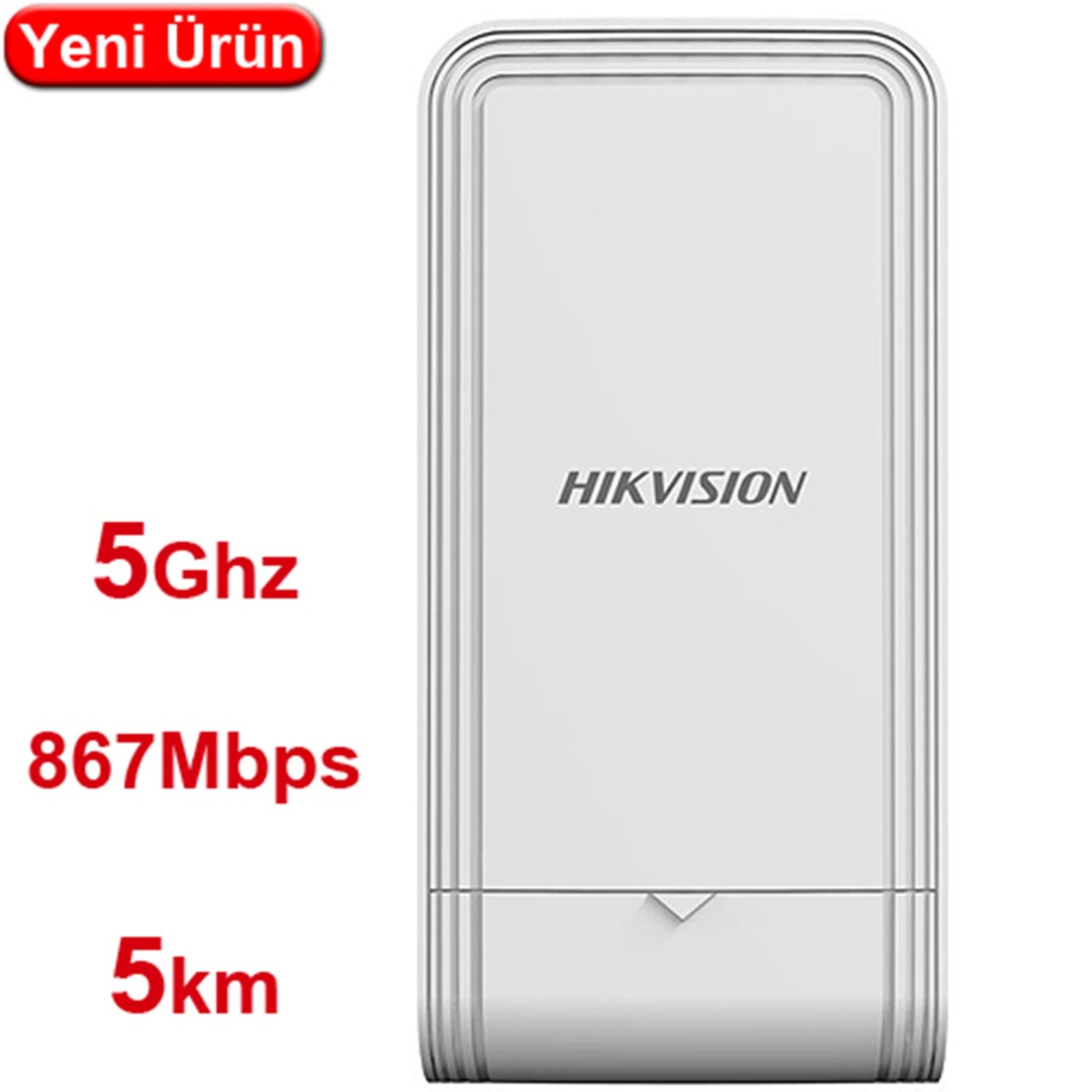

HIKVISION (DS-3WF02C-5AC/O) 5Ghz 867Mbps 5KM OUTDOOR WIRELESS ACCESS POINT

Aradığınız her şey tek platformda...

Giriş Yap Hesap Oluştur

info@yildizguvenlik.com.tr 0543 9641205

Arama

HIKVISION (DS-3WF02C-5AC/O) 5Ghz 867Mbps 5KM OUTDOOR WIRELESS ACCESS POINT

Henüz Değerlendirilmemiş

Stok Kodu

: E33079

Stok Miktarı

: 14 ADET

Whatsapp ile Sipariş

5Ghz 867Mbps 5km Outdoor Wireless CPE

All gigabit LAN ports
TDMA supported
Quick match through DIP switch
Visualized topology management
Up to 5 km wireless transmission distance

General
Product Dimensions (W × H × D) : 92 mm × 187 mm × 58 mm (3.62'' × 7.36'' × 2.28'')
Package Dimensions (W × H × D) : 132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
Net Weight : 0.307 kg (0.677 lb)
Gross Weight : 0.807 kg (1.779 lb)
Packing List : Wireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,Binding Tape × 2,Quick Start Guide ×1
Packing Method : Single unit packing
Working Temperature : -30 °C to 70 °C (-22 °F to 158 °F)
Working Humidity : 5% to 95% (no condensation)
Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
Storage Humidity : 5% to 95% (no condensation)
Installation Mode : Pole Mounting
Ingress Protection : IP55
Power Consumption : 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W

Wireless Parameter
Max. Transmission Rate of Air Interface : ≤ 867 Mbps
Wireless Standard : IEEE 802.11/a/n/ac
Working Frequency Band : 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz
Antenna Gain : 12 dBi
Antenna Angle : (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
Transmitting Power : 22 dBm (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity : -58±2 dBm@AC80-MCS9,-84±2dBm@AC80-MCS0
Throughput Rate : Point to point: Support up to 4-ch IPC (2MP) in Max. 5 KM distance and Max. 20 Mbps bandwidth,Point to point: Support up to 40-ch IPC (2MP) in Max. 1 KM distance and Max. 200 Mbps bandwidth,Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 1 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection

Hardware Parameter
Network Interface : 2 × 1000 Mbps RJ45 ports
LED Indicator : Power indicator,LAN indicator,Signal intensity indicator
Reset : Hardware resetting button
Power Supply : 12 VDC/1 A Passive PoE

Software Function
Application Function : TDMA,DFS,TPC,IFM,IPM
Channel Width : 20/40/80 MHz
Channel Selection : Auto/manual selection
Network Protocol : NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
Security Mode : WPA2-PSK
Security Mechanism : Wireless network name hidden
Management Method : Web,iVMS-4200,HCP
Upgrade : Web,iVMS-4200,HCP
System Log : Syslog,Control center information

Approval
EMC : CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
Safety : UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry : CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
Radio : EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,FCC Part 15.247
